Forward all electric stacker
2 ton forward-moving hydraulic electric stacker raises 3M all-electric forklift
The front-mounted electric electric pallet truck stacker gantry and fork can be telescopic and can be used for lifting and walking in tight spaces. Especially in some narrow corridors, elevators, assembly lines and other workplaces, it can fully reflect i- Price : -
- Min. Order : 1
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download
2 ton forward-moving hydraulic electric stacker raises 3M all-electric forklift
| model | LBCQD-120(C/H)-25-SB |
| Load (kg) | 2000 |
| Form of steel | C/H |
| Lifting height (mm) | 2500 |
| Frame static height (mm) | 1840 |
| After lifting the total height (mm) | 3260 |
| Load center distance (mm) | 500 |
| Before and after the tilt angle | 3/6 |
| Forward distance (mm) | 500 |
| Fork minimum clearance from the ground(mm) | 40 |
| Turning radius (mm) | 1500 |
| Minimum channel requirement (mm) | 2560 |
| Total length (No pedals) (mm) | 2260/2360 |
| Total body width (mm) | 1000 |
| Fork width (mm) | 210-680 |
|
Number of front/rear wheels (*=drive wheel ) |
2/2+1* |
| Front / rear wheel size (mm) | φ250*80/200*80/125*50 |
| Track (mm) | 1450 |
| Rear wheel track (mm) | 950 |
| Fork size (forging) mm | 1070*120*35 |
| Lower fork the height from the ground (mm) | 50-110 |
| Lifting speed (full load / no load) (m / s) | 0-0.12/0-0.2 |
| Falling speed (full load / no load) (m / s) | 0-0.2/0-0.28 |
| Driving speed (full load / no load) (m / h) | 5000/5500 |
| Maximum gradient (full load / no load) (°) | 5.0/8.0 |
| Tire | Polyurethane |
| Driving method | Standing steer type |
| Turn | Mechanical steering |
| Braking method | Electromagnetic brake |

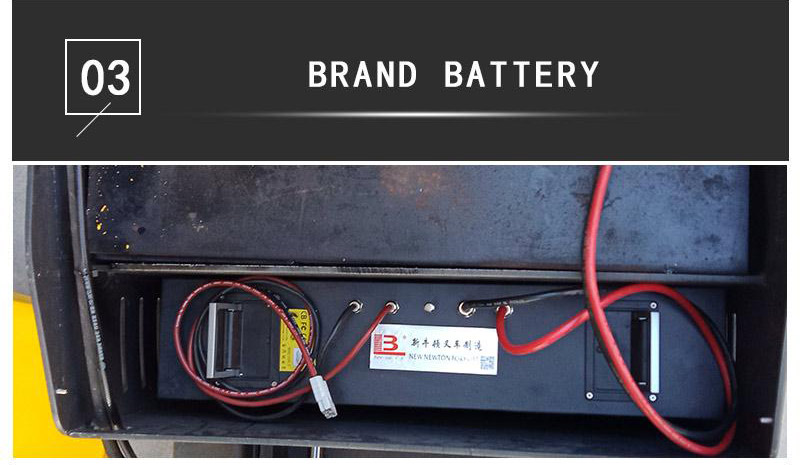

| Battery (V/AH) | 24/210-240 |
| Lift the motor | 3.3KW |
| Walking motor | 1.5KW |
| Hydraulic oil | 46# |
| Total Weight(KG) | ≈2700 |
| Noise level dB (A) | <70 |

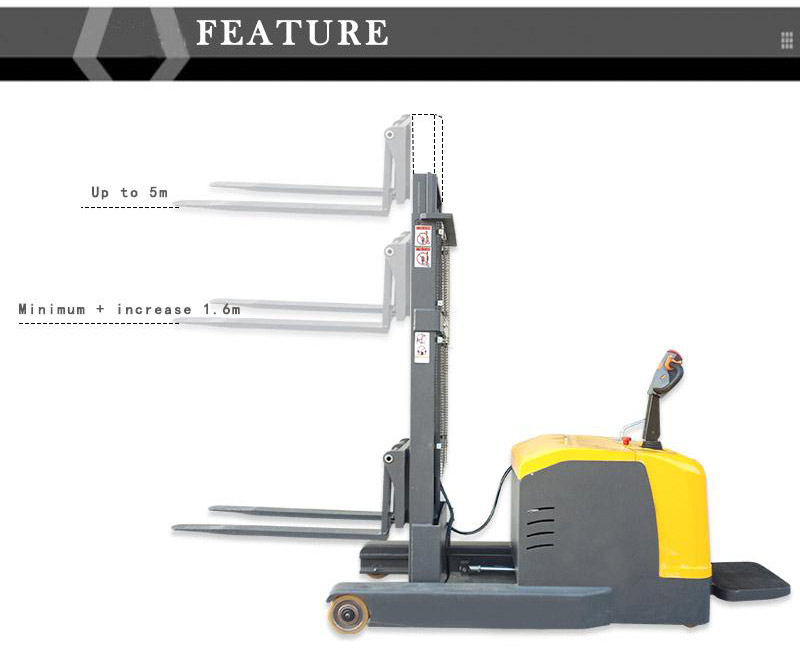

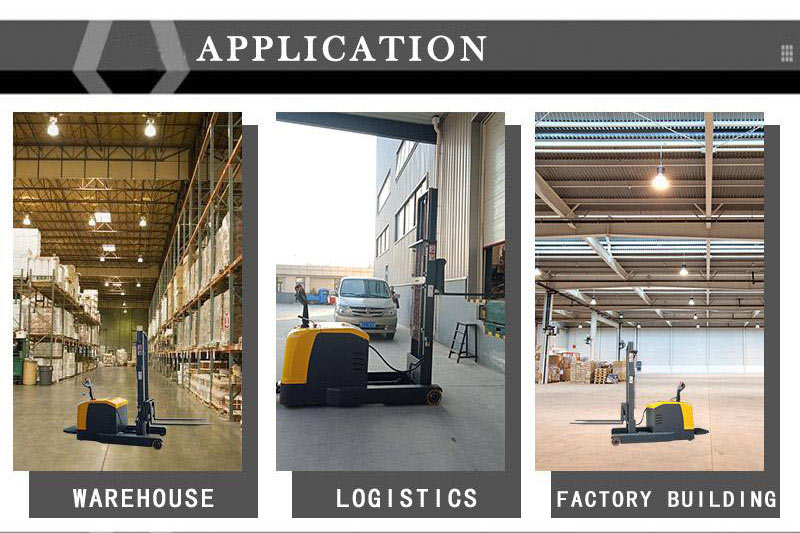

The front-mounted electric electric pallet truck stacker gantry and fork can be telescopic and can be used for lifting and walking in tight spaces. Especially in some narrow corridors, elevators, assembly lines and other workplaces, it can fully reflect its flexibility, tranquility and environmental performance. The forward-moving electric pallet stacker truck is suitable for heavy-duty and long-term cargo transfer conditions, which can greatly improve the efficiency of cargo handling and reduce labor intensity.
The front-mounted electric electric pallet truck stacker gantry and fork can be telescopic and can be used for lifting and walking in tight spaces. Especially in some narrow corridors, elevators, assembly lines and other workplaces, it can fully reflect its flexibility, tranquility and environmental performance. The forward-moving electric pallet stacker truck is suitable for heavy-duty and long-term cargo transfer conditions, which can greatly improve the efficiency of cargo handling and reduce labor intensity.

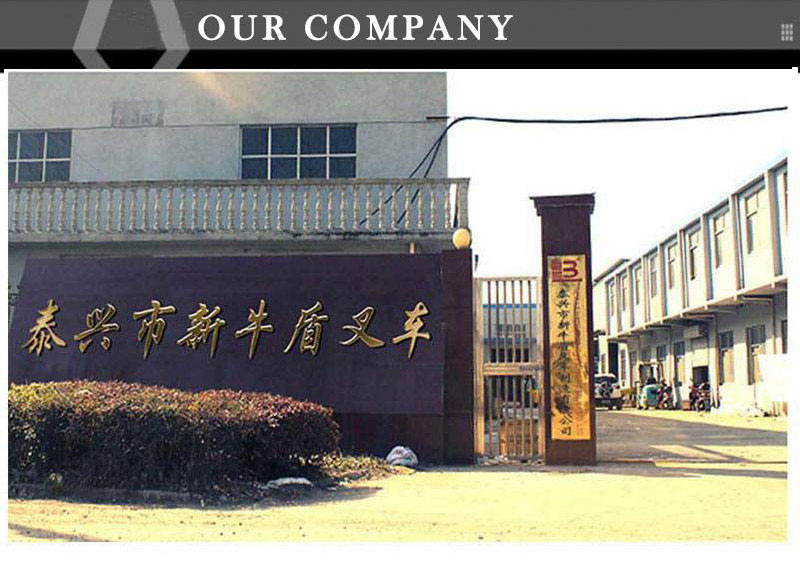

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.
1. How long is the warranty time?
10000 working hours or 12 month, whichever comes first.
2. How can I get the after-sales service?
The global service network is still under construction, but if you have any questions or need
professional support, you can contact us. We will try our best to solve your problem within 24
hours and arrange for the delivery of spare parts within 48 hours.
3. How about your warranty item?
We can support you with original spare parts, and email or telephone assistance in the following
days. If necessary, our experience engineer can go abroad to your place for technical support.
4. How about your product quality?
All our products are form the original manufactures and the quality is 100% guaranteed.
5. Can I be your agent in my country?
It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.
6. What information should I let you know if I want to get a quotation?
Lifting capacity Size Load Features Would be better if you have drawings of your piant.
7. What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
