Station-driven reach new forklift large-capacity battery power supply

The gantry of the battery operated forklift can be moved forward and backward for easy use. The reach truck new forklift is designed with a forkless leg for a wider range of applications, especially in warehouse rack environments.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

Station-driven reach new forklift large-capacity battery power supply

new forklift 3

new forklift 4

new forklift 5

new forklift 6

model unit LBCPD-20(C/H)-40-SB
Load (KG) 2000
Form of steel   C/H
Lifting height (mm) 4000

Frame static height

(mm) 1850
The maximum height of the gantry work (mm) 4500
Load center distance (mm) 500
Front suspension (mm) 130
Front axle load (full load\no load) (KG) 1170/420
Rear axle load (full load\no load) (KG) 860/3110
Front track (mm) 890
Rear track (mm) 612
Before and after the tilt angle (°) 3/6
Fork minimum clearance from the ground (mm) 55
Turning radius (mm) 1600
Minimum channel requirement (mm) 3120
Total length(No pedals) (mm) 2660
Total body width (mm) 1000
Body length (mm) 1700
Fork width (mm) 210-700
Fork size (forging) (mm) 1070*100*35
Lifting speed (full load\no load) (m / s) 1.4/1.0
Driving speed (full load\ no load) (m / h) 5500/5000
Maximum gradient (full load\ no load) (°) 10/6
Tire    (Polyurethane)
Driving method   (Standing steer type)
Braking method    (Electromagnetic brake)
Battery (V-AH) 24/120*2P
Lift the motor (KW) 3.3
Walking motor (KW) 1.5
Hydraulic oil   46#
Total weight (KG) ≈2550
Noise level dB (dB(A)) <70

types of forklift trucks

types of forklift trucks 1

types of forklift trucks 2

types of forklift trucks 3

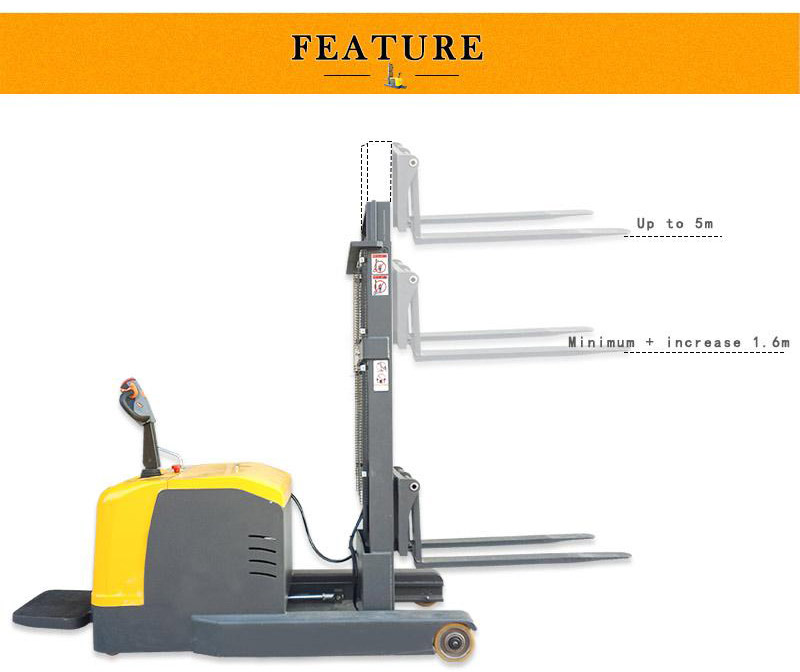

The gantry of the battery operated forklift can be moved forward and backward for easy use. The reach truck new forklift is designed with a forkless leg for a wider range of applications, especially in warehouse rack environments. The types of forklift trucks has a forward tilting function and is more user-friendly. The battery operated forklift adopts a high-powered motor, which is stable and stable, and uses a large-capacity battery for longer lasting use.

types of forklift trucks 4

types of forklift trucks 5

battery operated forklift

battery operated forklift 1

New Newton(Taizhou)forklift truck co.,ltd main products include forklifts, stackers, trucks, lifting platforms, etc. With beautiful appearance, high quality and all-round service, safe and reliable, and cost-effective products, it has been widely concerned and favored by domestic and foreign customers. The products have been exported to more than 50 countries and regions around the world. It has grown into a well-known warehousing and logistics vehicle manufacturer in China. Its product line has expanded from light and small handling vehicles to electric storage vehicles, and has taken a leading position in the mid-range and mid-to-high-end markets of industrial vehicles. With one-stop services such as consulting, ordering, and after-sales, we provide customers with a worry-free buying environment.

battery operated forklift 2

battery operated forklift 3

battery operated forklift 4

battery operated forklift 5

battery operated forklift 6

new forklift

new forklift 1



FAQ



1. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

2. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

3. Do you offer samples available?

Yes, samples are available. Sample lead time 3-5 days generally.

4. What’s the advantage of your company?

We are experienced manufacturers and overseas distributors. Our products have been exported to more than 110 countries. An independent research team focused on the design and production of material handling equipment. The professional service team will provide feedback to customers within 24 hours.

5. Why we can choose you?

Reliable - we are real companies, we strive for excellence

Professional - we provide the products you want

Factory - we have a factory, so the price is reasonable

Service - we have a strong sales team and after-sales team, so the service is very fast

6. How about the price? Can you make it cheaper?

The price depends on the item your demand (shape, size, quantity)

Beat quotation after receiving full description of the item you want

7. How can I get the after-service?

We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems, we also send the spare parts, but you should pay.

For our range pallet truck it is lifelong maintenance.
