Balanced heavy electric stacker

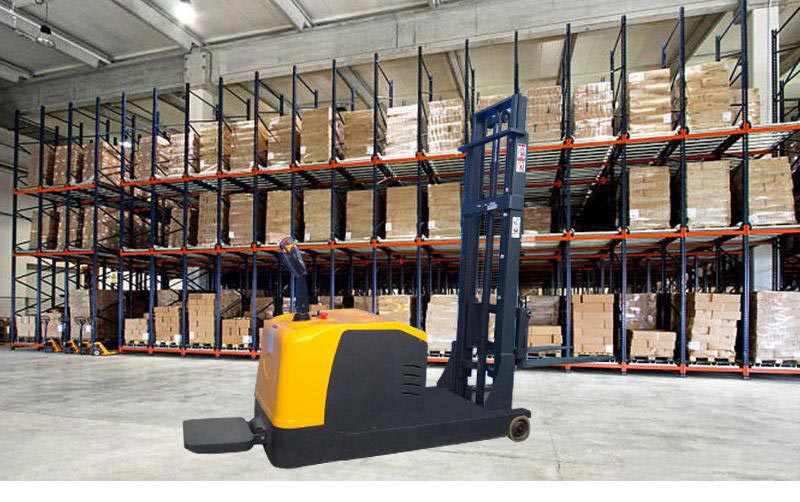

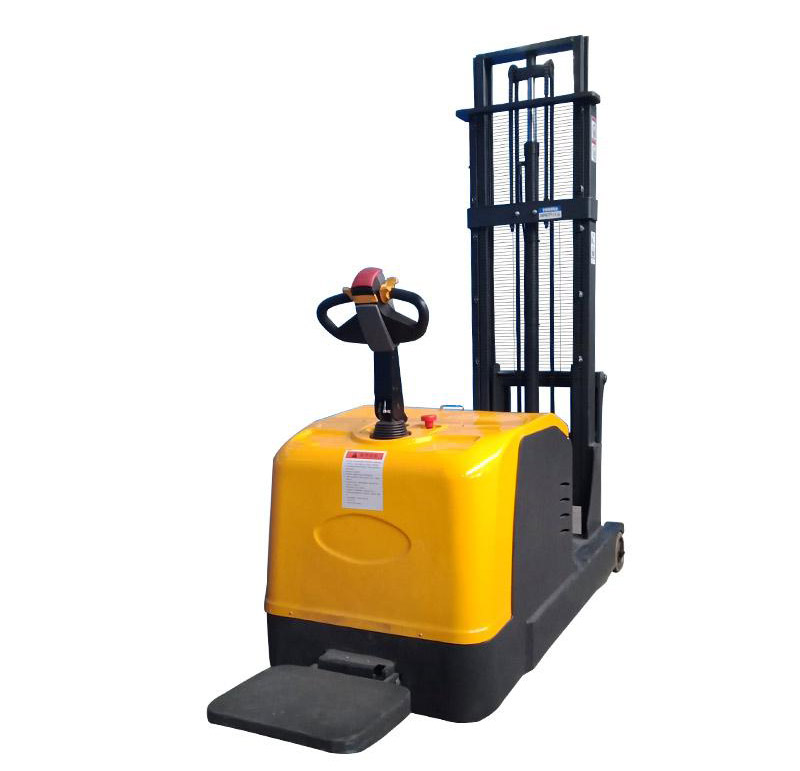

Counterweight full electric stacker Electric forklift 1ton2.5M

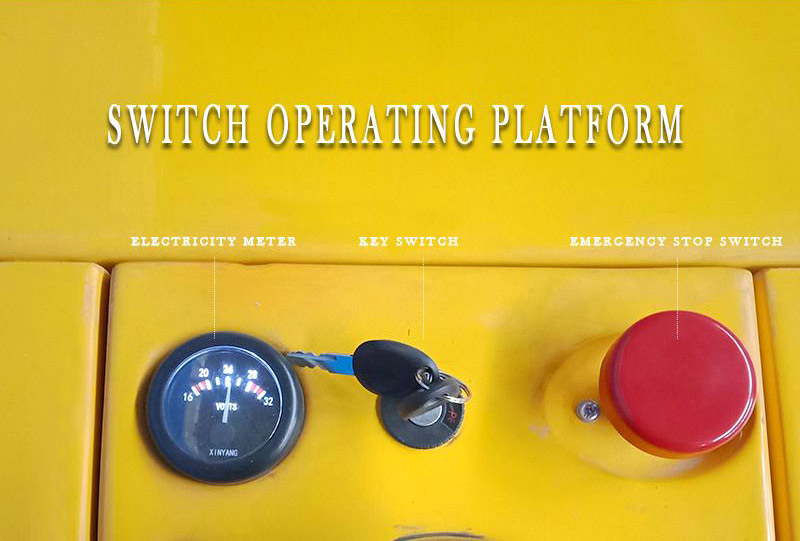

The electric counterweight forklift truck runs more smoothly, has a stable structure, is safe and reliable, and has a long service life. The console of the counterweight electric stackers has clear functions and simple operation.- Price : -
- Min. Order : 1

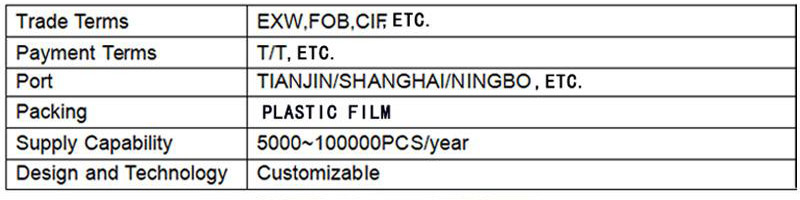

- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download

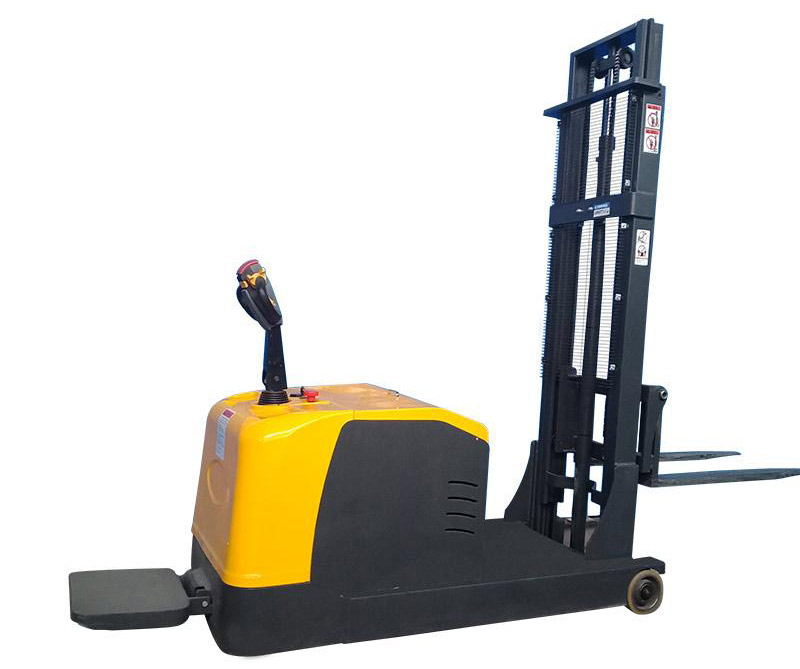

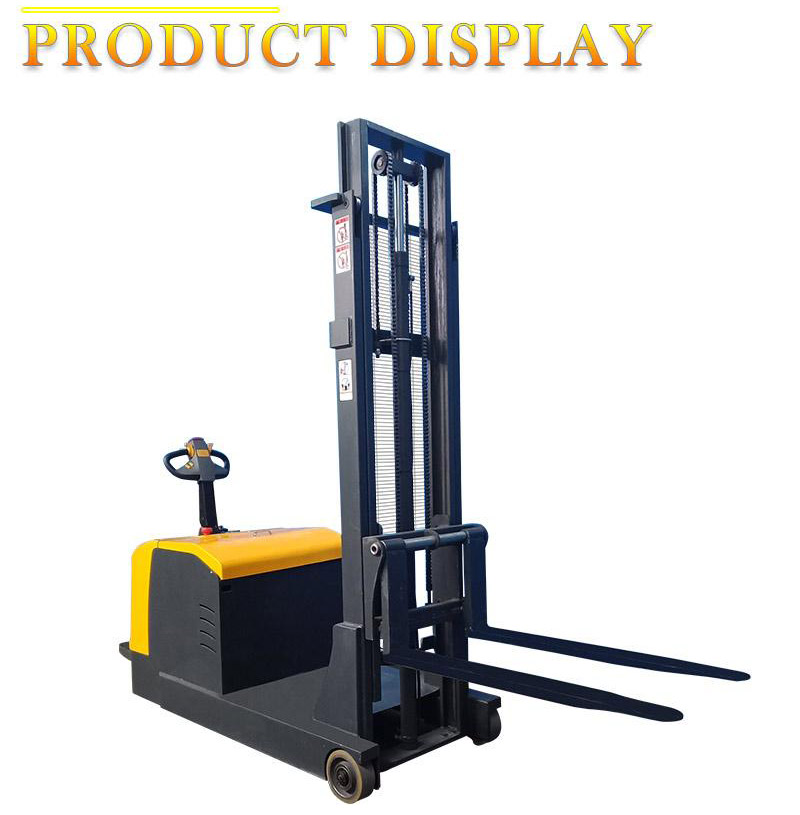

Counterweight full electric stacker Electric forklift 1ton2.5M
| model | LBCPD-10(C/H)-25-SB | |
| Load | (KG) | 1000 |
| Form of steel | C/H | |
| Lifting height | (mm) | 2500 |
| Frame static height | (mm) | 2014 |
| The maximum height of the gantry work | (mm) | 3500 |
| Load center distance | (mm) | 500 |
| Front suspension | (mm) | 130 |
| Front axle load (full load\no load) | (KG) | 1170/420 |
| Rear axle load (full load\no load) | (KG) | 860/3110 |
| Front track | (mm) | 890 |
| Rear track | (mm) | 612 |
| Before and after the tilt angle | （°） | 3/6 |
| Fork minimum clearance from the ground | (mm) | 55 |
| Turning radius | (mm) | 1600 |
| Minimum channel requirement | (mm) | 3120 |
| Total length(No pedals) | (mm) | 2660 |
| Total body width | (mm) | 1000 |
| Body length | (mm) | 1700 |
| Fork width | (mm) | 210-700 |
| Fork size (forging) | (mm) | 1070*100*35 |
| Lifting speed (full load\no load) | (m / s) | 1.4/1.0 |
| Driving speed (full load\ no load) | (m / h) | 5500/5000 |
| Maximum gradient (full load\ no load) | （°） | 10/6 |
| Tire | (Polyurethane) | |
| Driving method | (Standing steer type) | |
| Braking method | (Electromagnetic brake) | |
| Battery | （V-AH） | 24/120*2P |
| Lift the motor | （KW） | 3.3 |
| Walking motor | （KW） | 1.5 |
| Hydraulic oil | 46＃ | |
| Total weight | (KG) | ≈1550 |
| Noise level dB | （dB(A)） | ＜70 |

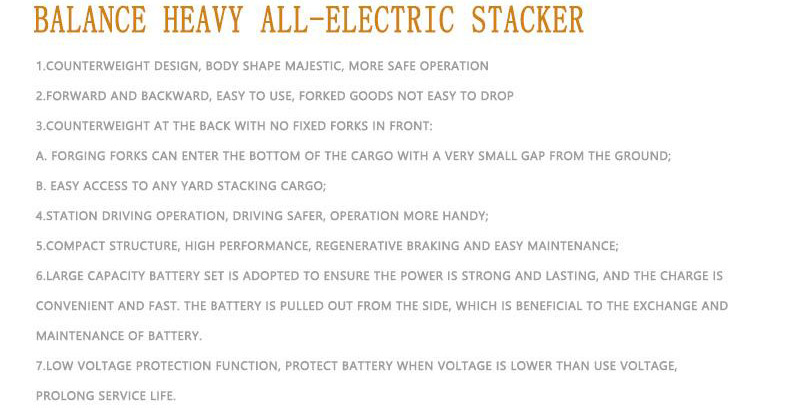

The electric counterweight forklift truck runs more smoothly, has a stable structure, is safe and reliable, and has a long service life. The console of the counterweight electric stackers has clear functions and simple operation. Using high-quality chains, the goods are lifted smoothly and with low noise.
Counterbalance Walkie Stacker
Electric Pallet Lift Stackers
Counterbalance Pallet Stackers For Sale
The electric counterweight forklift truck runs more smoothly, has a stable structure, is safe and reliable, and has a long service life. The console of the counterweight electric stackers has clear functions and simple operation. Using high-quality chains, the goods are lifted smoothly and with low noise.
Counterweight full electric stacker Electric forklift 1ton2.5M
The electric counterweight forklift truck runs more smoothly, has a stable structure, is safe and reliable, and has a long service life. The console of the counterweight electric stackers has clear functions and simple operation. Using high-quality chains, the goods are lifted smoothly and with low noise.

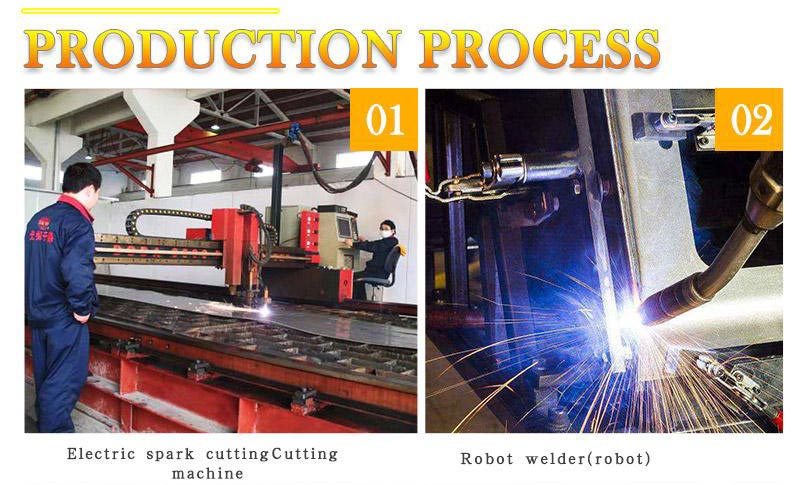

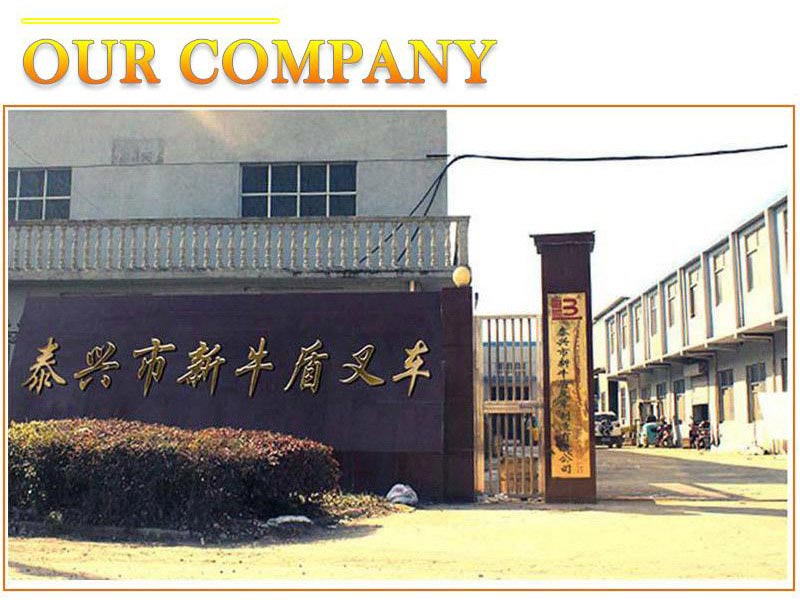

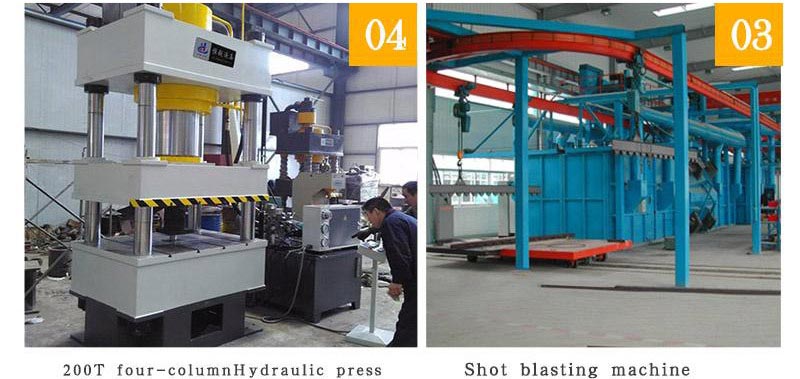

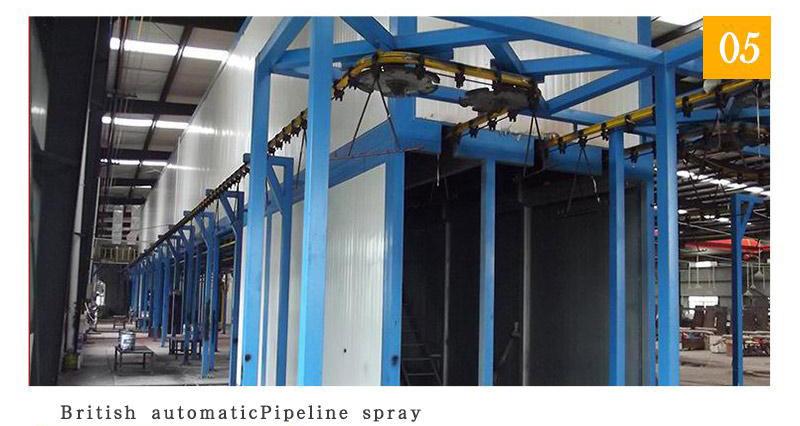

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

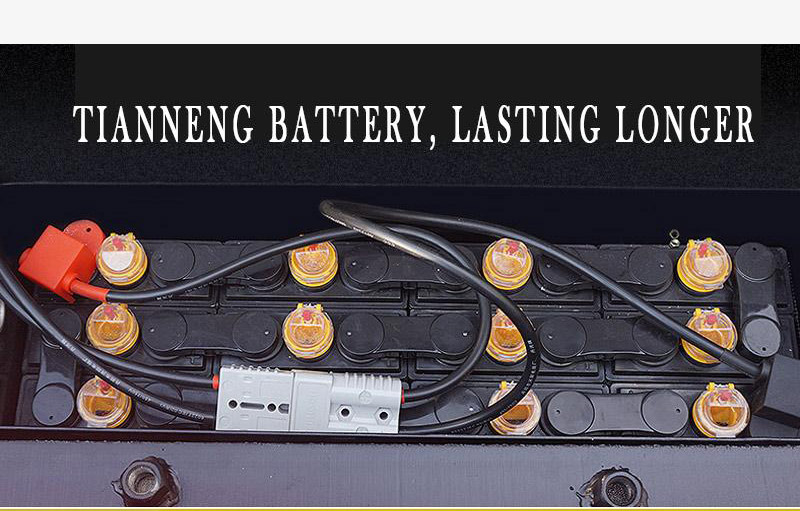

1. How about the battery working life?
Our battery is form DIN standard battery ( Germany technology), can be working 6 years
without any problem.
2. Can you customize and design as the clients requirement?
New Newton will try its best to meet all kinds of clients special requirements. The colors can be
painted as clients need.
3. How long is the warranty of your products?
Normally 1 year or 10000 working hours. Details to see the New Newton warranty policy for
each model.
4. Can you produce the products labeled with the client’s brand?
With the authorization of the brand,we can OEM for our clients.
5. Is the operation procedure easy to learn?
Every step of our company’s products is very easy to learn, and considering the unskilled
operation, we have added emergency protection measures to each product to ensure the
absolute safety of the user.
6. Does the load-bearing effect bear the weight according to the product identification?
Our products are only marketed after quality inspection, so the products must conform to the
product identification load.
7. How long after the order is placed?
We will respond to your response within 24 hours after you place your order, and deliver the
goods within 7days after the order is placed. Please contact customer service for the specific
arrival time. We will give you the corresponding time according to your region and logistics
status.
