Portable 150KG hydraulic small hydraulic lift can customized according to height

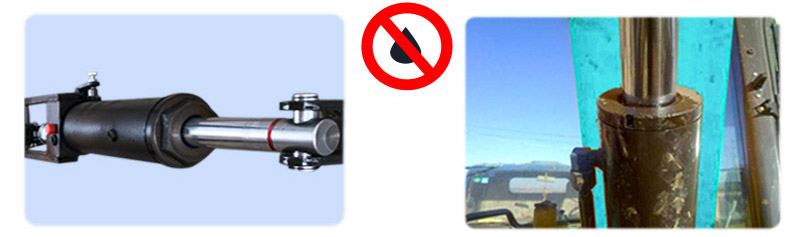

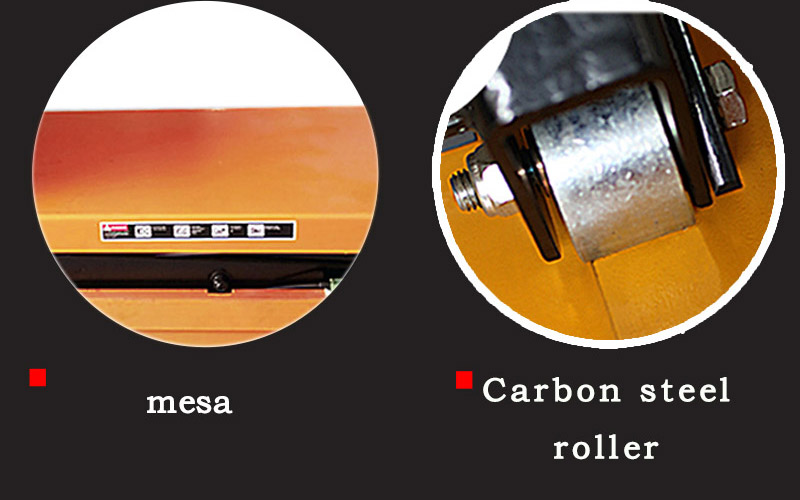

The hydraulic double scissor lift table has a rounded countertop design to ensure the safety of the user. The hydraulic portable hydraulic lift uses a hydraulic integral pump for easier maintenance.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
  1. Video
  2. Description
  3. Reviews
  4. Download

Portable 150KG hydraulic small hydraulic lift can customized according to height

New Newton (Taizhou) forklift truck co.,ltd main products include forklifts, stackers, trucks, lifting platforms and so on. The company has grown into a well-known warehousing, logistics and handling vehicle manufacturer in China. Its product line has expanded from light and small handling vehicles to electric storage vehicles, and has taken a leading position in the mid-range and mid- to high-end markets of industrial vehicles. The company has developed a number of new products with independent intellectual property rights. The technology level has reached the domestic leading level, and the products with beautiful appearance, high quality and all-round service, safe and reliable, and high cost performance have been widely concerned and favored by domestic and foreign customers. The products have been exported to more than 50 countries and regions around the world.

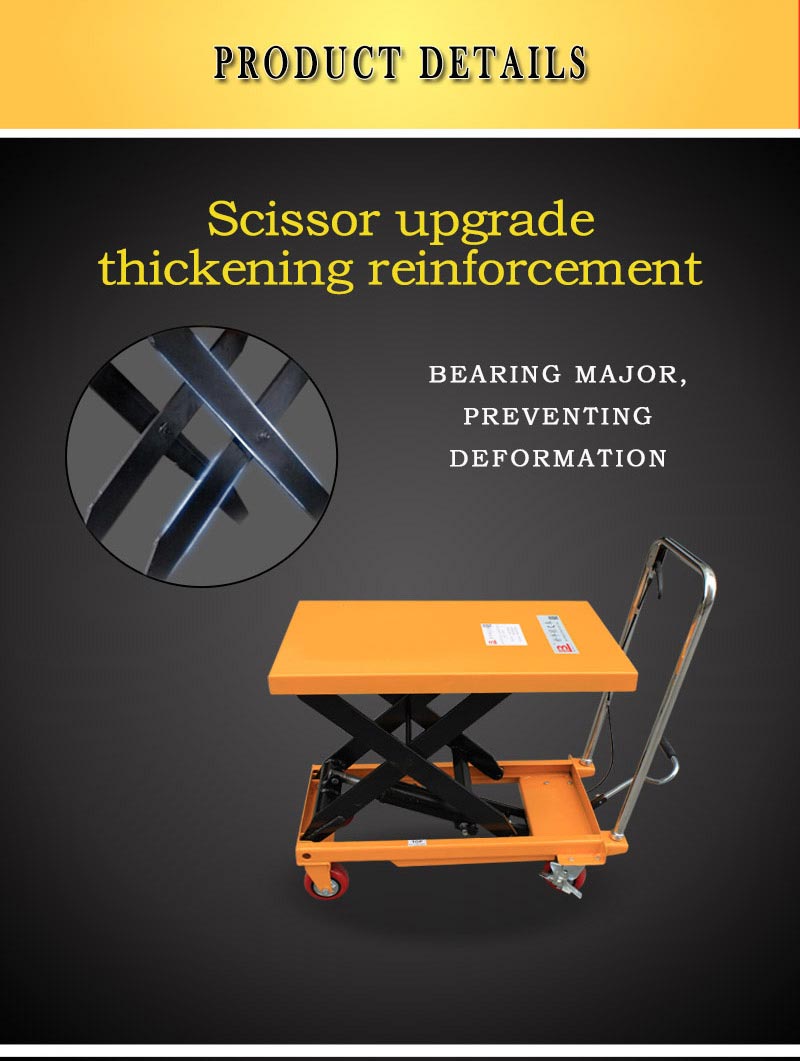

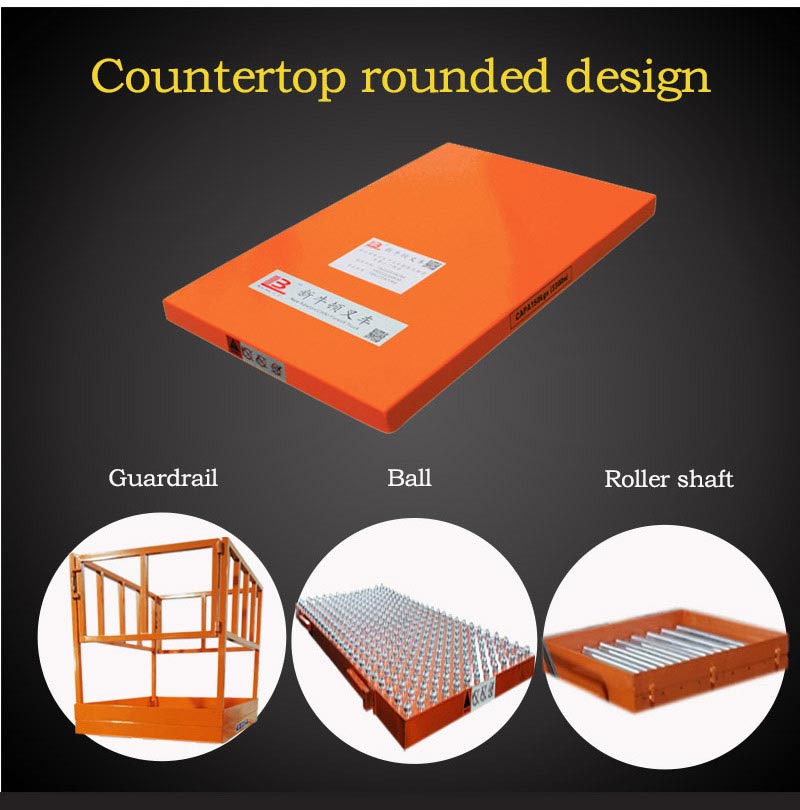

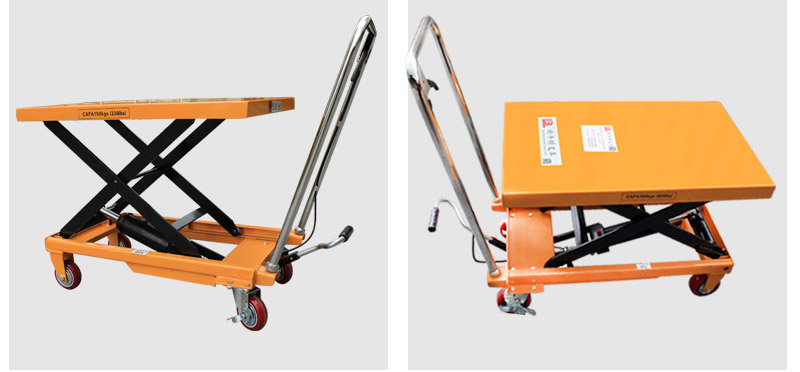

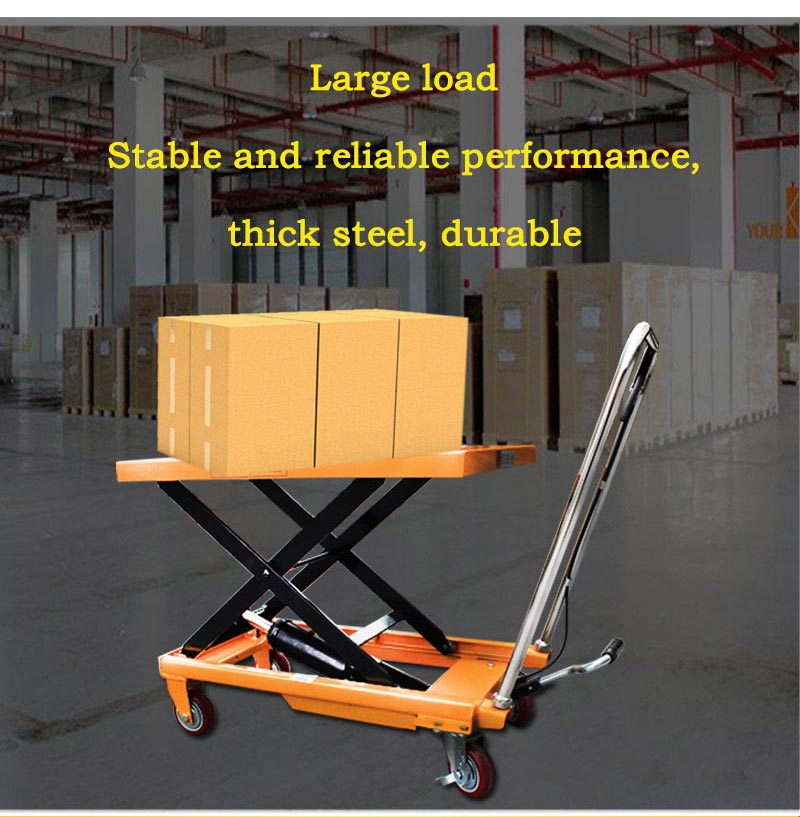

The hydraulic double scissor lift table has a rounded countertop design to ensure the safety of the user. The hydraulic portable hydraulic lift uses a hydraulic integral pump for easier maintenance. The hydraulic small hydraulic lift adopts the hand pinch and descending mode, which is more convenient to operate and the handle is detachable and foldable. The hydraulic double scissor lift table can be customized with a single cut and double cut, and the height can be selected freely. The hydraulic portable hydraulic lift is assembled with polyurethane wheels for quieter transport.

model LBSPT150/300/500/800/1000

LBSPTS150/350A/350AA

/D350/500/800/1000/1500

Rated load (KG) 150/300/500/800/1000

150/350/350/350

/500/800/1000/1500

Wheeldiameter(mm) Φ100/125/125/150/150

100/125/125/125

/125/125/150/150

Number of wheels (directional/ universal) 2/2 2/2

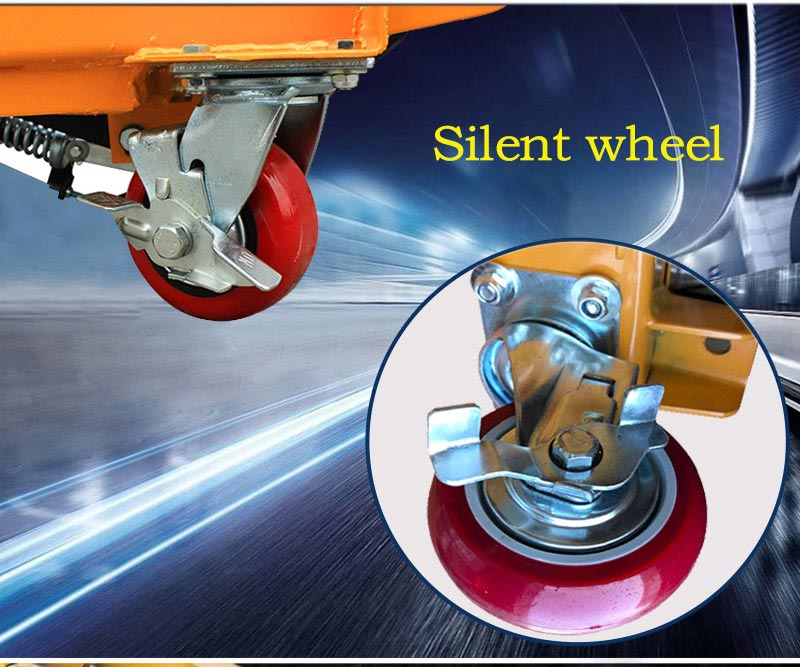

Wheel Polyurethane Polyurethane

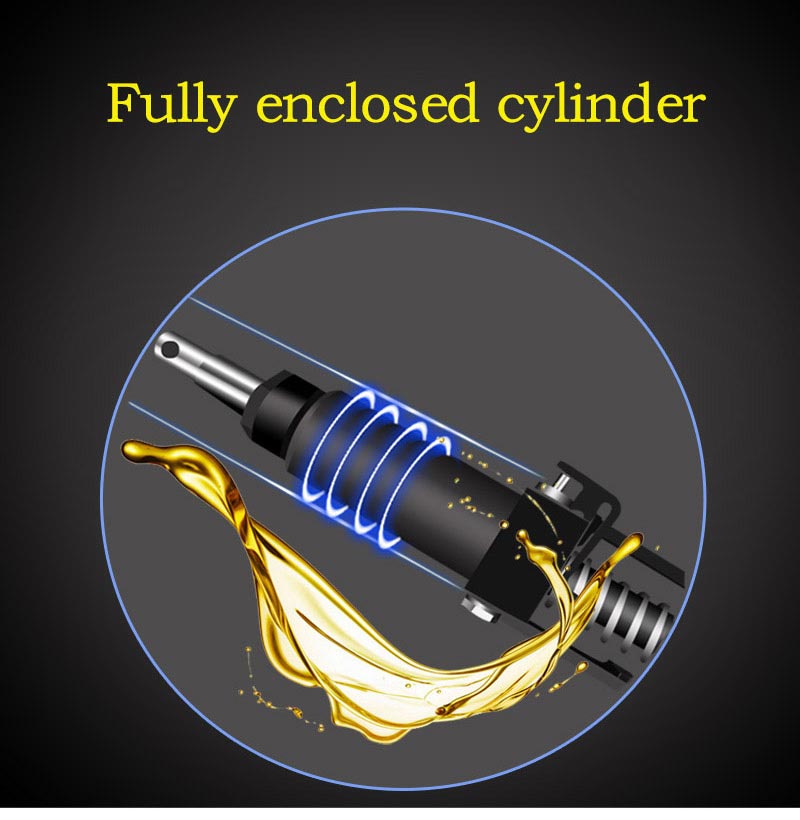

Number of cylinders 1 1
Braking method Mechanical Mechanical
Lifting mode Foot Foot
Falling mode Manual Manual
Max. height (mm) 720/900/900/1000/1000 1260/1300/1500/1580/1500/1500/1700/1700
Min. height (mm) 210/280/280/415/415 302/350/350/350/360/450/500/500
Table Dimensions(mm)

700*450*35/815*500*50

/815*500*50/1016*510*60

/1016*510*60

700*450*35/905*500*50

/905*500*50/900*700*50

/905*500*50/1200*610*60

/1200*610*80/1200*610*80

Packing size (mm)

820*470*230/900*510*310

/900*510*310/1140*570*450

/1140*570*450

820*470*325/1010*520*380

/1010*520*380/1010*820*380

/1020*520*360/1380*610*460

/1370*610*500/1370*610*500

Load in 20’Container(PCS) ≈192/144/144/80/80 144/100/100/82/132/60/52/52
Weight (kg) 40/74/82/112/112 50/106/106/120/110/150/225/225
Cylinder diameter (mm) 35/40/40/40/40 35/40/40/40/40/40/40/40
Handle height from the ground (mm) 810/970/970/990/990 810/970/970/970/980/980/1000/1000

The hydraulic double scissor lift table has a rounded countertop design to ensure the safety of the user. The hydraulic portable hydraulic lift uses a hydraulic integral pump for easier maintenance. The hydraulic small hydraulic lift adopts the hand pinch and descending mode, which is more convenient to operate and the handle is detachable and foldable. The hydraulic double scissor lift table can be customized with a single cut and double cut, and the height can be selected freely. The hydraulic portable hydraulic lift is assembled with polyurethane wheels for quieter transport.

FAQ

1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

 3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

  4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity Size Load Features Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
