semi electric stacker

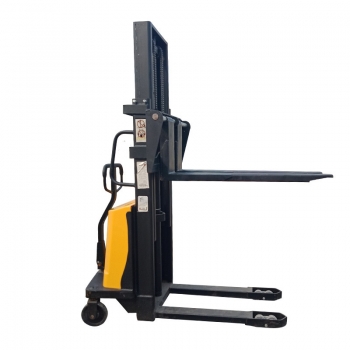

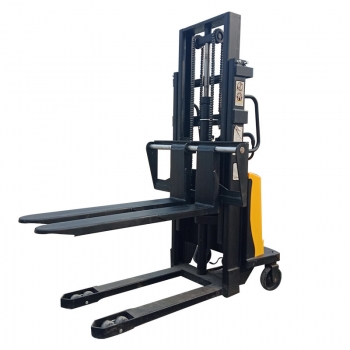

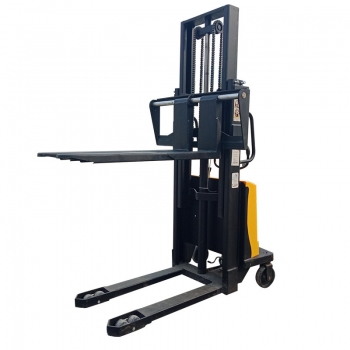

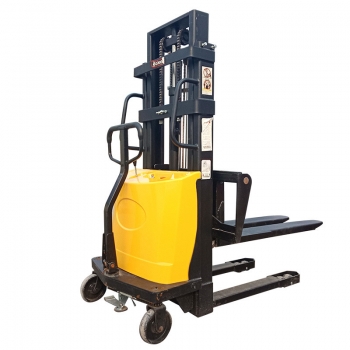

1Ton Semi electric stacker automatic lifting stacker loading and unloading truck
1T 3.5M Semi-electric stacker automatic lifting stacker loading and unloading truck, suitable for large and small cargo elevators, commodity supermarkets and warehouses. Theelectric stacker singapore has high stability.- Price : -
- Min. Order : 1

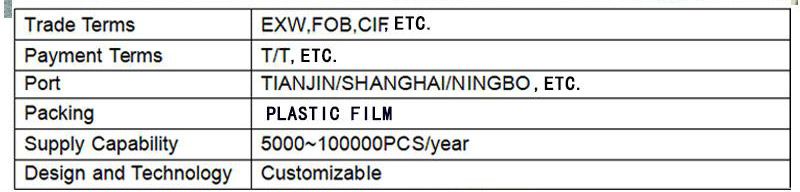

- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download

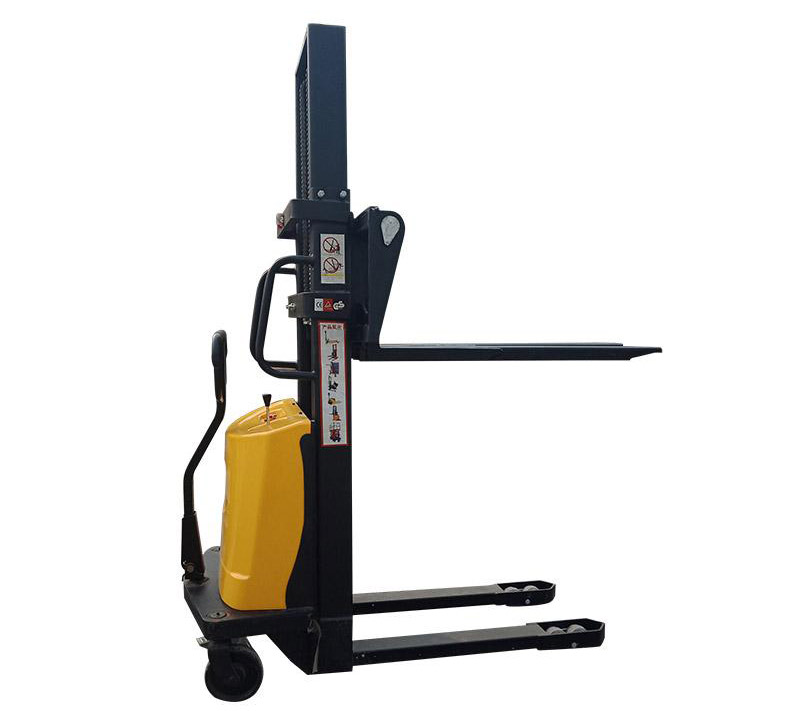

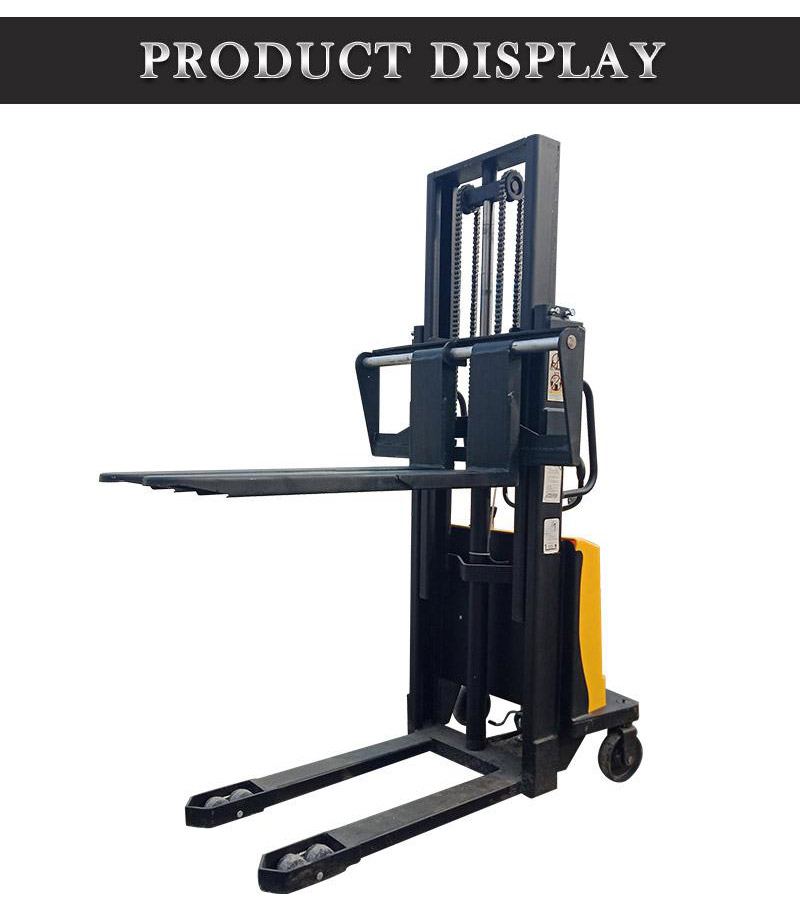

1T 3.5 M Semi-electric stacker automatic lifting stacker loading and unloading truck
| model |
A/LBBDD-10 (C)-35 |
| Load (kg) | 1000 |
| Form of steel | C |
| Material |
Q235 |
| Drive mode/driving method | Manual /walking |
| Load center distance (mm) | 500 |
| Axle load(before/after full load)kg | 611/1319 |
| Axle load(before/after no load)kg | 325/105 |
| number of front /rear wheels (X=drive) | 2/2 |
| Front track(mm) | 720 |
| Rear track(mm) | 520 |
| Lifting height (mm) | 3500 |
| Frame static height (mm) | 2340 |
| Maximum height of gantry operation (mm) | 3910 |
| Load center distance (mm) | 500 |
| Fork minimum clearance from the ground(mm) | 40 |
| Turning radius (mm) | 1425 |
| Minimum channel requirement (mm) | 2305 |
| Total length(mm) | 1735 |
| Total body width (mm) | 800 |
| Fork width (mm) | 320-1000 |
| Fork size (mm) |
1000*160*50 |
| Lifting speed (full load / no load) (mm / s) | 80/100 |
| Falling speed (no load / full load)(mm/s) | 120/150 |

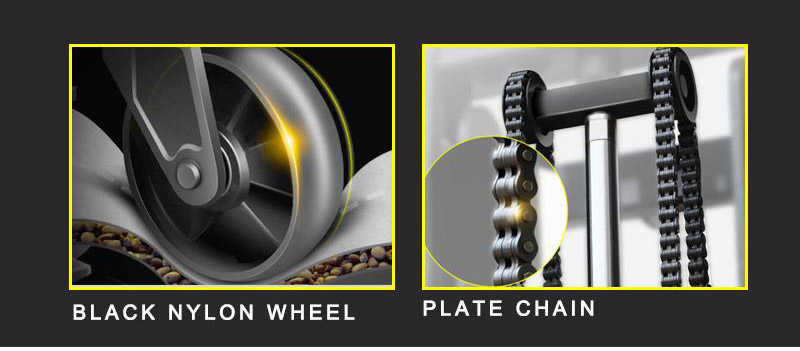

| Wheel | Nylon wheel |
| Wheel Size (Front / Rear) (mm) | Φ180*50/φ80*70 |
| Driving method | walk |
| Drive mode | Manual |
| Lifting method |
Putt |

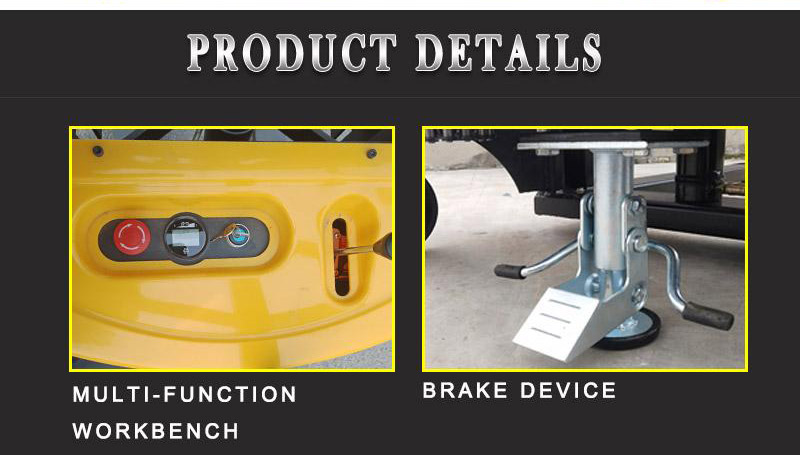

| Braking method | mechanical |
| Battery (V/AH) |
12/80 |
| Lift the motor | 1.6KW |
| Hydraulic oil | 46# |
| Total Weight(KG) | ≈380 |
| Battery size(mm) | 360*70*250 |
| Noise level dB (A) | <70 |

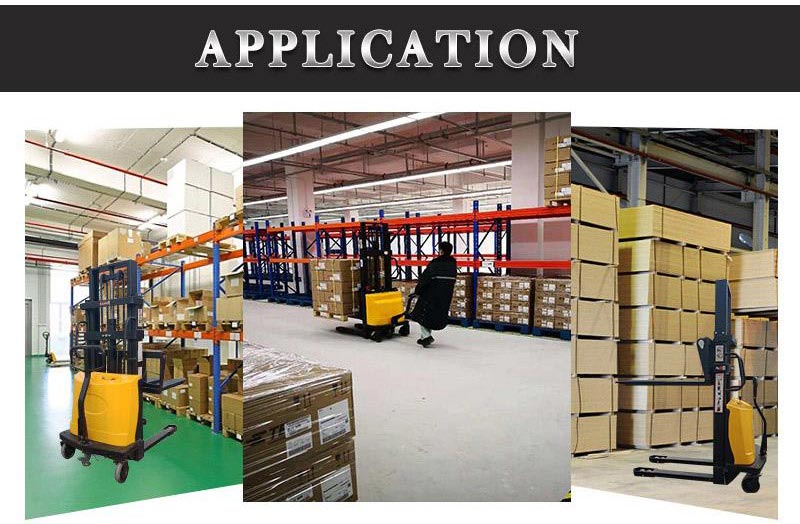

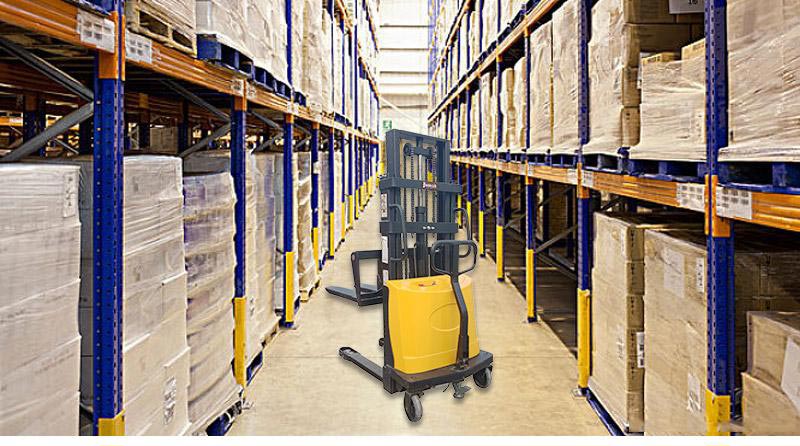

1T 3.5M Semi-electric stacker automatic lifting stacker loading and unloading truck, suitable for large and small cargo elevators, commodity supermarkets and warehouses. Theelectric stacker singapore has high stability, energy saving and environmental protection. The mini pallet stacker is easy to operate and meets the handling needs.
1T 3.5M Semi-electric stacker automatic lifting stacker loading and unloading truck, suitable for large and small cargo elevators, commodity supermarkets and warehouses. Theelectric stacker singapore has high stability, energy saving and environmental protection. The mini pallet stacker is easy to operate and meets the handling needs.

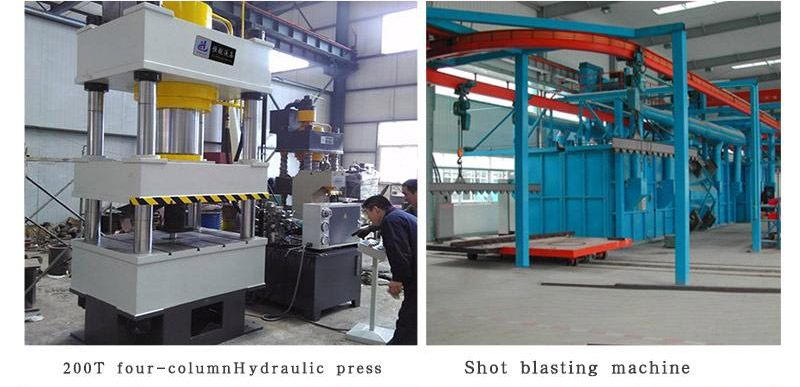

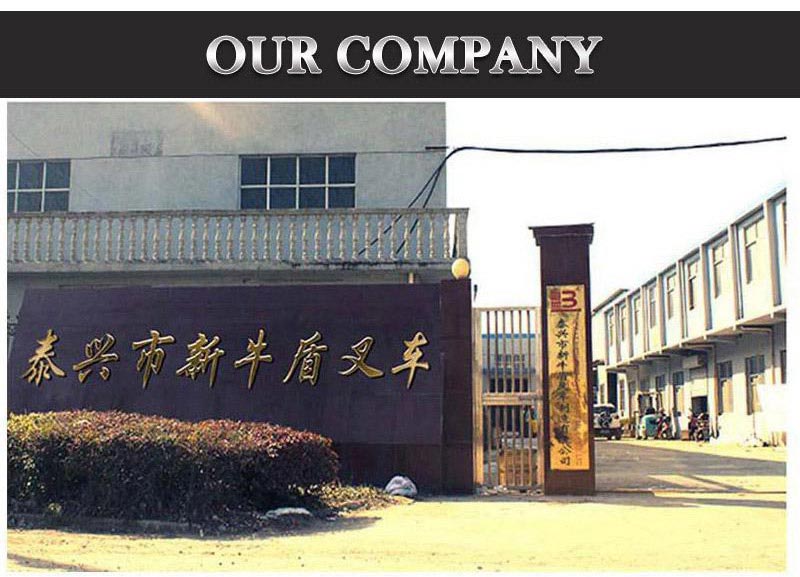

NEW NEWTON(TAIZHOU)FORKLIFT TRUCK CO. TLD is located in Taixing City, Jiangsu Province. It covers an area of about 4,000 square meters and has about 20 high-tech talents. It has more than 15 years of experience in storage equipment and has large-scale automatic assembly line equipment. It is specialized in electric storage equipment and forklifts. A global trading company that designs, manufactures and services, specializing in electric forklifts and vans. Strategic cooperation with nearly 15 large-scale commercial and logistics companies at home and abroad. The company has passed the ISO quality system international standard certification; obtained the "GS" and "CE" certification and the "TX" certification for various products; it has a number of patents granted by the State Intellectual Property Office. It can produce 1 million products per year and has served more than 1000 customers worldwide. It can provide customers with “one-stop” services including design, manufacturing, testing and assembly. After 5475 days, our products have been praised as “0” by customers. "Safety accident", "0 emission energy saving", with "9000H quality assurance" and "7 * 24H after-sales service" high-quality products. The company regards “letting manpower to be a history” as our driving force. On this basis, we are constantly pursuing innovation and continuous breakthrough to provide more commercial value and environmental protection power storage equipment for the global market. NEW NEWTON has been widely received and favored by domestic and foreign customers for its beautiful appearance, high quality and comprehensive service, safe and reliable, and cost-effective products. The products have been exported to many countries and regions around the world. The international, professional and green standards have become the most respected forklift brand in the world. Our electric forklifts use zero discharge and zero pollution. The first time we truly solve the environmental problems of the forklift industry, it is especially suitable for the high environmental protection requirements of food, medicine, supermarket, cold chain, airport and other industries.
1. How long is the warranty time?
10000 working hours or 12 month, whichever comes first.
2. How can I get the after-sales service?
The global service network is still under construction, but if you have any questions or need
professional support, you can contact us. We will try our best to solve your problem within 24
hours and arrange for the delivery of spare parts within 48 hours.
3. How about your warranty item?
We can support you with original spare parts, and email or telephone assistance in the following
days. If necessary, our experience engineer can go abroad to your place for technical support.
4. How about your product quality?
All our products are form the original manufactures and the quality is 100% guaranteed.
5. Can I be your agent in my country?
It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.
6. What information should I let you know if I want to get a quotation?
Lifting capacity
Size
Load
Features
Would be better if you have drawings of your piant.
7. What about the lead time for mass production?
Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date.
