Heavy-duty full electric pallet truck with stable performance for heavy loads
double electric pallet jack.jpg
electric high lift pallet jack.jpg
electric walkie pallet jack 1.jpg
electric walkie pallet jack.jpg

Heavy-duty full electric pallet truck with stable performance for heavy loads

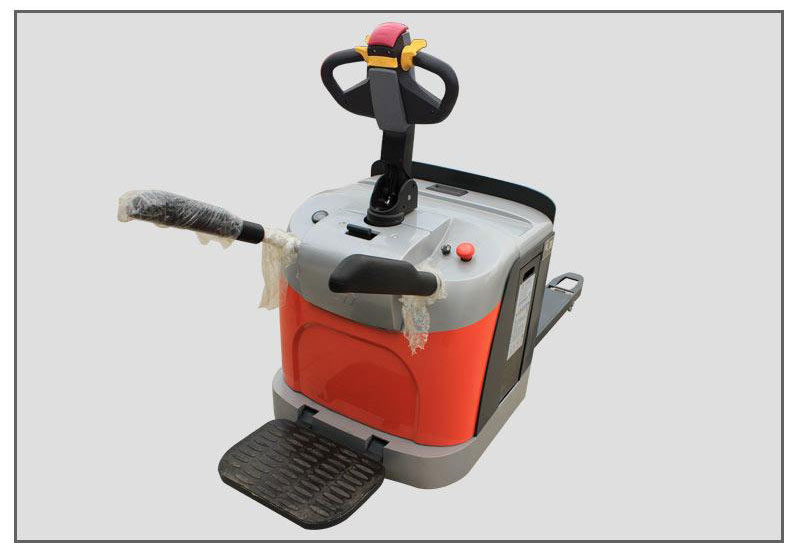

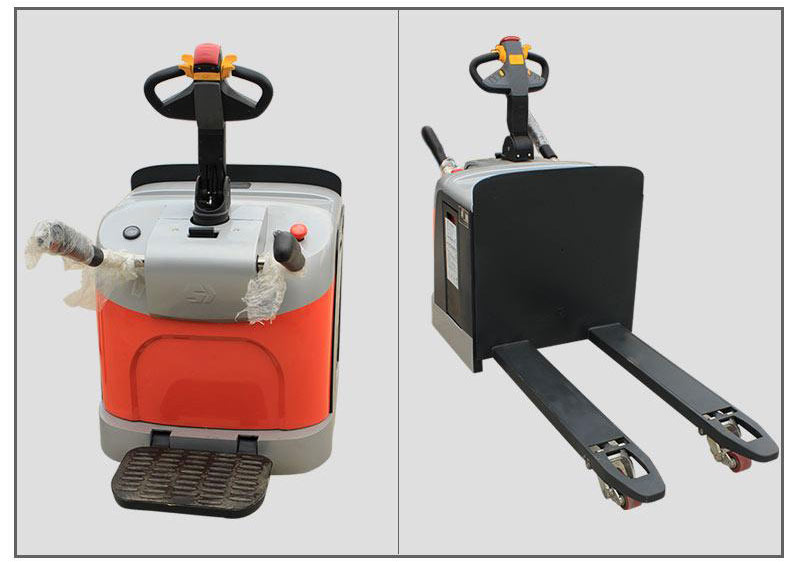

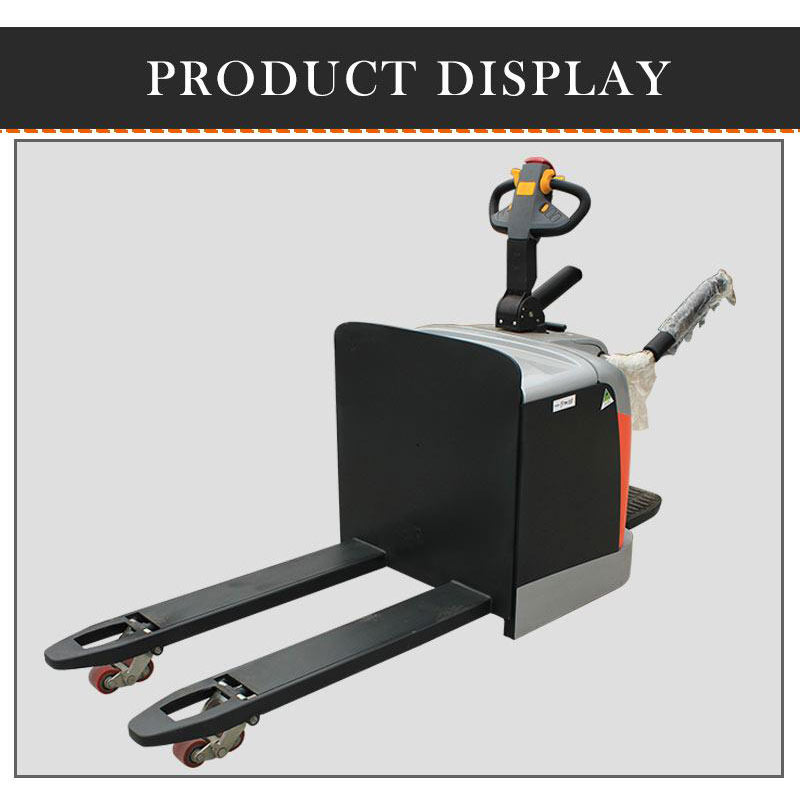

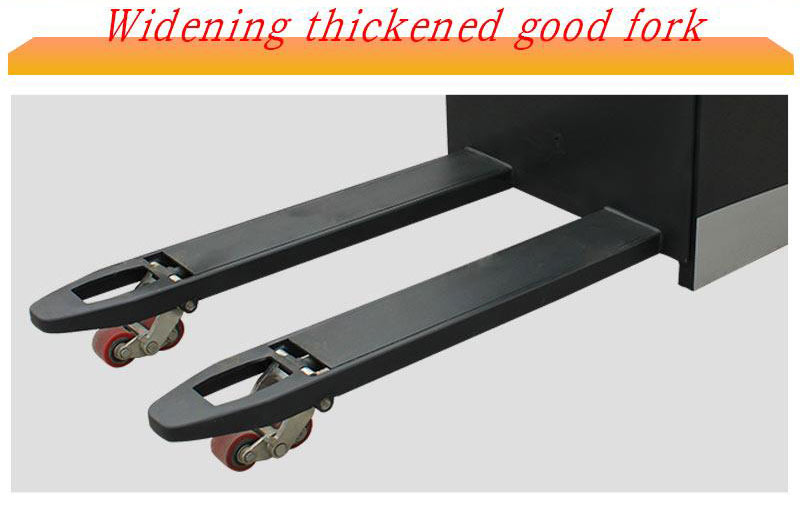

The heavy-duty all electric high lift pallet jack with stable performance is suitable for large load. The electric walkie pallet jack adopts a fork that widens and strengthens the steel bar. It has strong bearing capacity and stable lifting.

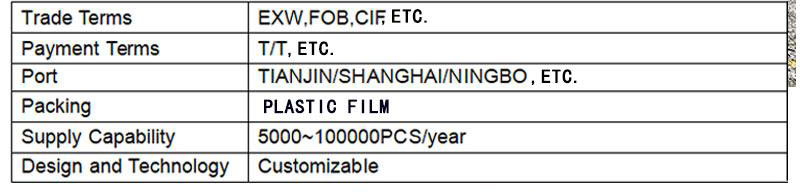

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

electric high lift pallet jack 6

model

LBCBD-20/25/30/40-540/685-SB

CBD-20/25/30/40-540/685-SB

Load (kg) 2000/2500/3000/4000
Maximum fork height from the ground (mm)

210

195

Fork down the surface from the ground (mm)

85

<\90

Load center distance (mm) 600
Wheelbase center (mm)

1305/1355

1350

Fork minimum clearance from the ground(mm)

30

20

Turning radius (mm)

1730/1770

2200

Minimum channel requirement (mm)

2120/2170

2400

Total body width (mm)

800

820

Total body length (mm)

1920/1970

1880

Total body height (include handle)/(exclusive handle) (mm) 955/1350
Length of wagon (mm)

790

680

Fork width (mm)

540/685

550/685

Fork size ( mm)

1150*185*55/1200*185*55

1200*180*60

Lifting speed (full load / no load) (mm/ s)

60/56

35/23

Falling speed (full load / no load) (mm/ s)

57/59

30/38

Driving speed (full load / no load) (km / h)

8/6

5.5/4.5

Maximum gradient (full load / no load) (mm / s)

7/5

8/5

Size of wheel (front /rear/ balance) (mm) 250*80/80*60/125/50
Number of front/rear wheels (x=drive 4/2+x
Front track (mm) 505
Rear track (mm)

700

690

Tire Polyurethane
Driving method Station drive
Braking method Electromagnetic brake

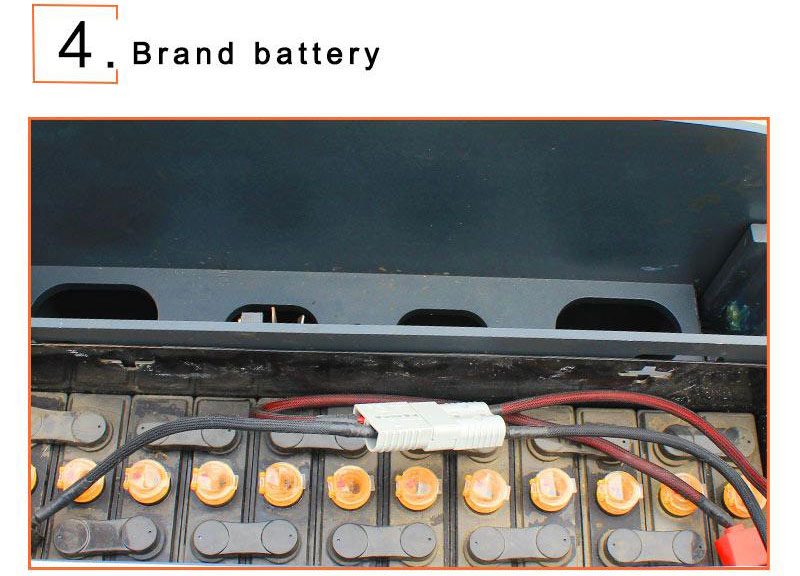

Battery (V/AH) 24V/210AH
Battery weight (kg)

260

120

Lift the motor

AC 2KW

DC 2.2KW

Walking motor

AC 1.5KW

DC 1.2KW

Hydraulic oil 46#
Total Weight(KG)

≈790

≈680

Noise level dB (A) <70

electric high lift pallet jack 7

electric walkie pallet jack

electric walkie pallet jack 2

electric walkie pallet jack 3

electric walkie pallet jack 4

electric walkie pallet jack 5

The heavy-duty all electric high lift pallet jack with stable performance is suitable for large load. The electric walkie pallet jack adopts a fork that widens and strengthens the steel bar. It has strong bearing capacity and stable lifting.

electric walkie pallet jack 6

electric walkie pallet jack 7

double electric pallet jack

double electric pallet jack 1

The heavy-duty all electric high lift pallet jack with stable performance is suitable for large load. The electric walkie pallet jack adopts a fork that widens and strengthens the steel bar. It has strong bearing capacity and stable lifting.

double electric pallet jack 2

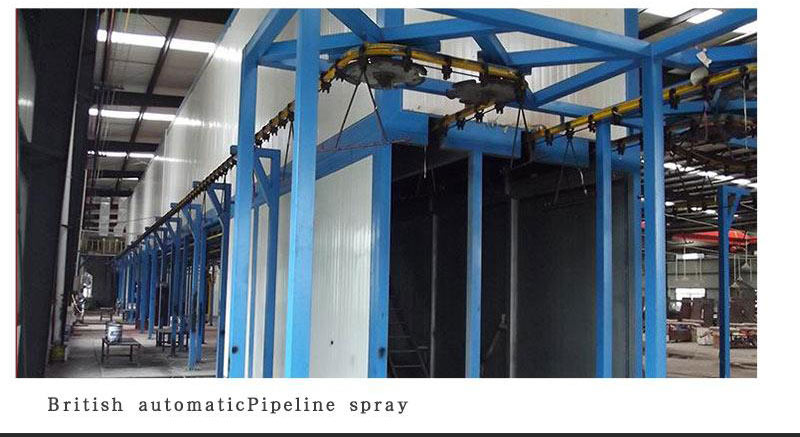

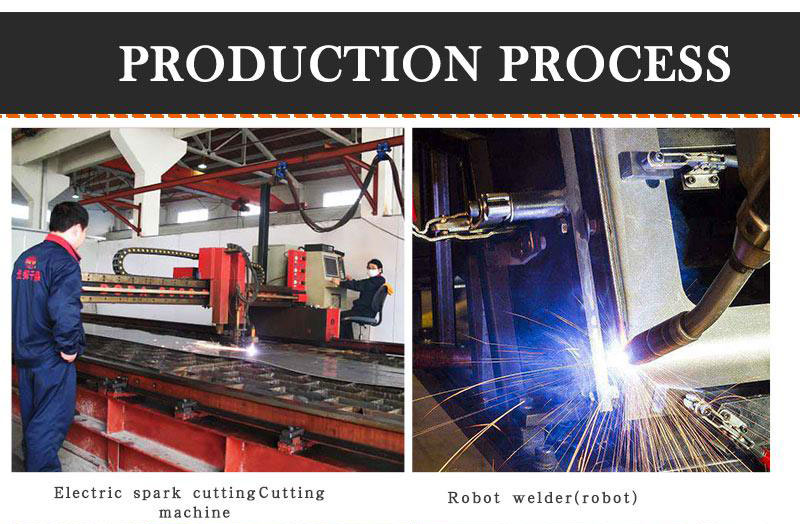

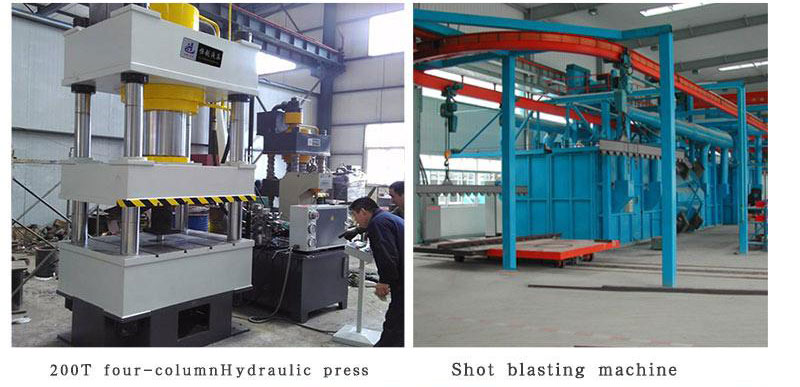

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd.  The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

double electric pallet jack 3

double electric pallet jack 4

double electric pallet jack 5

double electric pallet jack 6

double electric pallet jack 7

electric high lift pallet jack

electric high lift pallet jack 1

electric high lift pallet jack 2

electric high lift pallet jack 3

electric high lift pallet jack 4

  1. How about your quality control before shipment?

  All products will have been strictly quality checked and tested in house before packing. All

  products will be well packed before shipping.

  2. How to place an order?

  Please email us or Trademanager or call us to tell us the detailed requirements of the products

  you need (load capacity, height increase, etc.) and we will send you our offer within 24 hours.

  If you have no problem, please send us your purchase order, or you can ask us to send you a

  formal invoice for the order.

  3. Can you send the machine to my factory in other city to load the container?

  Yes, please tell us the detail address, we can arrange to send your factory in time.

  4. Are the forklift trucks covered by a warranty?

  Yes. All our machines carry a full 1 year major parts warranty.

  5. Can I get discounts?

  Yes, for big order, old customer and frequent customers, we give reasonable discounts.

  6. If I want to quote, what information should I provide?

  Provide the relevant functions you need to use, as well as the load, lift height, and electric

  voltage.

  7. How long is the warranty?

  Generally the warranty is one year, we can provide you free spar parts if broken within

  warranty period.
