Station drive full electric stacker

Station drive full electric stacker

stand drive full electric lift stacker truck automatic powered lift stacker
electric stacker truck
full electric stacker
electric lift stacker

stand drive full electric lift stacker truck automatic powered lift stacker

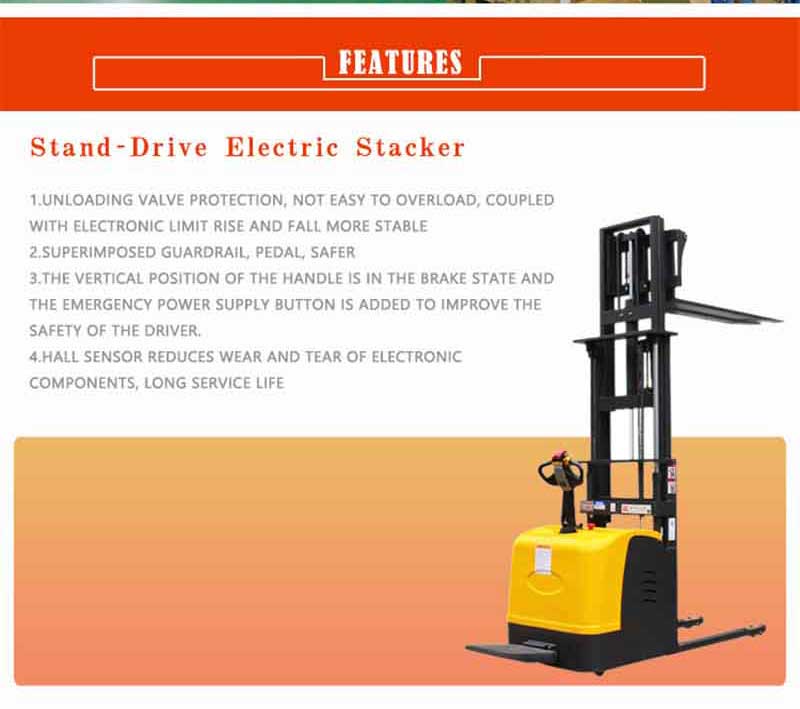

The station-mounted full electric stacker has pedals and electric drive wheels, and electric lift stacker has an electronic power steering function.Electric stacker forklift is a high load, high lift electric stacker.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

electric stacker truck 1



Model

单位

正LBCDD-10/15/20C/H)-16/20/25/30/35-SD

Load

KG

1000/1500/2000

Form of steel



C/H

Lifting height

mm

1600/2000/2500/3000/3500

Frame static height

mm

2090/1590/1840/2090/2340

After lifting the total height

mm

2090/2410/2910/3410/3910

No. of front / rear wheels(x=drive)

4/2+1X

Size of riving wheel / load bearing wheel / auxiliary wheel

mm

Φ250*80/Φ100*50/Φ80*70

Load center distance

mm

500

Fork minimum clearance from the ground

mm

40

Turning radius

mm

1600

Minimum channel requirement

mm

2464

Total body width

mm

850

Total body length(include  footboard)

mm

2140

Fork width

mm

700

Fork size

mm

1100*170*60

Minimum height of fork off the ground

mm

90

Fork leg width

mm

100

Body height from the ground

mm

30

Lifting speed(full load/no load)

mm/s

100/80

Decline speed(full load/no load)

mm /s

200/150

Driving speed(full load/no load)

 m / h

5600/4000

Maximum gradient(full load/no load)

°

10/6

Tire



Polyurethane

Driving method



Station drive

Braking method



Electromagnetic brake

Battery

V-AH

24V/120/210/240

Lifting motor

KW

3

Walking motor

KW

1.5

Hydraulic oil



46#

Total weight

KG

≈900/1070/1100

Noise level

dB(A)

<70





electric stacker truck 2

electric stacker truck 3

electric stacker truck 4

electric stacker truck 5

electric stacker truck 6

electric stacker truck 7

electric stacker truck 8

electric stacker truck 9

full electric stacker 1

full electric stacker 2

full electric stacker 4

full electric stacker 5

full electric stacker 6

full electric stacker 7

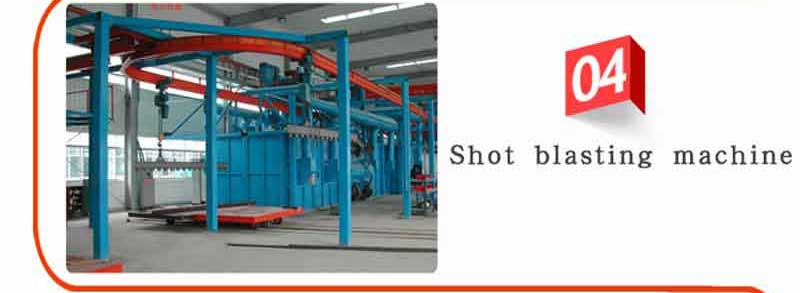

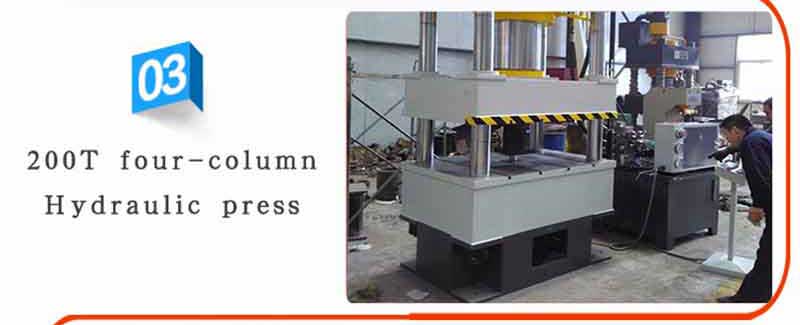

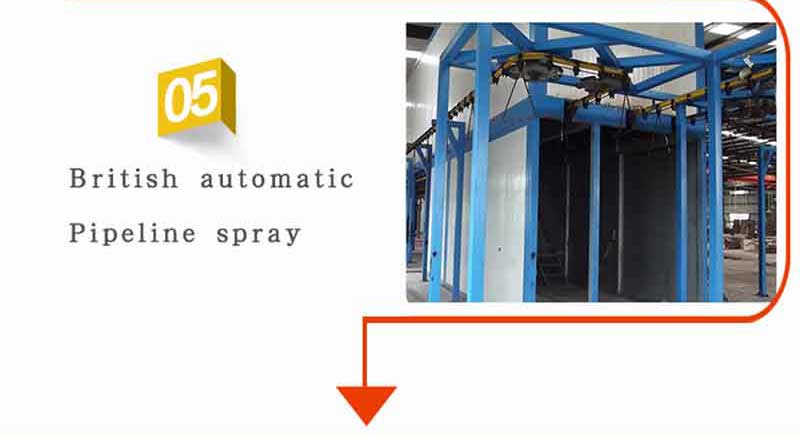

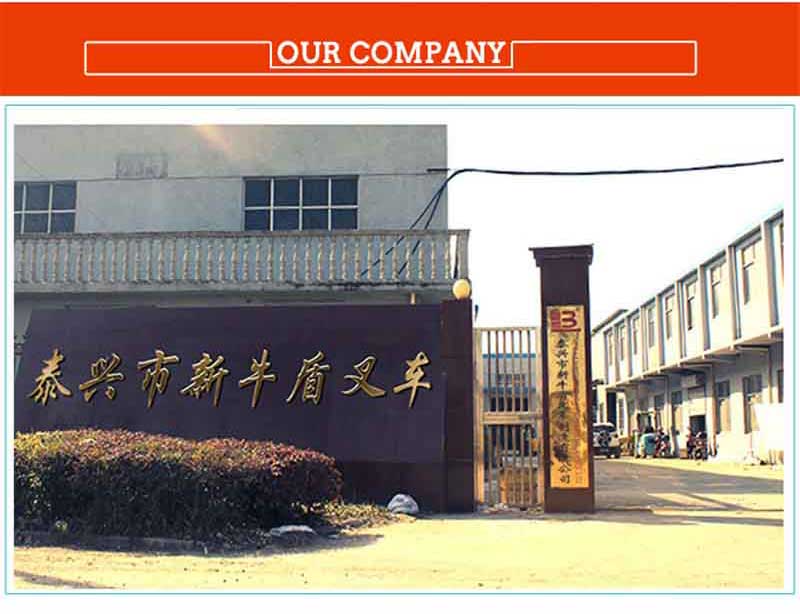

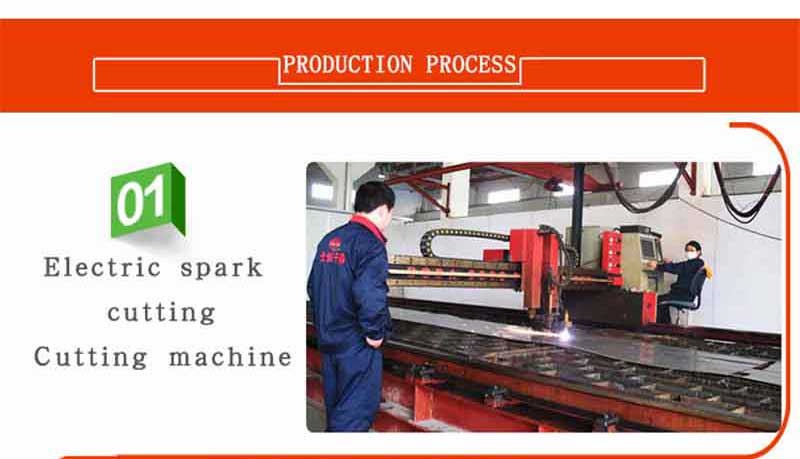

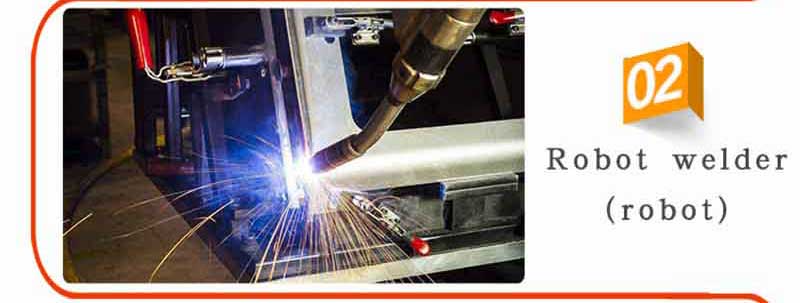

full electric stacker 8 NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

full electric stacker 9

electric lift stacker 1

electric lift stacker 2

electric lift stacker 3

electric lift stacker 4

electric lift stacker 5

electric lift stacker 6

1. How about the sample policy?

We can accept sample order for testing quality. But sample and express charge should be on customer’s account.

2. How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

3. How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

4. Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

5. Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products.

Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

6. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

7. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

electric lift stacker 7
