Station driving electric truck

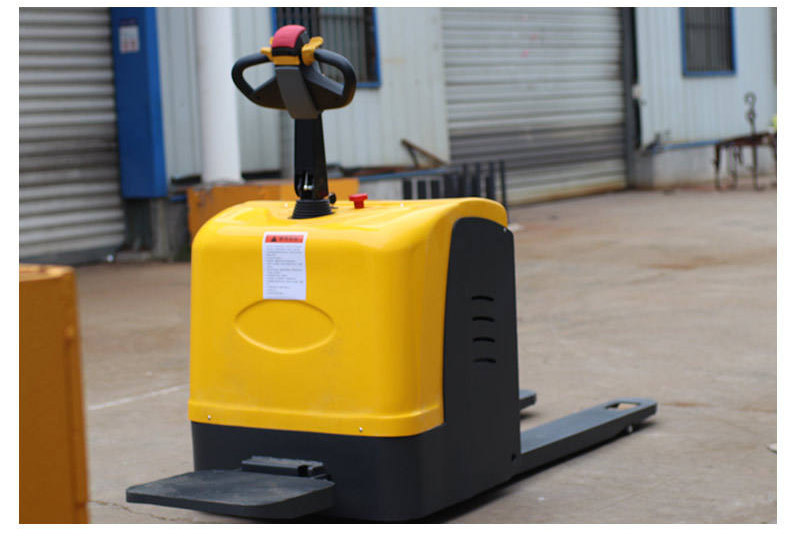

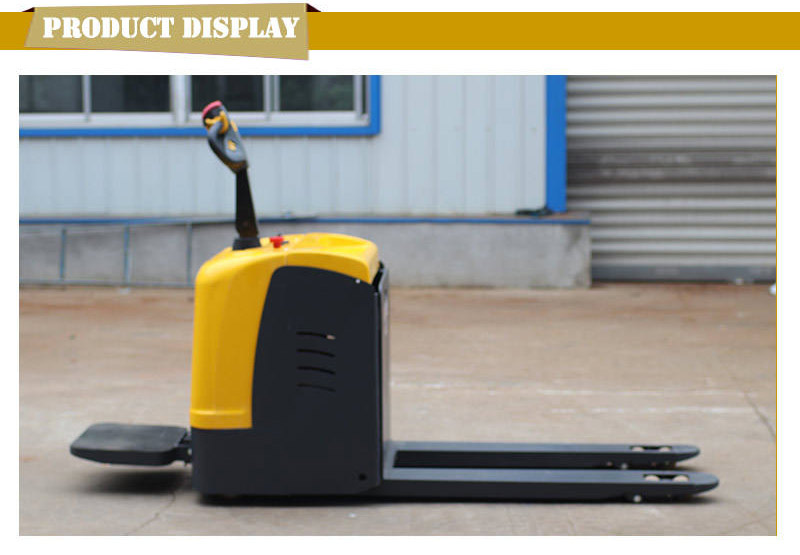

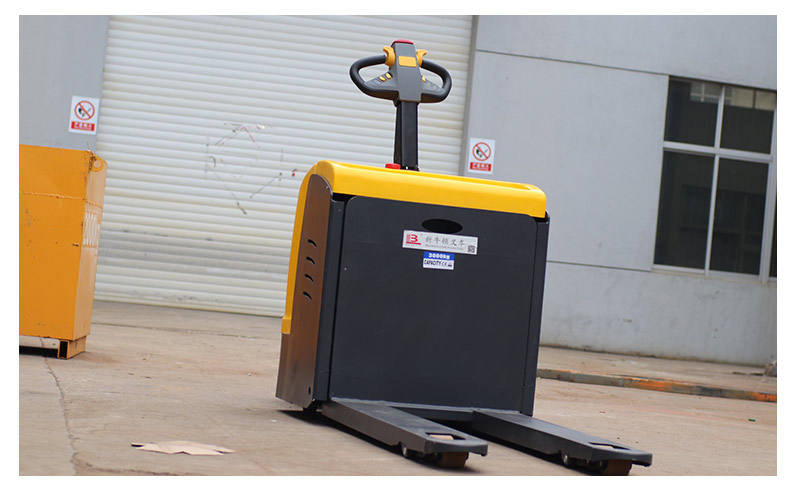

2 ton station-drive all-electric hydraulic pallet truck
2 ton station-drive all-electric hydraulic pallet truck，The electric pallet lifter is electric lifting and electric walking. The body is small and can work in narrow passages. The integrated handle controls forward, reverse and steering.- Price : -
- Min. Order : 1

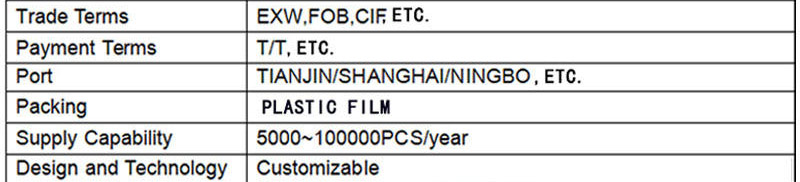

- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download
2 ton station-drive all-electric hydraulic pallet truck
| model |
CBD-20-540/685-SB |
| Load (kg) | 2000 |
| Maximum fork height from the ground (mm) | 195 |
| Fork down the surface from the ground (mm) |
<90 |
| Load center distance (mm) | 600 |
| Wheelbase center (mm) |
1350 |
| Fork minimum clearance from the ground(mm) |
30 20 |
| Turning radius (mm) |
2200 |
| Minimum channel requirement (mm) |
2400 |
| Total body width (mm) |
820 |
| Total body length (mm) |
1880 |
| Total body height (include handle)/(exclusive handle) (mm) | 955/1350 |
| Length of wagon (mm) |
680 |
| Fork width (mm) |
550/685 |
| Fork size ( mm) |
1150*185*55/1200*185*55 1200*180*60 |
| Lifting speed (full load / no load) (mm/ s) |
35/23 |
| Falling speed (full load / no load) (mm/ s) |
30/38 |
| Driving speed (full load / no load) (km / h) |
5.5/4.5 |
| Maximum gradient (full load / no load) (mm / s) |
8/5 |
| Size of wheel (front /rear/ balance) (mm) | 250*80/80*60/125/50 |
| Number of front/rear wheels (x=drive | 4/2+x |
| Front track (mm) | 505 |
| Rear track (mm) |
700 690 |
| Tire | Polyurethane |
| Driving method | Station drive |
| Braking method | Electromagnetic brake |

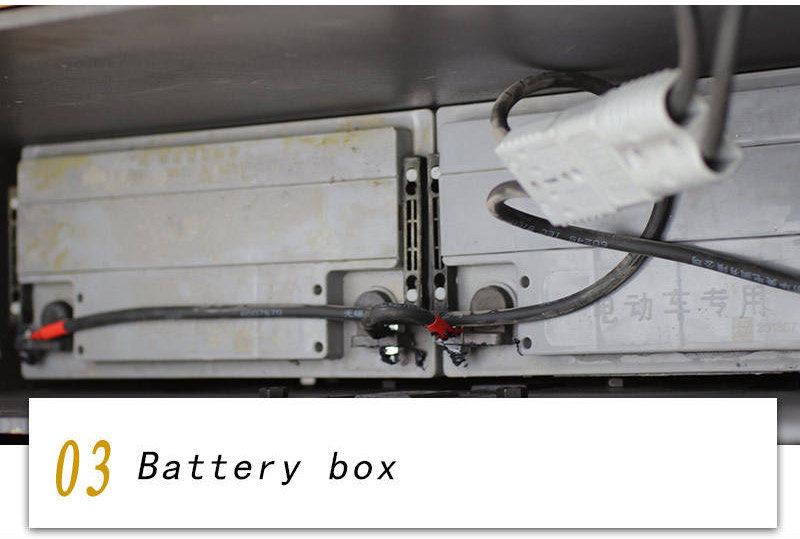

| Battery (V/AH) | 24V/210AH |
| Battery weight (kg) |
260 120 |
| Lift the motor |
DC 2.2KW |
| Walking motor |
DC 1.2KW |
| Hydraulic oil | 46# |
| Total Weight(KG) |
≈790 ≈680 |
| Noise level dB (A) | <70 |

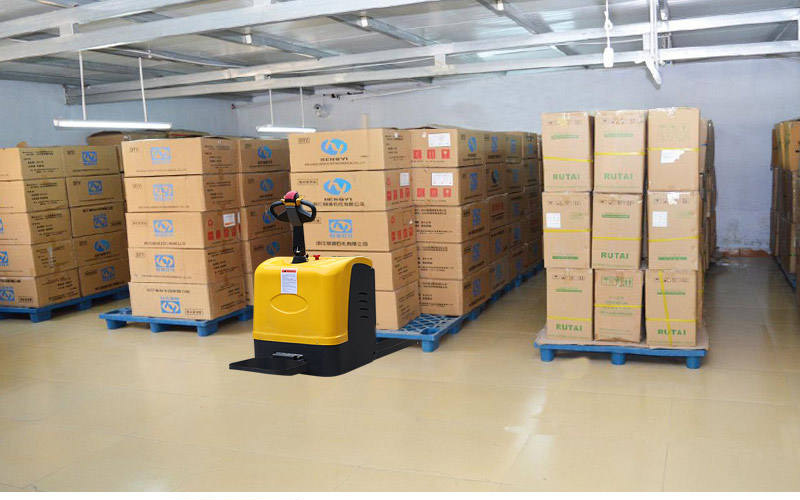

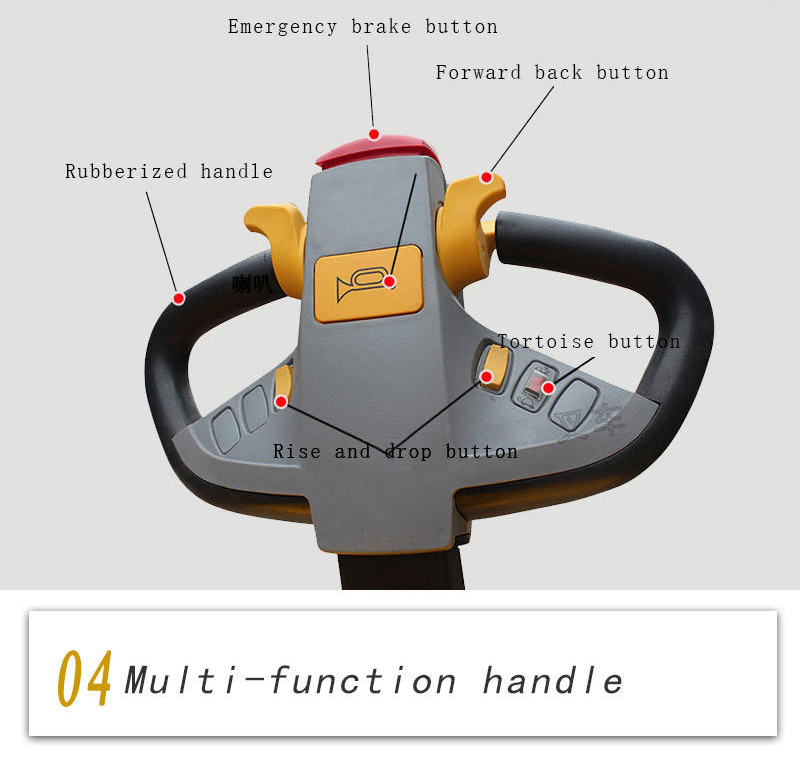

2 ton station-drive all-electric hydraulic pallet truck，The electric pallet lifter is electric lifting and electric walking. The body is small and can work in narrow passages. The integrated handle controls forward, reverse and steering. It is easy to operate and does not require professional driving.
2 ton station-drive all-electric hydraulic pallet truck，The electric pallet lifter is electric lifting and electric walking. The body is small and can work in narrow passages. The integrated handle controls forward, reverse and steering. It is easy to operate and does not require professional driving.

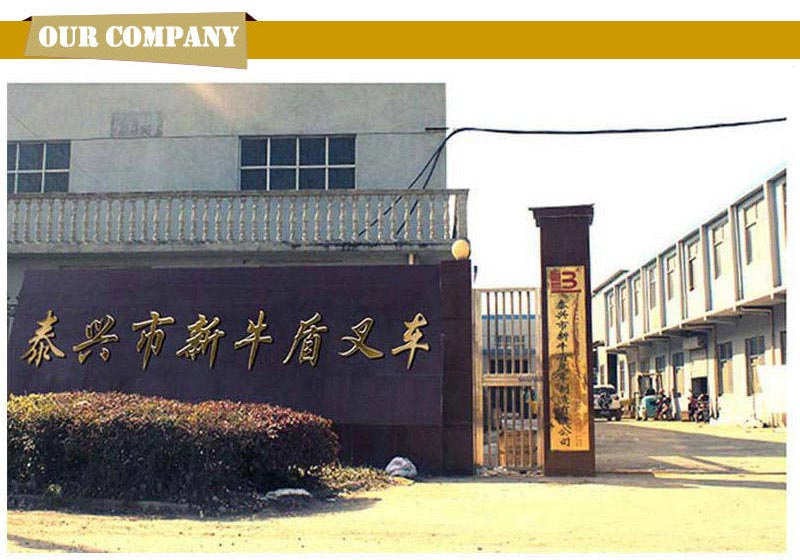

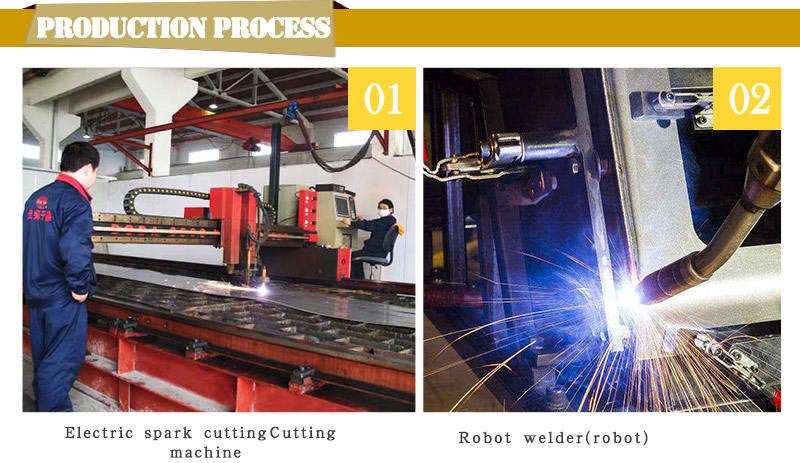

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.
1. How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing. All
products will be well packed before shipping.
2. How to place an order?
Please email us or Trademanager or call us to tell us the detailed requirements of the products
you need (load capacity, height increase, etc.) and we will send you our offer within 24 hours.
If you have no problem, please send us your purchase order, or you can ask us to send you a
formal invoice for the order.
3. Can you send the machine to my factory in other city to load the container?
Yes, please tell us the detail address, we can arrange to send your factory in time.
4. Are the forklift trucks covered by a warranty?
Yes. All our machines carry a full 1 year major parts warranty.
5. Can I get discounts?
Yes, for big order, old customer and frequent customers, we give reasonable discounts.
6. If I want to quote, what information should I provide?
Provide the relevant functions you need to use, as well as the load, lift height, and electric
voltage.
7. How long is the warranty?
Generally the warranty is one year, we can provide you free spar parts if broken within
warranty period.
Provide one-stop service such as free consultation, ordering, and after-sales service, providing customers with a worry-free buying environment.
