Cylindrical fork roll lift for semi-electric roll lifting equipment

The paper roll handling equipment has a compact and precise frame with a small turning radius and can be operated safely in a narrow working space.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
  1. Video
  2. Description
  3. Reviews
  4. Download

roll lifting equipment

roll lifting equipment 1

roll lifting equipment 2

roll lifting equipment 3

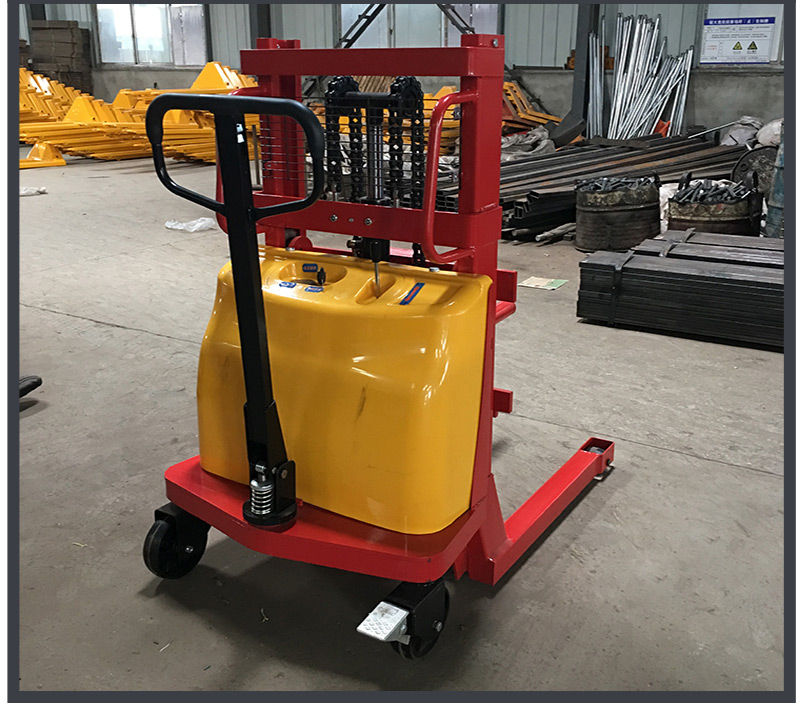

The roll lift uses a cylindrical fork to push the electric lift. The roll lifting equipment have been carefully designed and manufactured, rigorously tested and of reliable quality. The paper roll handling equipment has a compact and precise frame with a small turning radius and can be operated safely in a narrow working space. The semi-electric roll lifting equipment is environmentally friendly, noise-free and durable, suitable for handling and handling materials with round holes.

roll lifting equipment 4

model

B/LBBDD-10/15/20 (C)-16-20-25-30-35

A/LBBDD-10/15/20 (C)-16-20-25-30-35

Load (kg) 1000/1500/2000

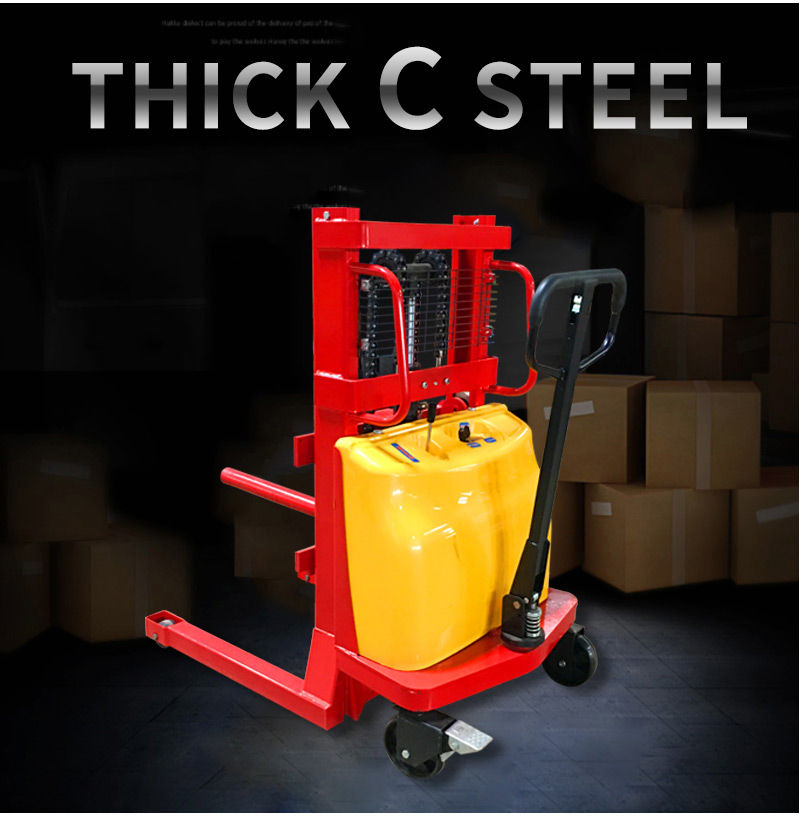

Form of steel C
Material

345B

Q235

Drive mode/driving method Manual /walking
Load center distance (mm) 500
Axle load(before/after full load)kg 611/1319
Axle load(before/after no load)kg 325/105
number of front /rear wheels (X=drive) 2/2
Front track(mm) 720
Rear track(mm) 520
Lifting height (mm) 1600/2000/2500/3000/3500
Frame static height (mm) 2090/1590/1840/2090/2340
Maximum height of gantry operation  (mm) 2090/2410/2910/3410/3910
Load center distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Turning radius (mm) 1425
Minimum channel requirement (mm) 2305

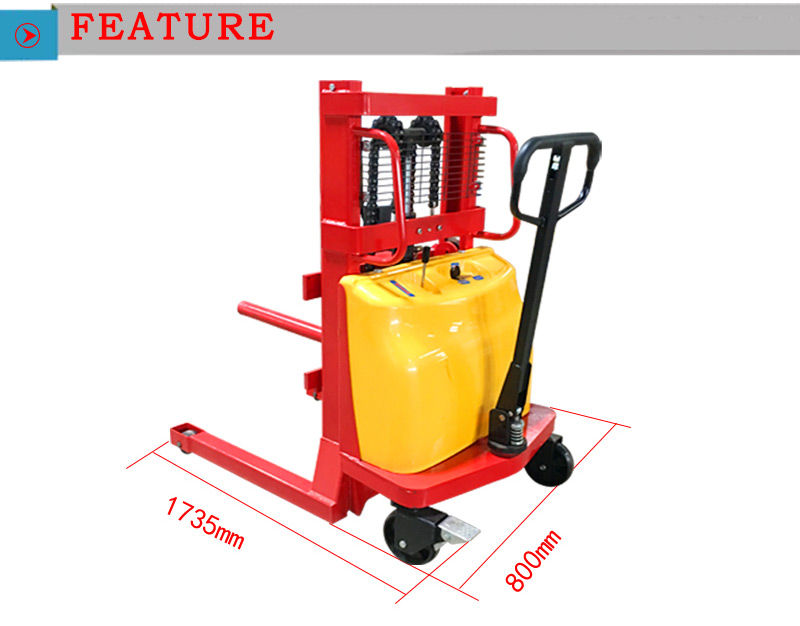

Total length(mm) 1735
Total body width (mm) 800
Lifting speed (full load / no load) (mm / s) 80/100
Falling speed (no load / full load)(mm/s) 120/150
Wheel Nylon wheel
Wheel Size (Front / Rear) (mm) Φ180*50/φ80*70
Driving method  walk
Drive mode    Manual
Lifting method

Button

Putt

Braking method    mechanical
Battery (V/AH)

12/120

12/80

Lift the motor   1.6KW
Hydraulic oil   46#
Total Weight(KG)    ≈380/400/440
Battery size(mm)   360*70*250
Noise level  dB (A)   <70

roll lifting equipment 5

roll lifting equipment 6

roll lifting equipment 7

roll lifting equipment 8

roll lift

roll lift 1

The roll lift uses a cylindrical fork to push the electric lift. The roll lifting equipment have been carefully designed and manufactured, rigorously tested and of reliable quality. The paper roll handling equipment has a compact and precise frame with a small turning radius and can be operated safely in a narrow working space. The semi-electric roll lifting equipment is environmentally friendly, noise-free and durable, suitable for handling and handling materials with round holes.

roll lift 2

roll lift 3

roll lift 4

roll lift 5

roll lift 6

roll lift 7



FAQ

1. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

2. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

3. Do you offer samples available?

Yes, samples are available. Sample lead time 3-5 days generally.

4. What's the advantage of your company?

We are experienced manufacturers and overseas distributors. Our products have been exported to more than 110 countries. An independent research team focused on the design and production of material handling equipment. The professional service team will provide feedback to customers within 24 hours.

5. Why we can choose you?

Reliable - we are real companies, we strive for excellence

Professional - we provide the products you want

Factory - we have a factory, so the price is reasonable

Service - we have a strong sales team and after-sales team, so the service is very fast

6. How about the price? Can you make it cheaper?

The price depends on the item your demand (shape, size, quantity)

Beat quotation after receiving full description of the item you want

7. How can I get the after-service?

We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems, we also send the spare parts, but you should pay.

For our range pallet truck it is lifelong maintenance.
