Station driving electric truck

Station driving electric truck

small electric lift platform 2ton 3ton drivable pallet jack
small electric lift platform
small electric lift platform
small electric lift platform
small electric lift platform
small electric lift platform
small electric lift platform

small electric lift platform 2ton 3ton drivable pallet jack

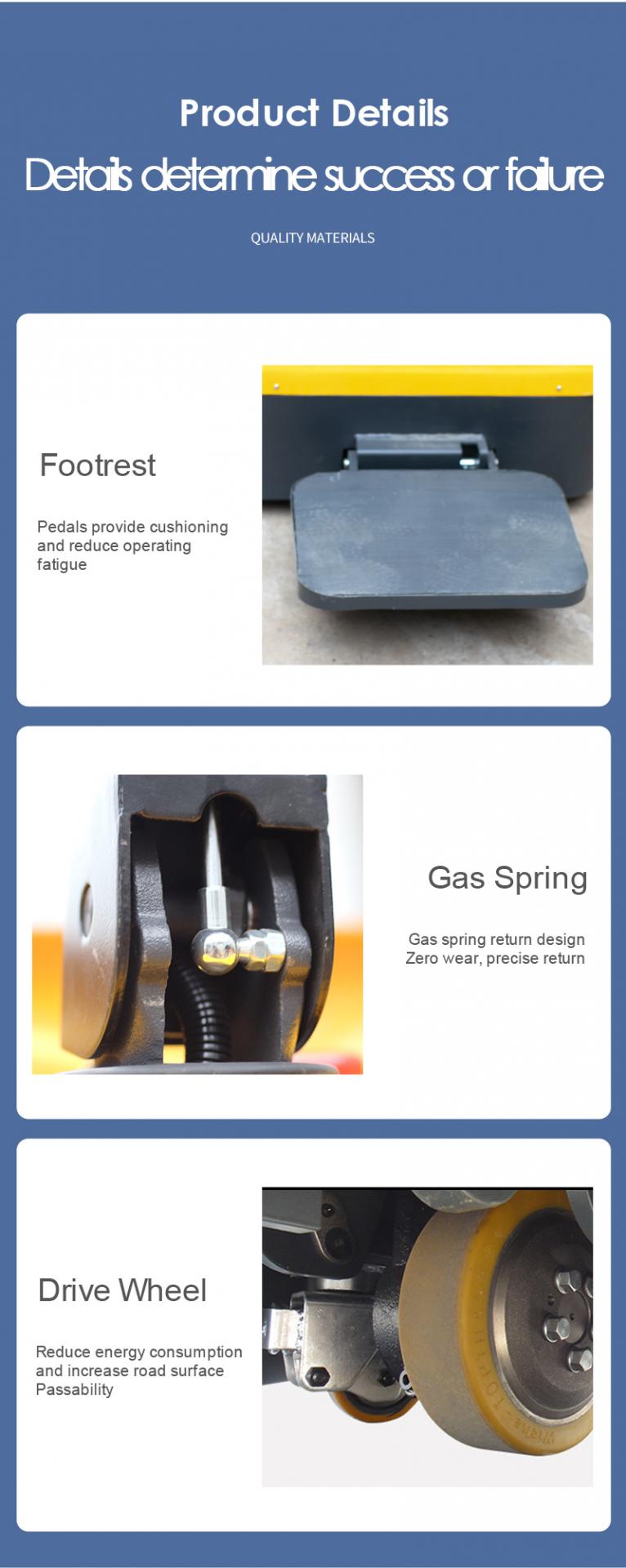

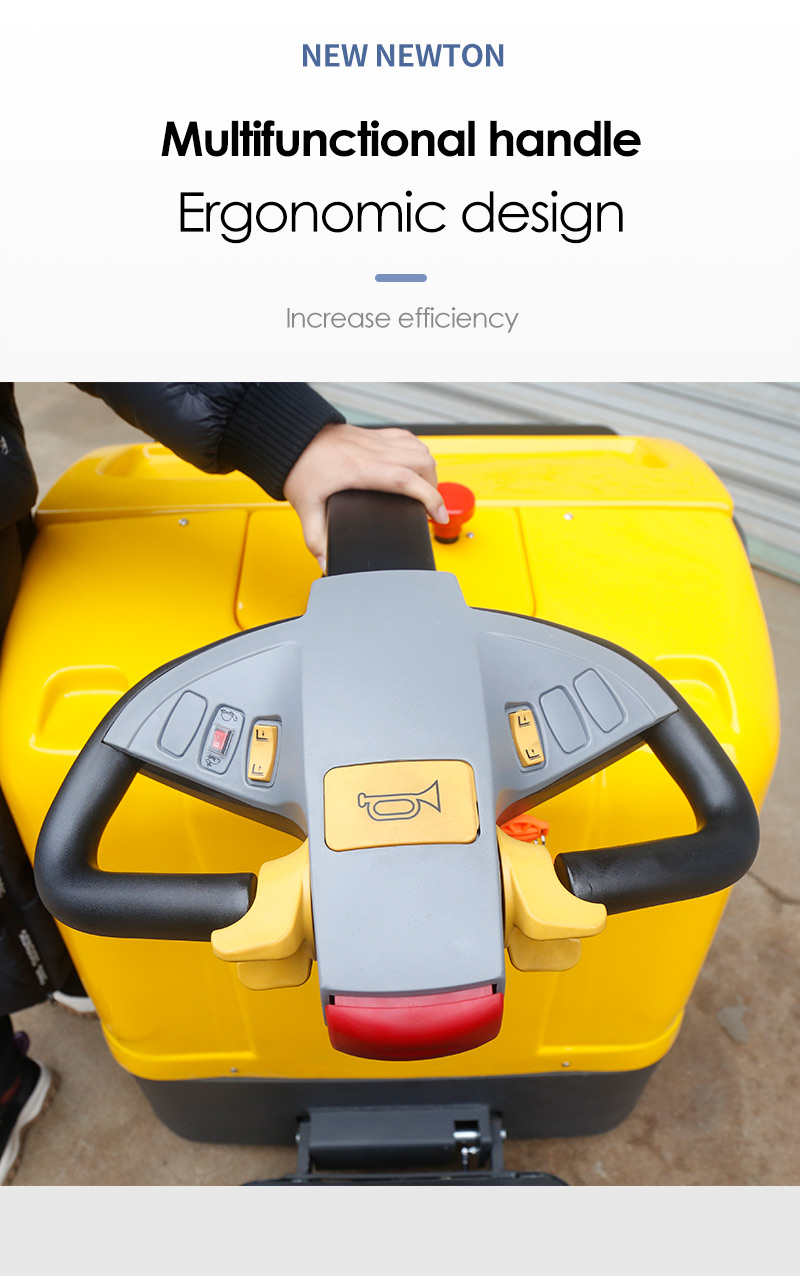

The electric driving handle of the ride on pallet jack is designed with clear functions, 99% fits the ergonomic design, the shock absorber stands the pedal, the operation is comfortable, and the fatigue is 0.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

model

LBCBD-20/25/30/40-540/685-SB

CBD-20/25/30/40-540/685-SB

Load (kg) 2000/2500/3000/4000
Maximum fork height from the ground (mm)

210

195

Fork down the surface from the ground (mm)

85

<\90

Load center distance (mm) 600
Wheelbase center (mm)

1305/1355

1350

Fork minimum clearance from the ground(mm)

30

20

Turning radius (mm)

1730/1770

2200

Minimum channel requirement (mm)

2120/2170

2400

Total body width (mm)

800

820

Total body length (mm)

1920/1970

1880

Total body height (include handle)/(exclusive handle) (mm) 955/1350
Length of wagon (mm)

790

680

Fork width (mm)

540/685

550/685

Fork size ( mm)

1150*185*55/1200*185*55

1200*180*60

Lifting speed (full load / no load) (mm/ s)

60/56

35/23

Falling speed (full load / no load) (mm/ s)

57/59

30/38

Driving speed (full load / no load) (km / h)

8/6

5.5/4.5

Maximum gradient (full load / no load) (mm / s)

7/5

8/5

Size of wheel (front /rear/ balance) (mm) 250*80/80*60/125/50
Number of front/rear wheels (x=drive 4/2+x
Front track (mm) 505
Rear track (mm)

700

690

Tire Polyurethane
Driving method Station drive
Braking method Electromagnetic brake

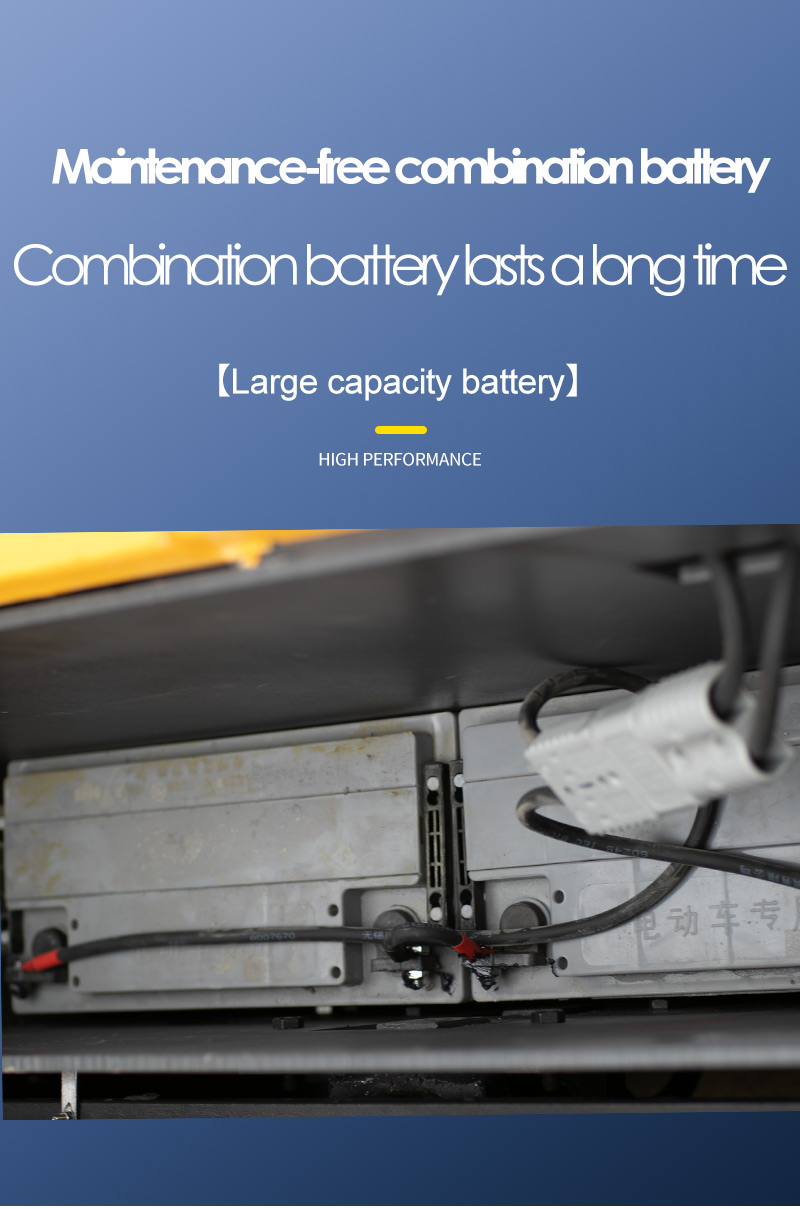

Battery (V/AH) 24V/210AH
Battery weight (kg)

260

120

Lift the motor

AC 2KW

DC 2.2KW

Walking motor

AC 1.5KW

DC 1.2KW

Hydraulic oil 46#
Total Weight(KG)

≈790

≈680

Noise level dB (A) <70

small electric lift platform
