Electric stacker suppliers provides durable 120AH high-power warehouse stacker

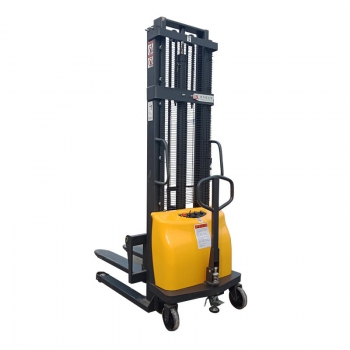

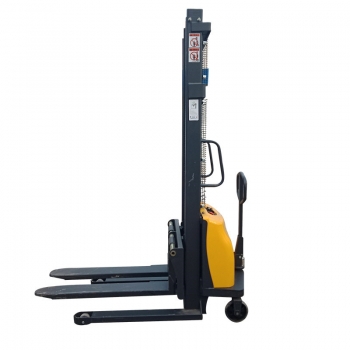

Electric stacker suppliers heavy load type C/H gantry with a maximum load of 2 tons. The warehouse stacker forklift is equipped with a high-powered motor, and the maintenance-free electric stacker suppliers provides a 120AH large-capacity battery.- Price : -
- Min. Order : 1
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like
- Video
- Description
- Reviews
- Download

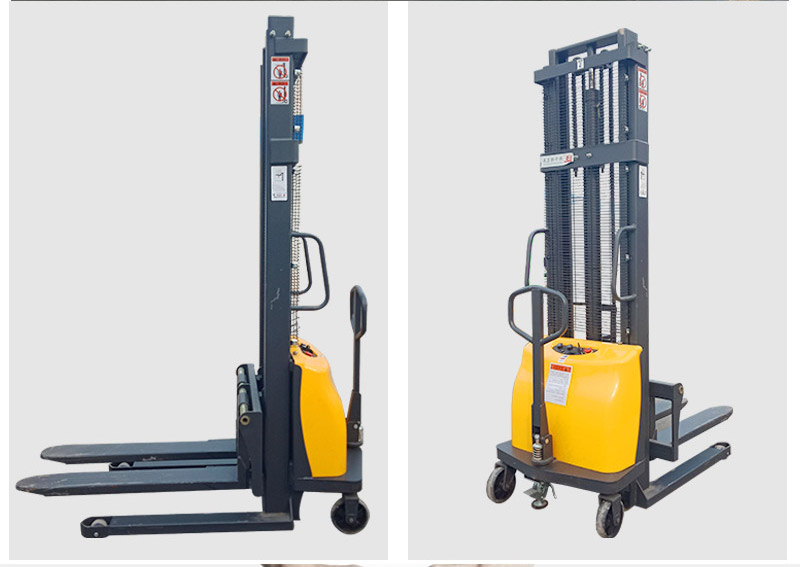

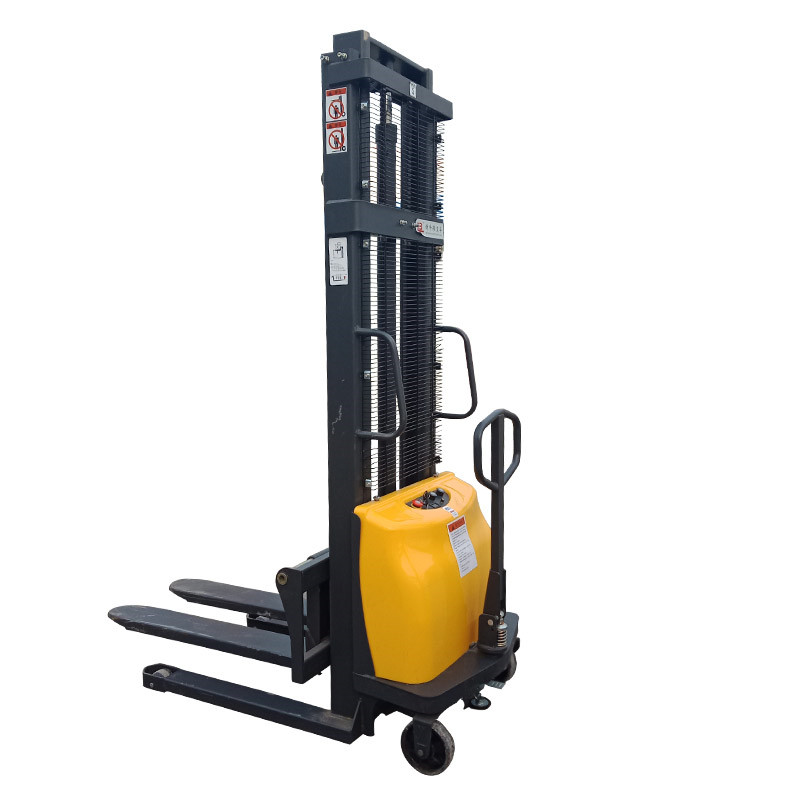

Electric stacker suppliers provides durable 120AH high-power warehouse stacker

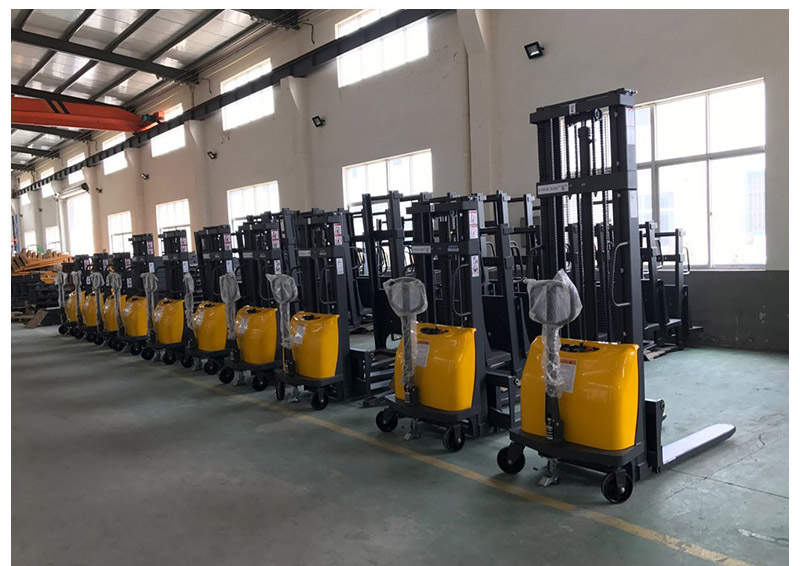

New Newton (Taizhou) forklift truck co.,ltd has 15 years of experience in R&D and production of warehousing and logistics handling vehicles. Advanced production equipment, perfect technology, advanced intelligent equipment and advanced special testing equipment, and the use of international standards as the technical indicators of the company's products.
| model |
B/LBBDD-10/15/20 (C)-16-20-25-30-35 A/LBBDD-10/15/20 (C)-16-20-25-30-35 |
| Load (kg) | 1000/1500/2000 |
| Form of steel | C |
| Material |

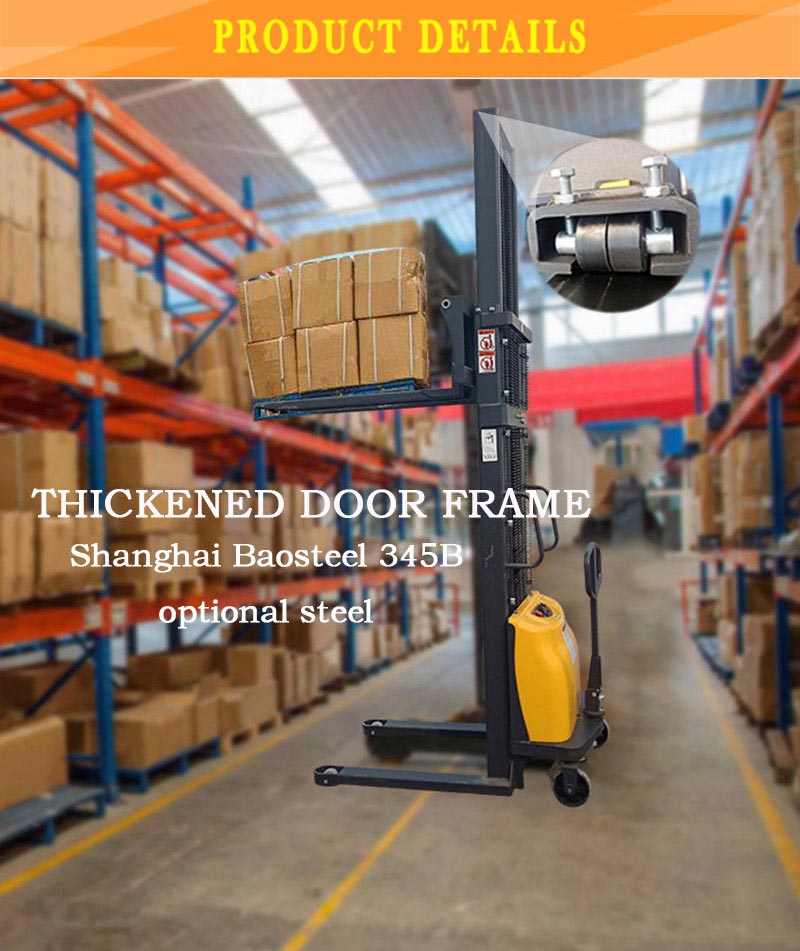

345B Q235 |
| Drive mode/driving method | Manual /walking |
| Load center distance (mm) | 500 |
| Axle load(before/after full load)kg | 611/1319 |
| Axle load(before/after no load)kg | 325/105 |
| number of front /rear wheels (X=drive) | 2/2 |
| Front track(mm) | 720 |
| Rear track(mm) | 520 |
| Lifting height (mm) | 1600/2000/2500/3000/3500 |
| Frame static height (mm) | 2090/1590/1840/2090/2340 |
| Maximum height of gantry operation (mm) | 2090/2410/2910/3410/3910 |
| Load center distance (mm) | 500 |
| Fork minimum clearance from the ground(mm) | 40 |
| Turning radius (mm) | 1425 |
| Minimum channel requirement (mm) | 2305 |
| Total length(mm) | 1735 |
| Total body width (mm) | 800 |

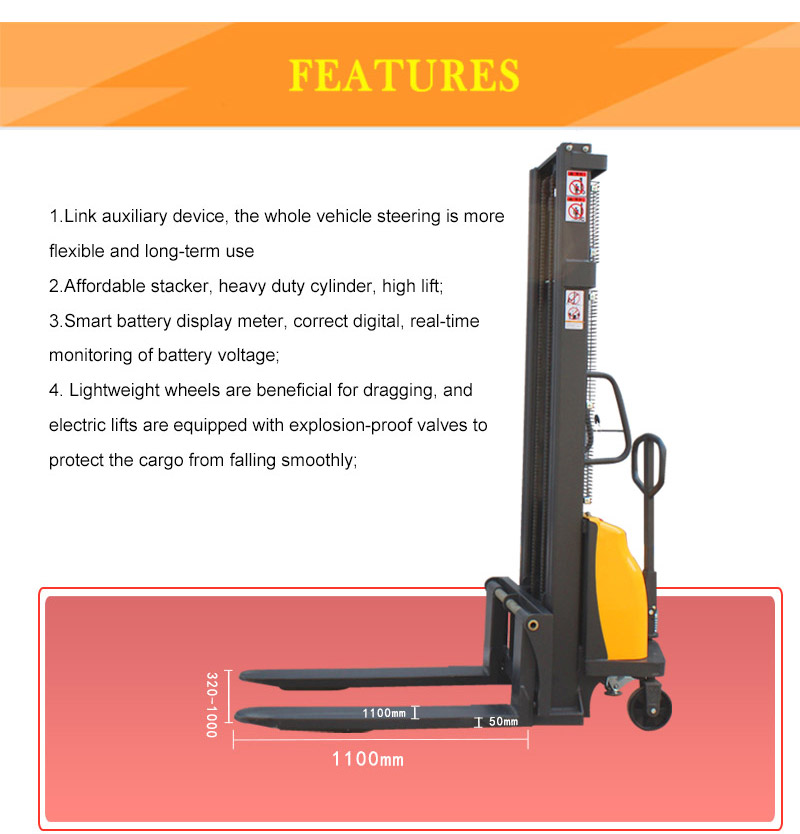

| Fork width (mm) | 320-1000 |
| Fork size (mm) |
1100*160*50 1000*160*50 |
| Lifting speed (full load / no load) (mm / s) | 80/100 |
| Falling speed (no load / full load)(mm/s) | 120/150 |
| Wheel | Nylon wheel |
| Wheel Size (Front / Rear) (mm) | Φ180*50/φ80*70 |
| Driving method | walk |
| Drive mode | Manual |
| Lifting method |

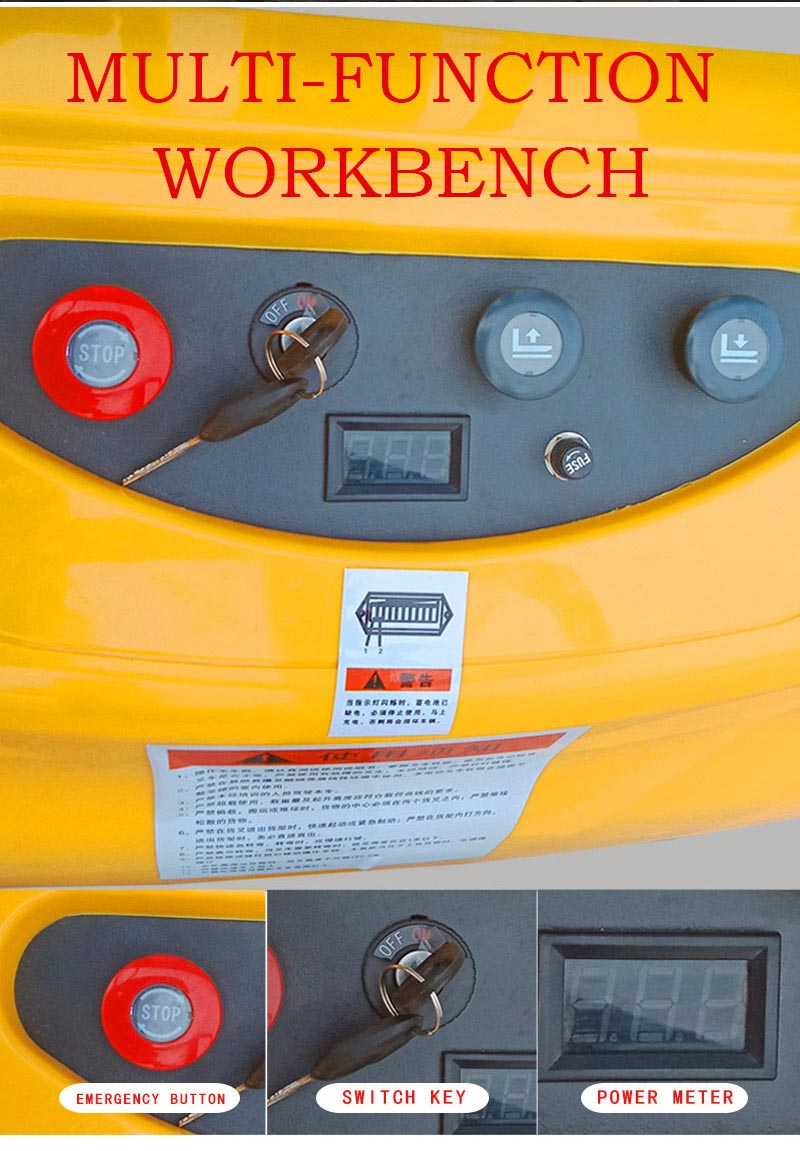

Button Putt |

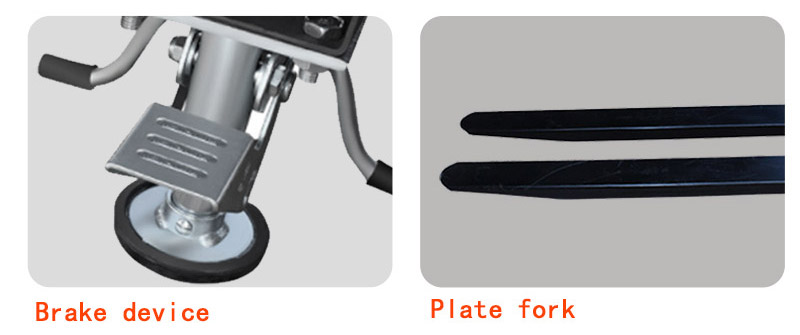

| Braking method | mechanical |
| Battery (V/AH) |
12/120 12/80 |
| Lift the motor | 1.6KW |
| Hydraulic oil | 46# |
| Total Weight(KG) | ≈380/400/440 |
| Battery size(mm) | 360*70*250 |
| Noise level dB (A) | <70 |
Electric stacker suppliers heavy load type C/H gantry with a maximum load of 2 tons. The warehouse stacker forklift is equipped with a high-powered motor, and the maintenance-free electric stacker suppliers provides a 120AH large-capacity battery for the buy electric stacker,it can be used for 8 hours for 4 hours. The electric stacker suppliers uses heavy-duty sealing cylinders to prevent oil leakage and low maintenance costs.
Electric stacker suppliers heavy load type C/H gantry with a maximum load of 2 tons. The warehouse stacker forklift is equipped with a high-powered motor, and the maintenance-free electric stacker suppliers provides a 120AH large-capacity battery for the buy electric stacker,it can be used for 8 hours for 4 hours. The electric stacker suppliers uses heavy-duty sealing cylinders to prevent oil leakage and low maintenance costs.
FAQ
1. Can I visit your company?
Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.
2. Do you offer custom design?
Custom design is surely available. We have very rich experience in customizing shelves.
3. Do you offer samples available?
Yes, samples are available. Sample lead time 3-5 days generally.
4. What's the advantage of your company?
We are experienced manufacturers and overseas distributors. Our products have been exported to more than 110 countries. An independent research team focused on the design and production of material handling equipment. The professional service team will provide feedback to customers within 24 hours.
5. Why we can choose you?
Reliable - we are real companies, we strive for excellence
Professional - we provide the products you want
Factory - we have a factory, so the price is reasonable
Service - we have a strong sales team and after-sales team, so the service is very fast
6. How about the price? Can you make it cheaper?
The price depends on the item your demand (shape, size, quantity)
Beat quotation after receiving full description of the item you want
7. How can I get the after-service?
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems, we also send the spare parts, but you should pay.
For our range pallet truck it is lifelong maintenance.
Provide one-stop service such as free consultation, ordering, and after-sales service, providing customers with a worry-free buying environment.
