Four-wheel electric forklift

Four-wheel electric forklift

Four-wheeled-drive all-electric stacker all-electric hydraulic forklift
2 ton forklift (1)
2 ton forklift (2)
2 ton forklift (3)
2 ton forklift (4)
2 ton forklift (5)
2 ton forklift (6)

Four-wheeled-drive all-electric stacker all-electric hydraulic forklift

The electric forklift small rough terrain forklift is designed to meet human engineering mechanics and is easy to operate. The electric forklift atlet forklift adopts a metal polished appearance, which is simple and beautiful.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

Four-wheeled-drive all-electric stacker all-electric hydraulic forklift manufacturers

atlet forklift 4

atlet forklift 5

atlet forklift 6

2 ton forklift

model LBCPD-15/18/20/25/30/35-30/40/50-SD
Load (kg) 1500/1800/2000/2500/3000/3500
Form of steel H
Lifting height (mm) 3000
Frame static height (mm) 4100
After lifting the total height (mm) 1150/1150/1230/1230/1350/1350
Free height (mm) 160/160/165/170/180/180
Load center distance (mm) 500
Before and after the tilt angle 6/12
Turning radius (mm) 2080/2100/2280/2335/2650/2670
Minimum channel requirement (mm) 4090
Wheelbase (mm) 1500/1500/1680/1680/1770/1770
Front suspension (mm) 465/465/485/495/500/510
Track  (front / rear)

960/950  960/950  1000/980

1000/980  1050/1030  1050/1030

Overhead guard height (mm) 2150
Total length (mm) 2375/2400/2615/2670/2900/2925
Total body width (mm) 1100
Fork size (forged) mm 1070*100*35/1070*100*40/1070*120*40/1070*120*45
Fork adjustable range (mm)

250-1040 (1.5-1.8T)

260-1100(2.0T)

260-1100 (2.5T-3.5T)

Chassis height from the ground (mm) 130
Lifting speed (full load / no load) (mm / s) 384/220
Driving speed (full load / no load) (km / h) 12/13
Maximum gradient (full load / no load) (°) 15/15
Tire (front) 6.5-10-10PR/28*9-15-12PR
Tire (rear) 5.0-8-8PR/18*9-8*14PR
Tire Solid rubber tires
Driving method Sitting and driving
Braking method Electromagnetic brake
Turn Hydraulic steering
Battery (V/AH) 24/210-500
Lift motor 10KW
Walking motor 10KW
Hydraulic oil 46#
Total Weight(KG) ≈2600/2800/4800/5380/5580/5780
Noise level dB (A) <70
Lighting device Explosion-proof LED bulbs

2 ton forklift 1

2 ton forklift 2

2 ton forklift 3

2 ton forklift 4

2 ton forklift 5

The electric forklift small rough terrain forklift is designed to meet human engineering mechanics and is easy to operate. The electric forklift atlet forklift adopts a metal polished appearance, which is simple and beautiful. Electric forklifts 2 ton forklift are made of high-quality steel and have a strong load-bearing capacity. The electric forklift has strong power and high efficiency.

2 ton forklift 6

small rough terrain forklift

The electric forklift small rough terrain forklift is designed to meet human engineering mechanics and is easy to operate. The electric forklift atlet forklift adopts a metal polished appearance, which is simple and beautiful. Electric forklifts 2 ton forklift are made of high-quality steel and have a strong load-bearing capacity. The electric forklift has strong power and high efficiency.

small rough terrain forklift 1

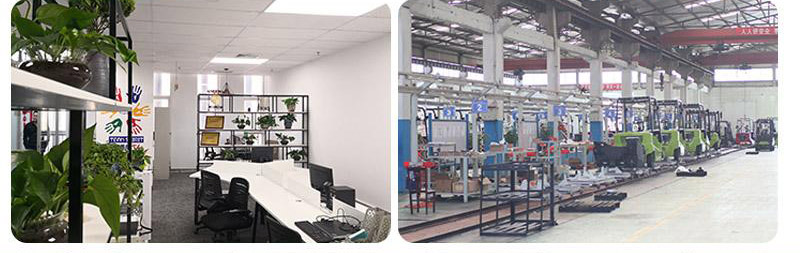

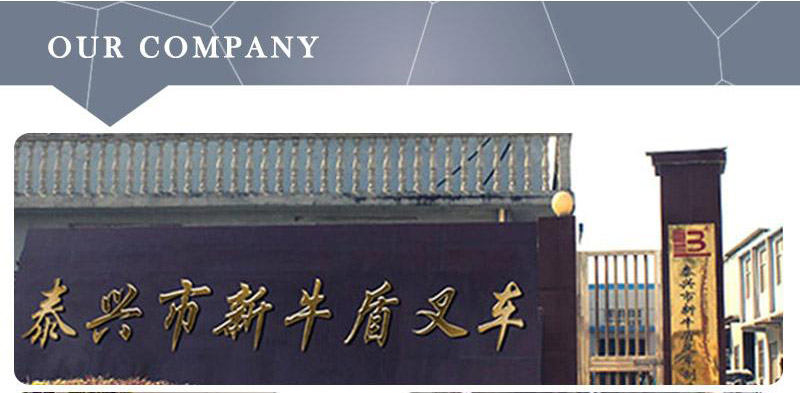

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

small rough terrain forklift 2

small rough terrain forklift 3

small rough terrain forklift 4

small rough terrain forklift 5

small rough terrain forklift 6

atlet forklift

atlet forklift 1

atlet forklift 2

1. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

2. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

3. Do you offer samples available?

Yes, samples are available. Sample lead time 3-5 days generally.

4. What’s the advantage of your company?

We are experienced manufacturers and overseas distributors. Our products have been exported to more than 110 countries. An independent research team focused on the design and production of material handling equipment. The professional service team will provide feedback to customers within 24 hours.

5. Why we can choose you?

Reliable - we are real companies, we strive for excellence

Professional - we provide the products you want

Factory - we have a factory, so the price is reasonable

Service - we have a strong sales team and after-sales team, so the service is very fast

6. How about the price? Can you make it cheaper?

The price depends on the item your demand (shape, size, quantity)

Beat quotation after receiving full description of the item you want

7. How can I get the after-service?

We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems, we also send the spare parts, but you should pay.

For our range pallet truck it is lifelong maintenance.

atlet forklift 3
