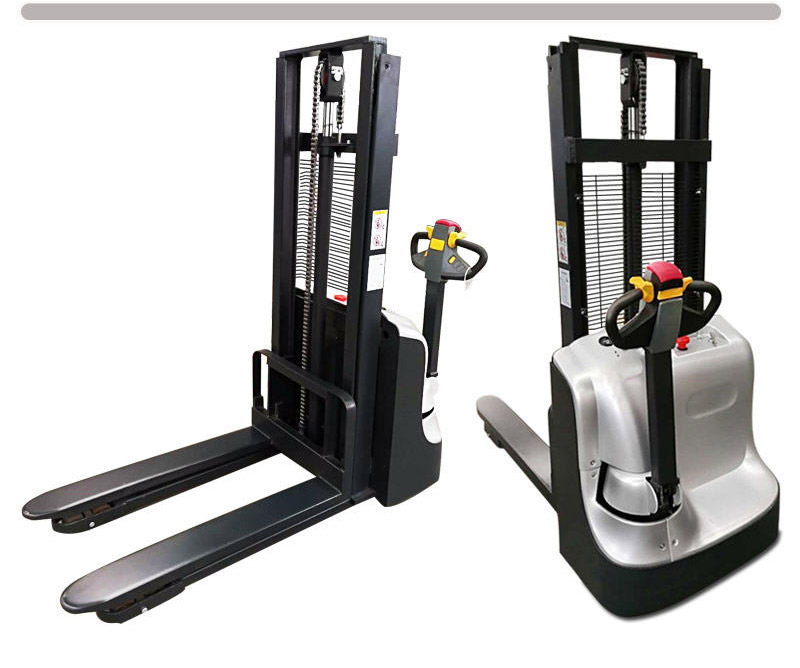

1.5 ton 2.5M Automatic lifting walking standing electric walk behind forklift
walk behind pallet stacker (1)
walk behind pallet stacker (2)
walk behind pallet stacker (3)
walk behind pallet stacker (4)

1.5 ton 2.5M Automatic lifting walking standing electric walk behind forklift

The walk behind pallet stacker is designed with high-strength structure, and the high-quality cylinder has a long service life, which reduces maintenance costs. The walk behind forklift adopts special drive and wear-resistant wheels, and has strong bearin

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

1.5 ton 2.5M Automatic lifting walking standing electric walk behind forkliftWalk Behind Forklift 7

model LBCDD-15(C)-25-WA
Material

345B (sliver)

Load (kg) 1500
Highest point load (kg)

1050

Power type electric
Operation type walk
Form of steel C
Lifting height (mm) 2500
Frame static height (mm)

1740

After lifting the total height (mm)

2950

Load center distance (mm) 500
Fork minimum clearance from the ground(mm) 30
Fork clearance (mm) 90
Turning radius (mm) 1280
Minimum channel requirement (mm) 2000
Total body width (mm) 800
Overall length (mm) 1860
Fork width (mm) 560/700
Fork size ( mm) 1150*160*55
Leg length/width (mm) 925/100
Inside the leg (mm0 300/420
Lifting speed (full load / no load) (mm/ s) 100/150
Falling speed(full load / no load) (mm/ s) 150/130
Driving speed (full load / no load) (m / h) 4000/4200
Maximum gradient (full load / no load) (°) 3/11
Tire Polyurethane
Tire size (drive wheel/load wheel/balance wheel) (mm) φ210*75/80*70/115*55
Battery (V/AH)

24/120 (sliver)

Battery size (mm) 361*170*250
Lift the motor

2.2kw (sliver)

Walking motor 0.75KW
Hydraulic oil 46#
Steering type mechanical
Total Weight(KG) ≈500
Noise level dB (A) <74

Walk Behind Forklift 8

Walk Behind Forklift 9

Industrial Lifts and Power Stackers

Industrial Lifts and Power Stackers 1

Industrial Lifts and Power Stackers 3

Industrial Lifts and Power Stackers 4

Industrial Lifts and Power Stackers 6

Industrial Lifts and Power Stackers 7

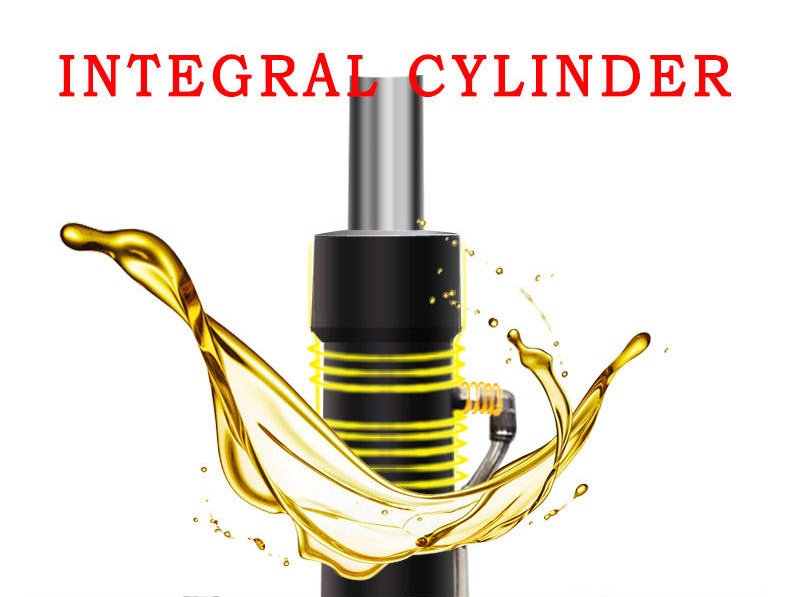

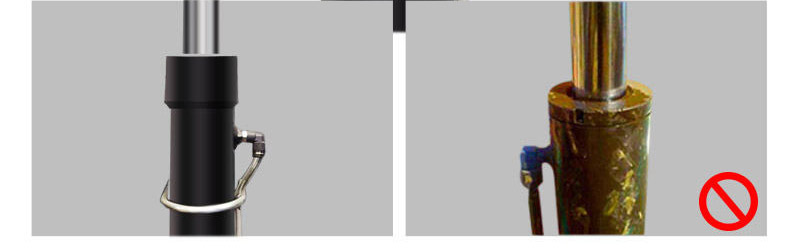

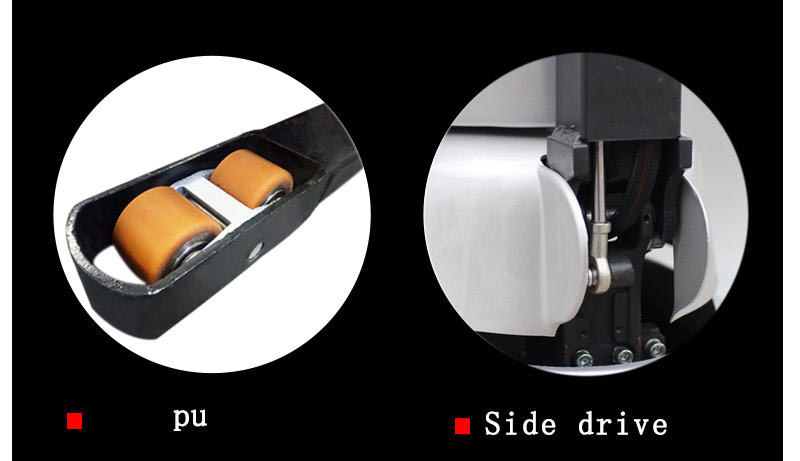

The walk behind pallet stacker is designed with high-strength structure, and the high-quality cylinder has a long service life, which reduces maintenance costs. The walk behind forklift adopts special drive and wear-resistant wheels, and has strong bearing capacity.

walk behind pallet stacker

walk behind pallet stacker 1

walk behind pallet stacker 2

walk behind pallet stacker 3

walk behind pallet stacker 4

The walk behind pallet stacker is designed with high-strength structure, and the high-quality cylinder has a long service life, which reduces maintenance costs. The walk behind forklift adopts special drive and wear-resistant wheels, and has strong bearing capacity.

walk behind pallet stacker 5

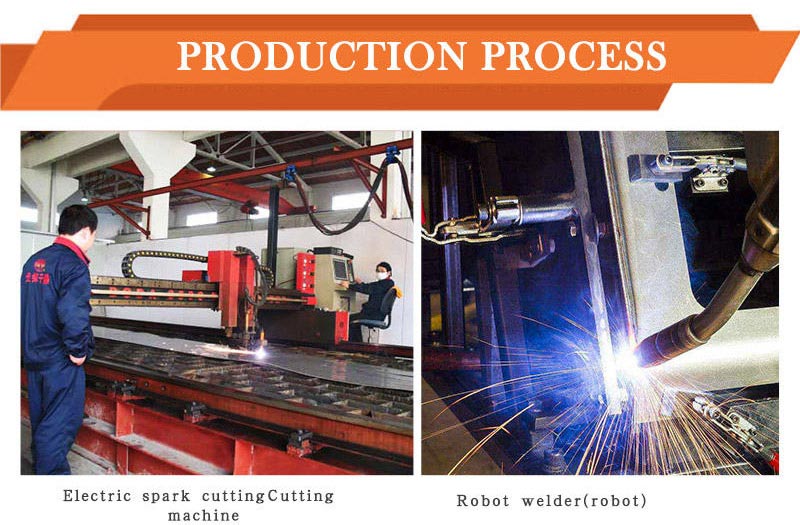

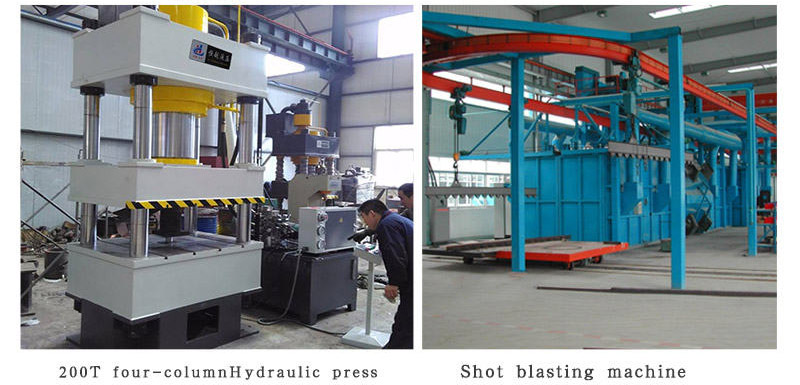

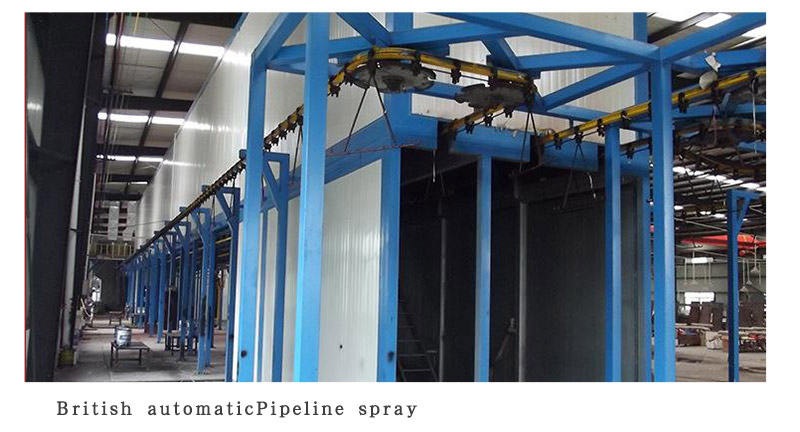

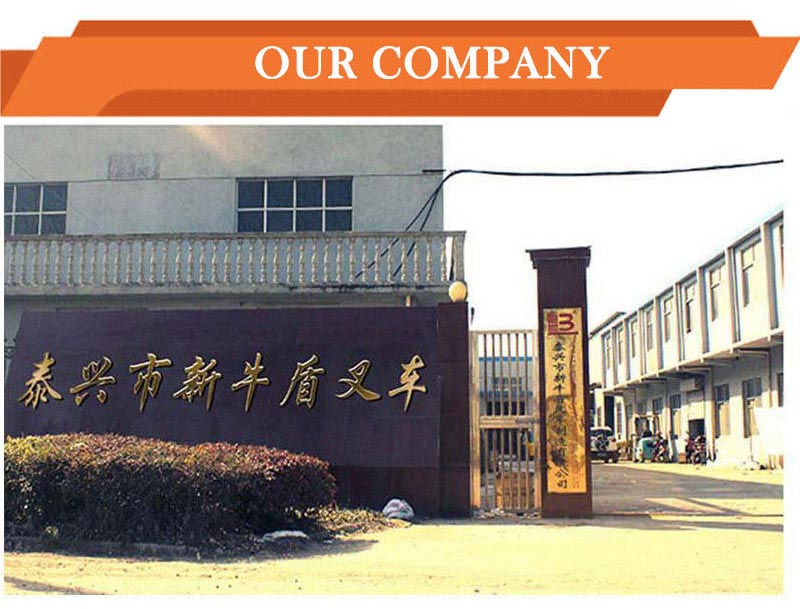

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

walk behind pallet stacker 6

walk behind pallet stacker 7

walk behind pallet stacker 8

walk behind pallet stacker 9

Walk Behind Forklift

Walk Behind Forklift 1

Walk Behind Forklift 2

Walk Behind Forklift 3

Walk Behind Forklift 4

Walk Behind Forklift 5



1. How about the battery working life?

    Our battery is form DIN standard battery ( Germany technology), can be working 6 years

    without any problem.

    2. Can you customize and design as the clients requirement?

    New Newton will try its best to meet all kinds of clients special requirements. The colors can be

    painted as clients need.

    3. How long is the warranty of your products?

    Normally 1 year or 10000 working hours. Details to see the New Newton warranty policy for

    each model.

    4. Can you produce the products labeled with the client’s brand?

    With the authorization of the brand,we can OEM for our clients.

    5. Is the operation procedure easy to learn?

    Every step of our company’s products is very easy to learn, and considering the unskilled

    operation, we have added emergency protection measures to each product to ensure the

    absolute safety of the user.

    6. Does the load-bearing effect bear the weight according to the product identification?

    Our products are only marketed after quality inspection, so the products must conform to the

    product identification load.

    7. How long after the order is placed?

    We will respond to your response within 24 hours after you place your order, and deliver the

    goods within 7days after the order is placed. Please contact customer service for the specific

    arrival time. We will give you the corresponding time according to your region and logistics

    status.

Walk Behind Forklift 6
