electric forklift manufacturers sell 1.5ton 2ton walk behind pallet truck

The electric walkie pallet jack is less than 1 cubic meter in size, has high flexibility, small body, small turning radius, and the channel requirement is only 1.7 meters, which is suitable for ultra-narrow space.

Product Specification:
  • Price : -
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

The electric walkie pallet jack is less than 1 cubic meter in size, has high flexibility, small body, small turning radius, and the channel requirement is only 1.7 meters, which is suitable for ultra-narrow space. Electric pallet jack for sale full-function design of the electric walkie pallet jack handle is easy to operate. Electric pallet jack for sale it is equipped with a 220v grounding plug for convenient charging. The driving wheel of the electric walkie pallet jack with the anti-collision cover protects the destructiveness of the driving wheel. External design of electric walkie pallet jack, heat dissipation, full electric operation, 0 pollution, energy saving and environmental protection.

model

LBCBD-Ⅰ-15-560/685-WA

Load (kg)                                      1500
Dynamic form                    electric
Operation type                                walk
Lifting height (mm)                             115
Wheelbase (mm)                         1268/1231
Carrying length ( mm)                     889/946
Fork down the surface from the ground (mm) 80-85
Load center distance (mm)         600
Fork minimum clearance from the ground(mm) 35
Turning radius (mm)                        1485
Minimum channel requirement (mm) 1739
Overall length (mm)                             1632
Total body width (mm)                 550/685
Fork width (mm)                      550/685
Fork size ( mm)                                    50*150*1150

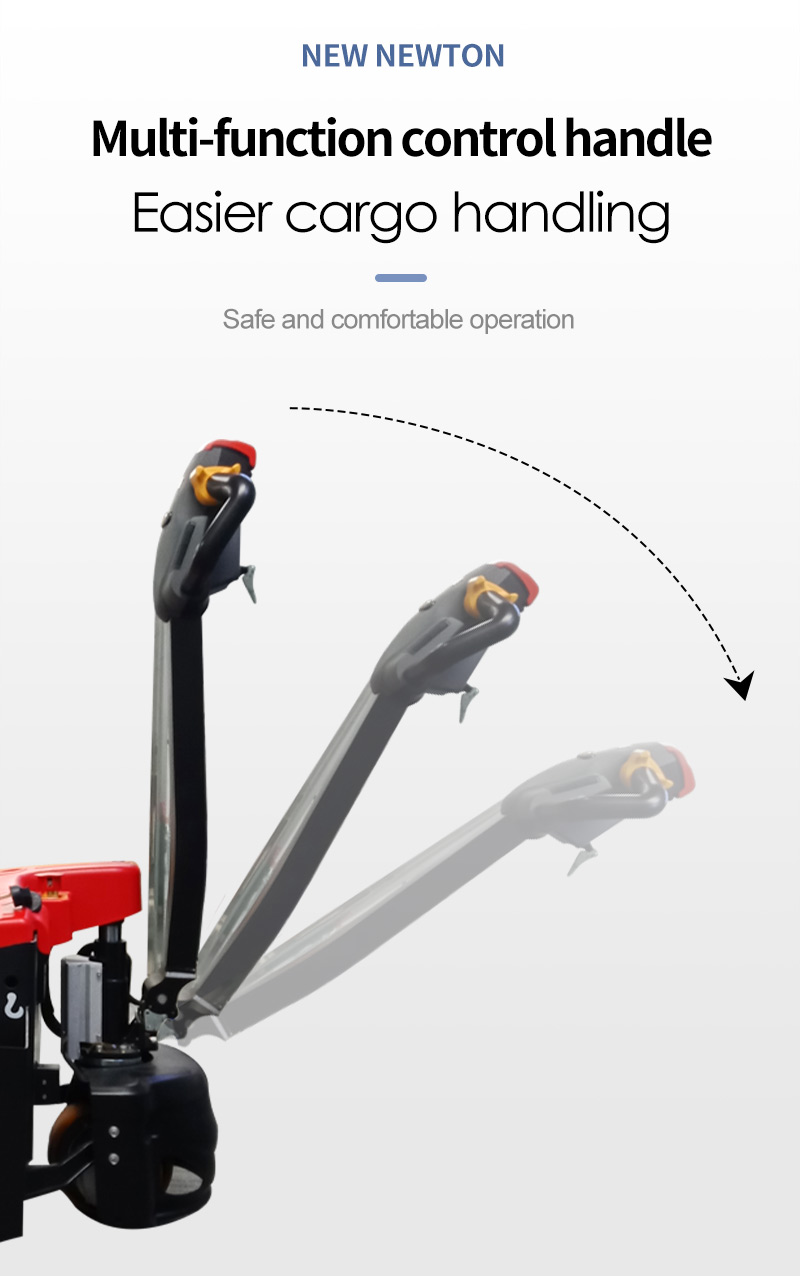

Operating handle minimum / maximum height (mm)                                             750/1170
Lifting speed (full load / no load) (mm/ s) 26/31
Driving speed (full load / no load) (km / h) 5.0/4.5
Falling speed (full load / no load) (mm/ s) 29/21
Maximum gradient (full load / no load) (°) 2/6

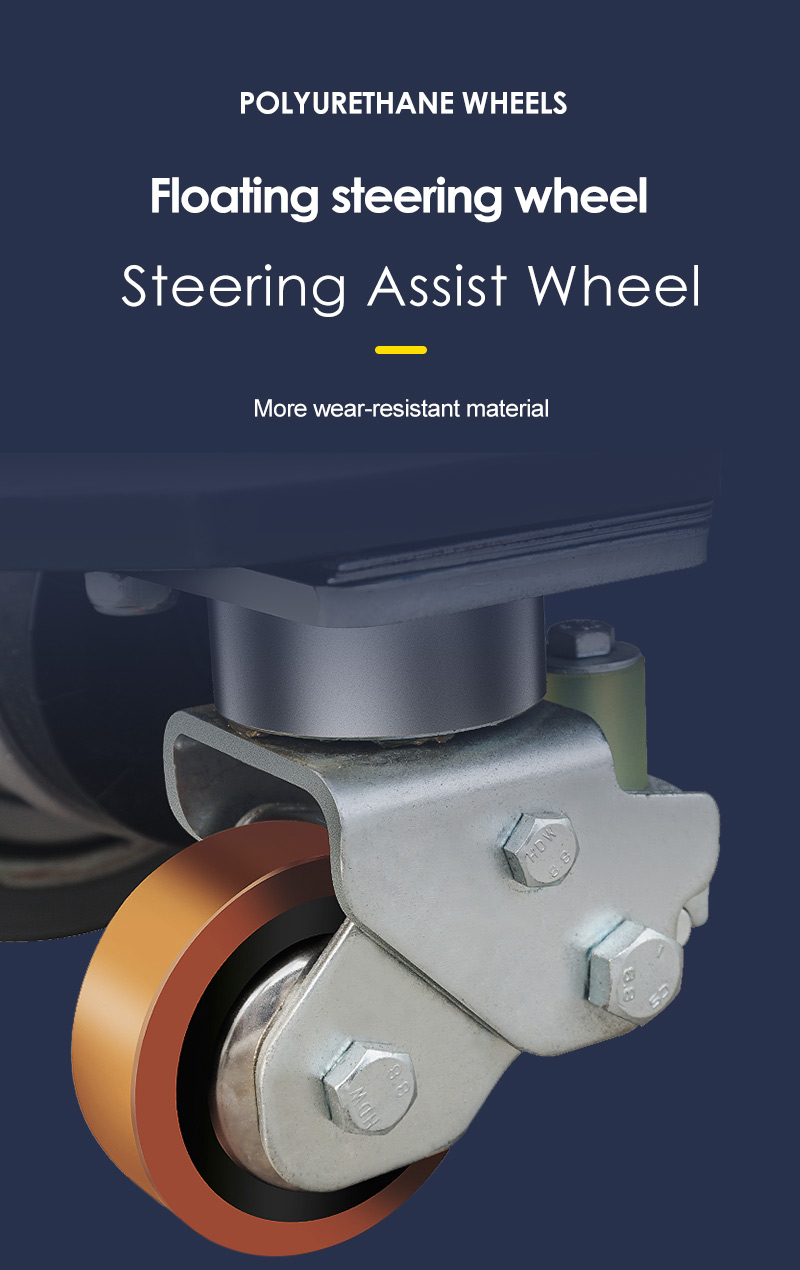

Tire                                                     Polyurethane
Number of drive wheels,balance wheels / load wheels (*=drive wheel) 1*/4(1*/2)
Drive wheel / load wheel size (mm) Φ210*70/80*60 (74*88)
Braking method                                     Electromagnetic brake

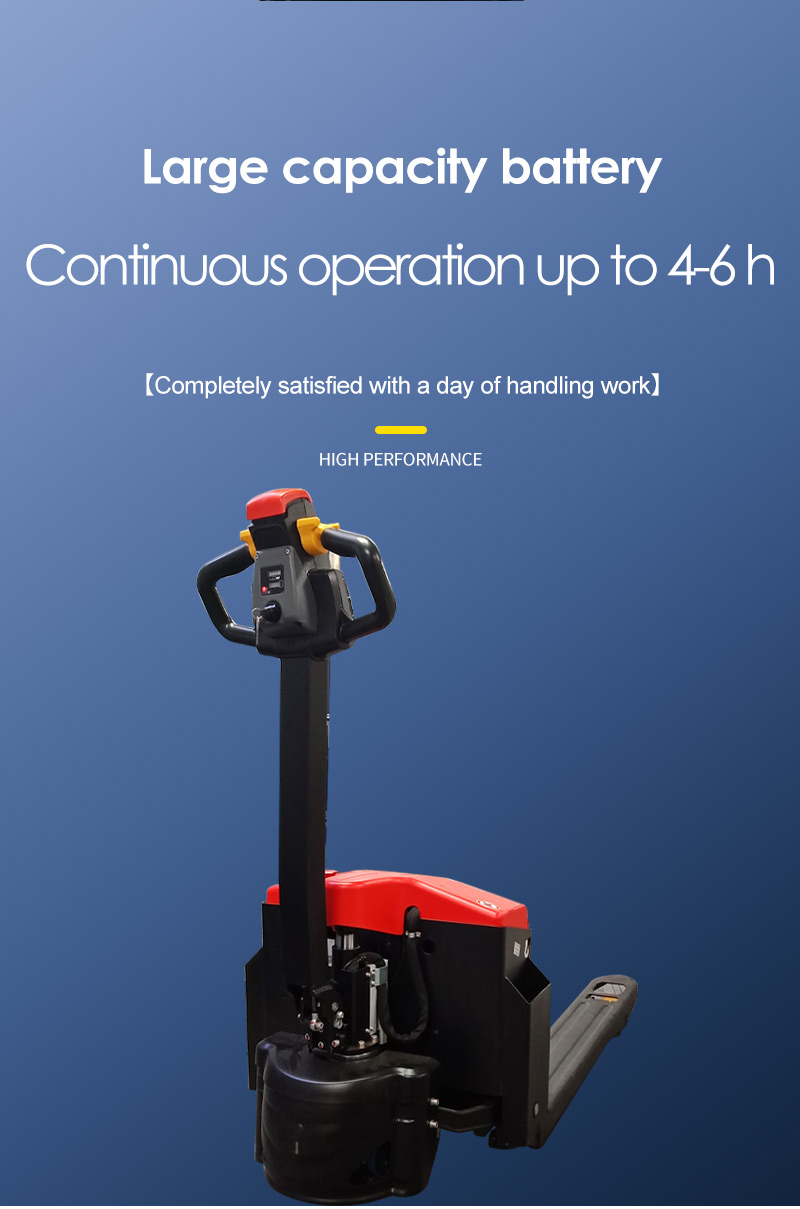

Battery (V/AH)                                     DC24V/85AH
Maximum battery size (mm) 360*170*280
Battery weight (kg)                  25.5*2
Lift the motor                               0.84KW
Walking motor                       0.65KW
Steering type                      mechanical
Hydraulic oil                    46#
Total Weight(KG)              ≈205
Noise level dB (A)               <74
