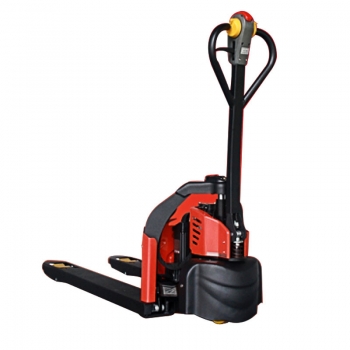

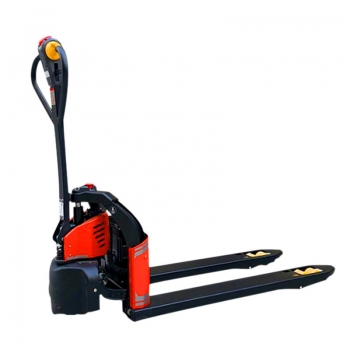

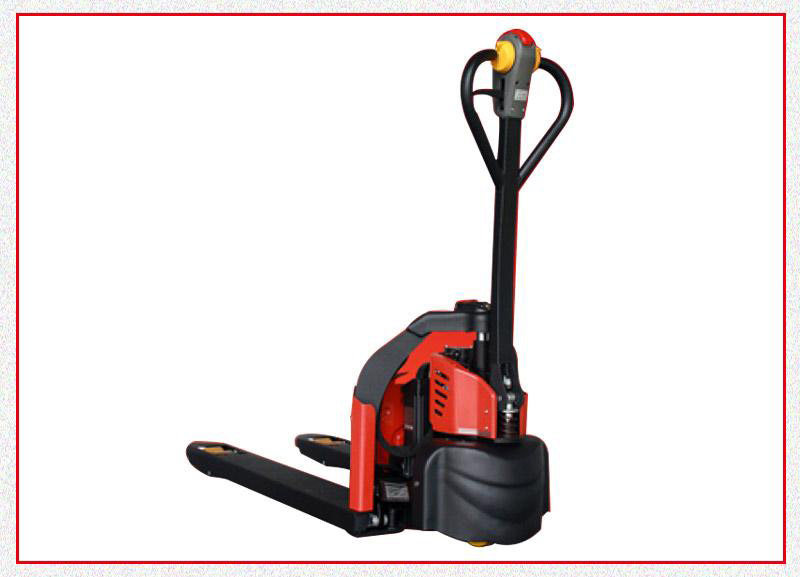

Walking electric truck

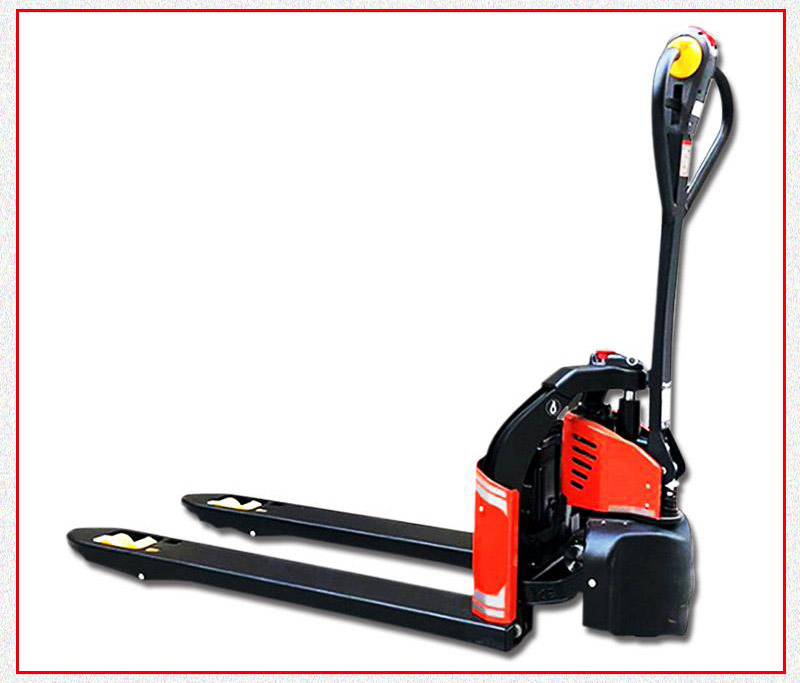

Economical electric power pallet jack is suitable for ultra narrow passages

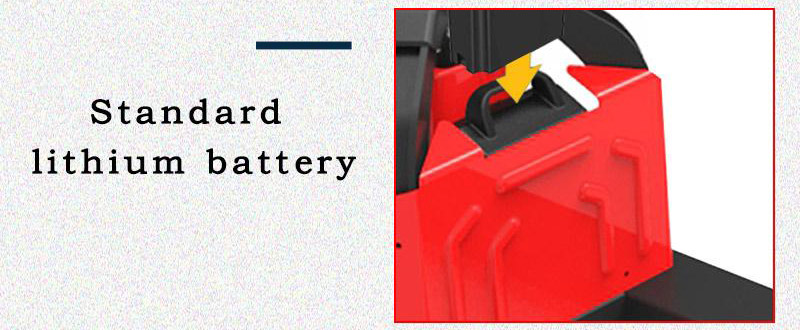

Economical electric power pallet jack is suitable for ultra narrow passages.Small drivable pallet jack at discounted prices are an excellent alternative to manual trucks. Small electric single pallet jack uses a lithium battery for easier replacement.- Price : -
- Min. Order : 1

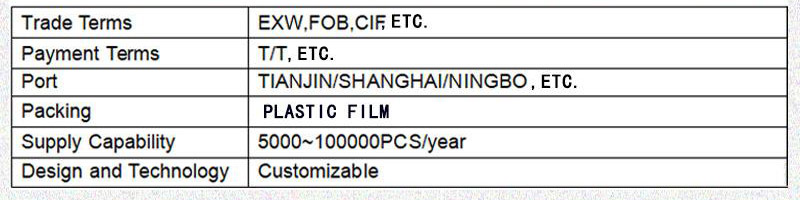

- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like- Video
- Description
- Reviews
- Download

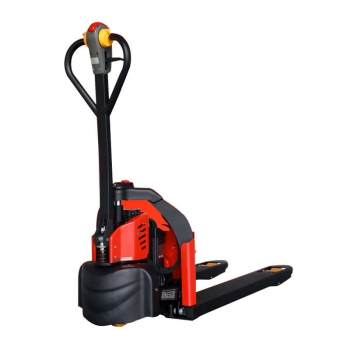

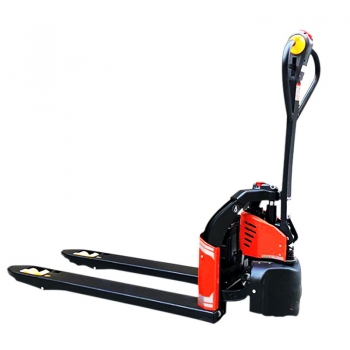

Economical electric power pallet jack is suitable for ultra narrow passages
| model | UNIT | EPT12-EZ | |
| Dynamic form | electric | electric | |
| Drive form | Small drive | Big drive | |
| Operation type | walk | walk | |
| Load | kg | 1200 | 1200 |
| Load center distance | mm | 600 | 600 |
| Carrying length | mm | 950/880 | 950/880 |
| Wheelbase | mm | 1190/1120 | 1190/1120 |
| Self weight | kg | 116 | 130 |
| Axle load, full load drive end / load end | kg | 406/910 | 420/910 |
| Axle load, no-load drive end / carrier end | kg | 96/20 | 110/20 |
| Tire type, drive wheel / load wheel | PU/PU | PU/PU | |
| Drive wheel size (diameter * width) | mm | 130*55 | 210*70 |
| Bearing wheel size (diameter * width) | mm | 80*60(74*88) | 80*60(74*88) |
| Balance wheel size (diameter * width) | mm | ||
| Drive wheel, balance wheel / load wheel number | mm | 1*/4(1*/2) | 1*/4(1*/2) |
| Standard maximum lifting height | mm | 115 | 115 |

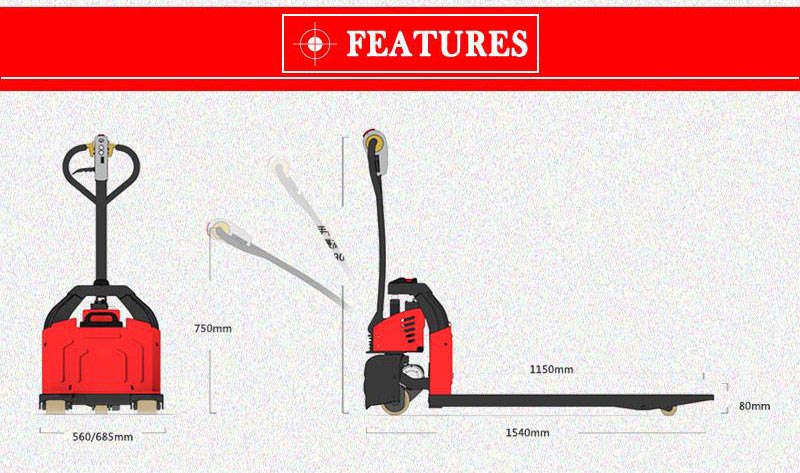

| Operating position handlebar minimum/maximum height | mm | 750/1190 | 750/1190 |
| Fork lowering rear fork height | mm | 80 | 80 |
| Vehicle length | mm | 1540 | 1540 |
| To the vertical height of the fork | mm | 390 | 390 |
| Overall width | mm | 560(685) | 560(685) |

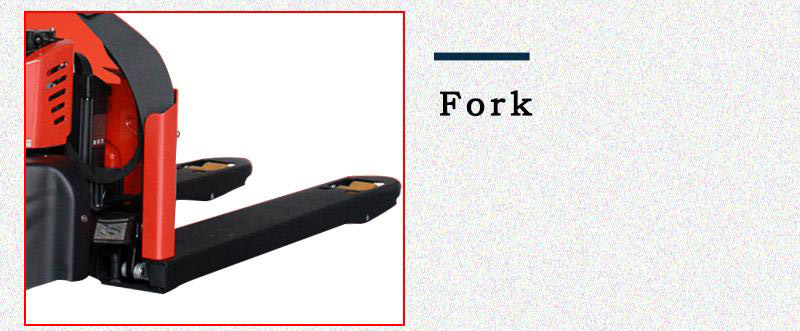

| Fork size | mm | 53/150/1150 | 53/150/1150 |
| Outer fork width | mm | 560(685) | 560(685) |
| Ground clearance at the center of the wheelbase | mm | 27 | 27 |
| The tray has a channel width of 1200*1000 | mm | 1640 | 1640 |
| The tray has a channel width of 800*1200 | mm | 1840 | 1840 |
| Turning radius | mm | 1390 | 1390 |
| Walking speed, full load / no load | km/h | 38/4 | 4/45 |
| Lifting speed, full load / no load | m/s | 0.02/0.025 | 0.02/0.025 |
| Falling speed, full load / no load | m/s | 0.06/0.03 | 0.06/0.03 |
| Maximum grade, full load / no load | 2/8 | 4/10 | |
| Brake type | electric | electric | |
| Drive motor rated power S2 60 minutes | kw | 0.45 | 0.65 |
| Lifting motor rated power S3 15% | kw | 0.5 | 0.5 |
| type of battery | Li-ion | Li-ion | |
| Battery voltage / nominal capacity K20 | V/Ah | 24/20 | 24/20 |
| Battery weight | kg | 3.7 | 3.7 |
| Theoretical energy consumption | kwh/h | 0.16 | 0.16 |
| Drive control type | DC | DC | |
| Noise level | <74 | <74 | |
Economical electric power pallet jack is suitable for ultra narrow passages.Small drivable pallet jack at discounted prices are an excellent alternative to manual trucks. Small electric single pallet jack uses a lithium battery for easier replacement.
Economical electric power pallet jack is suitable for ultra narrow passages.Small drivable pallet jack at discounted prices are an excellent alternative to manual trucks. Small electric single pallet jack uses a lithium battery for easier replacement.

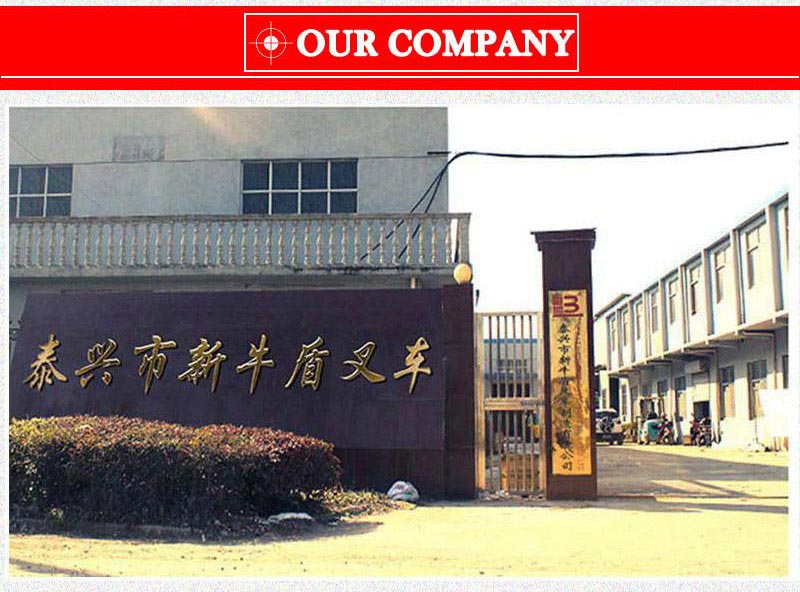

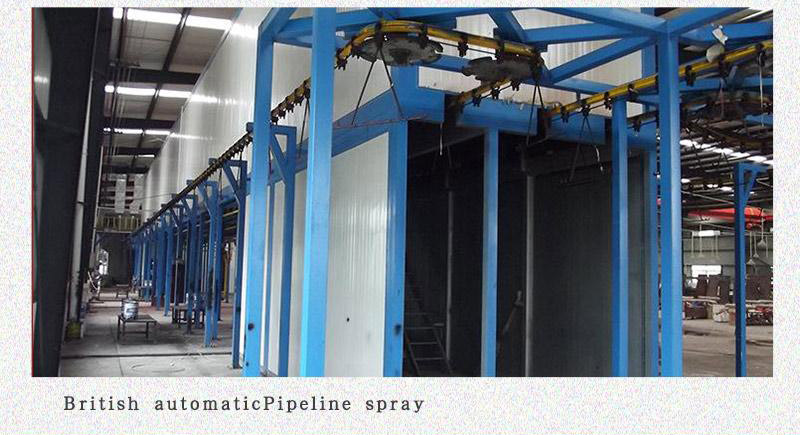

NEW NEWTON(TAIZHOU)FORKLIFT TRUCK CO. TLD is located in Taixing City, Jiangsu Province. It covers an area of about 4,000 square meters and has about 20 high-tech talents. It has more than 15 years of experience in storage equipment and has large-scale automatic assembly line equipment. It is specialized in electric storage equipment and forklifts. A global trading company that designs, manufactures and services, specializing in electric forklifts and vans. Strategic cooperation with nearly 15 large-scale commercial and logistics companies at home and abroad. The company has passed the ISO quality system international standard certification; obtained the "GS" and "CE" certification and the "TX" certification for various products; it has a number of patents granted by the State Intellectual Property Office. It can produce 1 million products per year and has served more than 1000 customers worldwide. It can provide customers with “one-stop” services including design, manufacturing, testing and assembly. After 5475 days, our products have been praised as “0” by customers. "Safety accident", "0 emission energy saving", with "9000H quality assurance" and "7 * 24H after-sales service" high-quality products. The company regards “letting manpower to be a history” as our driving force. On this basis, we are constantly pursuing innovation and continuous breakthrough to provide more commercial value and environmental protection power storage equipment for the global market. NEW NEWTON has been widely received and favored by domestic and foreign customers for its beautiful appearance, high quality and comprehensive service, safe and reliable, and cost-effective products. The products have been exported to many countries and regions around the world. The international, professional and green standards have become the most respected forklift brand in the world. Our electric forklifts use zero discharge and zero pollution. The first time we truly solve the environmental problems of the forklift industry, it is especially suitable for the high environmental protection requirements of food, medicine, supermarket, cold chain, airport and other industries.
1. How about your quality control before shipment?
All products will have been strictly quality checked and tested in house before packing. All
products will be well packed before shipping.
2. How to place an order?
Please email us or Trademanager or call us to tell us the detailed requirements of the products
you need (load capacity, height increase, etc.) and we will send you our offer within 24 hours.
If you have no problem, please send us your purchase order, or you can ask us to send you a
formal invoice for the order.
3. Can you send the machine to my factory in other city to load the container?
Yes, please tell us the detail address, we can arrange to send your factory in time.
4. Are the forklift trucks covered by a warranty?
Yes. All our machines carry a full 1 year major parts warranty.
5. Can I get discounts?
Yes, for big order, old customer and frequent customers, we give reasonable discounts.
6. If I want to quote, what information should I provide?
Provide the relevant functions you need to use, as well as the load, lift height, and electric
voltage.
7. How long is the warranty?
Generally the warranty is one year, we can provide you free spar parts if broken within
warranty period.
