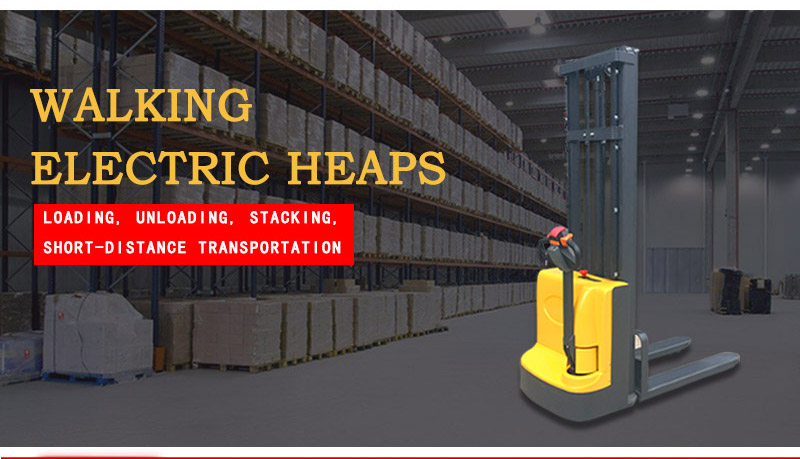

Walking all-electric stacker
Portable walking fully electric stacker heavy load cylinder lifetime maintenance
The walking fully electric stacker adopts a heavy-duty sealing cylinder to prevent oil leakage and low maintenance cost. Cost-effective walking electric stacker in fully electric stacker, and the use of lightweight and wear-resistant nylon wheels is used- Price : -
- Min. Order : 1
- PaymentTerms : T/T、L/C、Western Union、Alipay
- Lead Time : Shipment within 15 days of receipt of the full payment
May you like
- Video
- Description
- Reviews
- Download
Portable walking fully electric stacker heavy load cylinder lifetime maintenance
New Newton (Taizhou) forklift truck co.,ltd5. The factory covers an area of more than 5,000 square meters and has a production workshop of more than 3,600 square meters. The factory has a modern intelligent production line and a complete technical system. It has a large hydraulic press machining center, large-scale EDM cutting, electric welding robot, large surface treatment machine, drying line and fully automatic injection molding line imported from the UK. The production capacity of the plant has reached the production level of 1 million units per year.

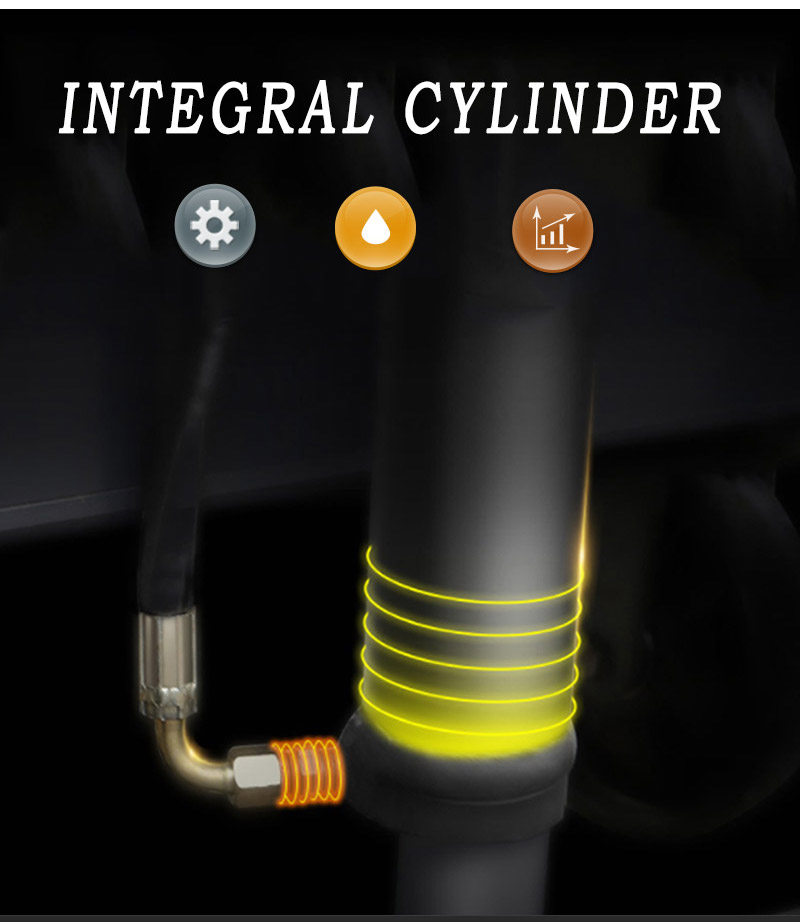

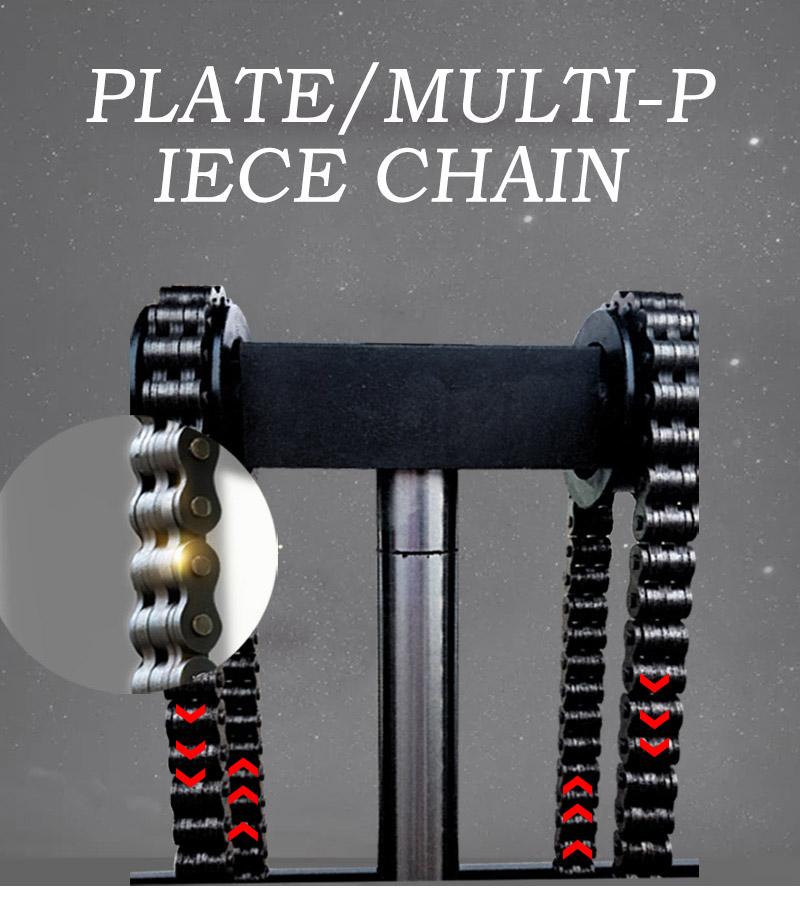

The walking fully electric stacker adopts a heavy-duty sealing cylinder to prevent oil leakage and low maintenance cost. Cost-effective walking electric stacker in fully electric stacker, and the use of lightweight and wear-resistant nylon wheels is used for up to 3 years. The walking fully electric stacker adopts a heavy-duty multi-piece chain with a maximum load capacity of 2 tons.
| model | LBCDD-10/15(C)-16/25/30/35-WA |
| Material |
Q235 (red) 345B (sliver) |
| Load (kg) | 1000/1500 |
| Highest point load (kg) |
1000/800/700/500/300 1500/1200/1050/900/750 |
| Power type | electric |
| Operation type | walk |

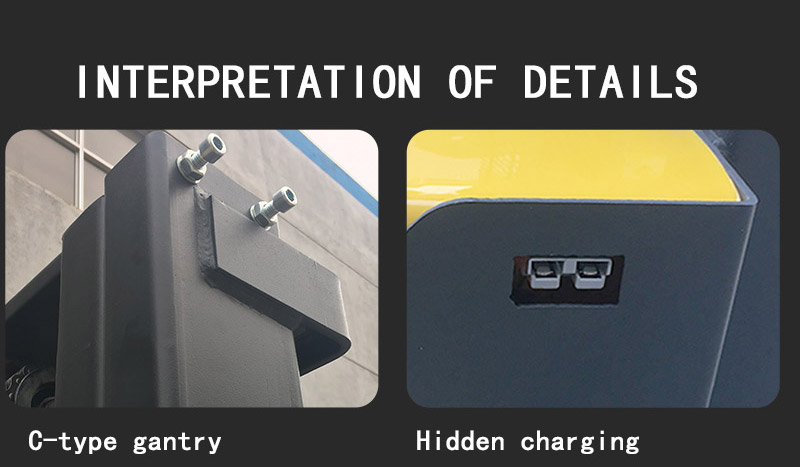

| Form of steel | C |
| Lifting height (mm) | 1600/2000/2500/3000/3500 |
| Frame static height (mm) |
2065/1565/1815/2065/2315 1990/1490/1740/1990/2240 |
| After lifting the total height (mm) |
2065/2532/3032/3532/4032 2045/2045/2950/3450/3950 |
| Load center distance (mm) | 500 |
| Fork minimum clearance from the ground(mm) | 30 |
| Fork clearance (mm) | 90 |
| Turning radius (mm) | 1280 |
| Minimum channel requirement (mm) | 2000 |
| Total body width (mm) | 800 |
| Overall length (mm) | 1860 |
| Fork width (mm) | 560/700 |

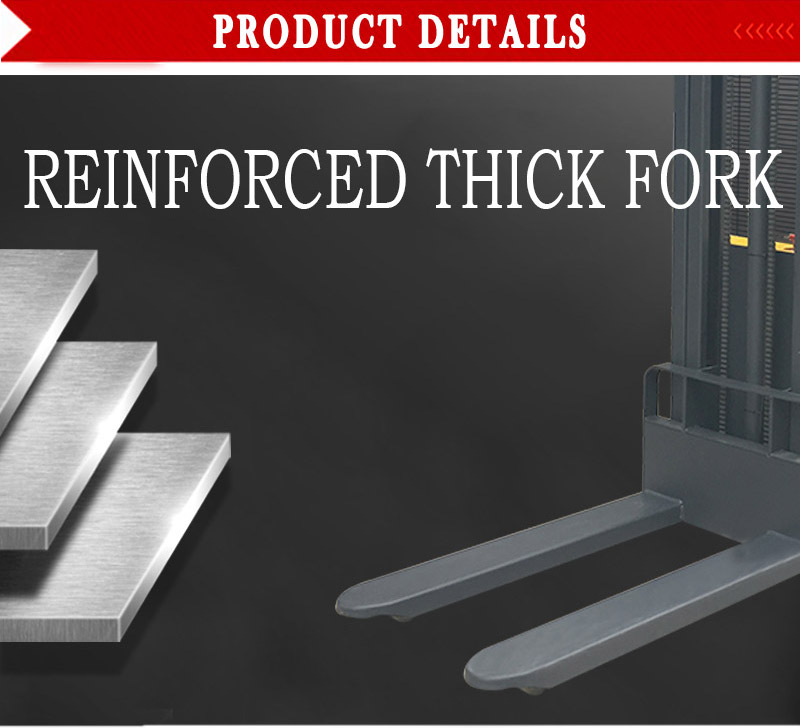

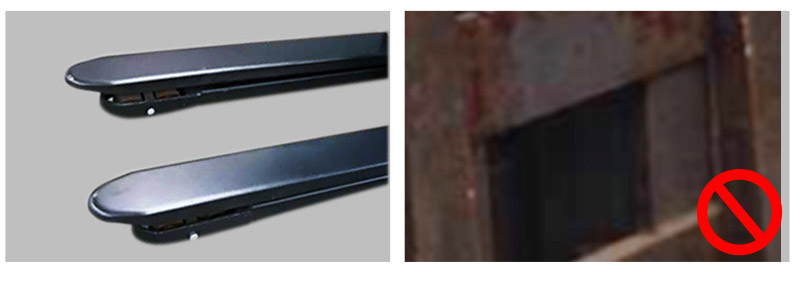

| Fork size ( mm) | 1150*160*55 |
| Leg length/width (mm) | 925/100 |
| Inside the leg (mm0 | 300/420 |
| Lifting speed (full load / no load) (mm/ s) | 100/150 |
| Falling speed(full load / no load) (mm/ s) | 150/130 |
| Driving speed (full load / no load) (m / h) | 4000/4200 |
| Maximum gradient (full load / no load) (°) | 3/11 |
| Tire | Polyurethane |
| Tire size (drive wheel/load wheel/balance wheel) (mm) | φ210*75/80*70/115*55 |

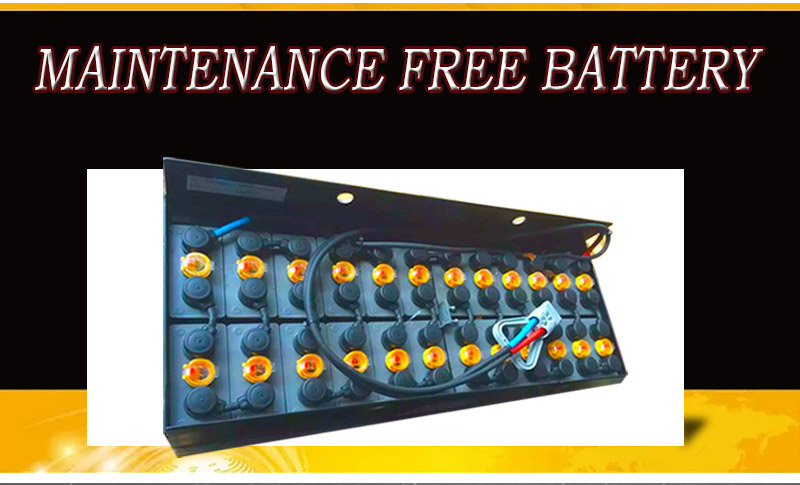

| Battery (V/AH) |
24/80 (red) 24/120 (sliver) |
| Battery size (mm) | 361*170*250 |
| Lift the motor |
1.5KW (red) 2.2kw (sliver) |
| Walking motor | 0.75KW |
| Hydraulic oil | 46# |
| Steering type | mechanical |
| Total Weight(KG) | ≈450/500 |
| Noise level dB (A) | <74 |
The walking fully electric stacker adopts a heavy-duty sealing cylinder to prevent oil leakage and low maintenance cost. Cost-effective walking electric stacker in fully electric stacker, and the use of lightweight and wear-resistant nylon wheels is used for up to 3 years. The walking fully electric stacker adopts a heavy-duty multi-piece chain with a maximum load capacity of 2 tons.
