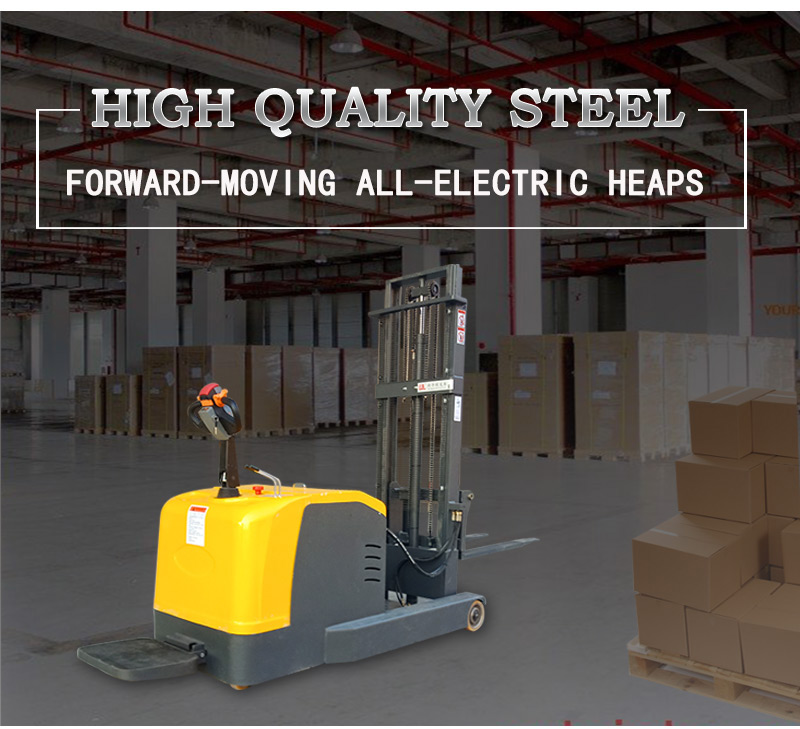

Forward all electric stacker

Forward all electric stacker

2T economy reach lift truck 210AH high power battery reach forklift for sale
Reach lift truck (1)
Reach lift truck (2)
Reach lift truck (3)
Reach lift truck (4)

2T economy reach lift truck 210AH high power battery reach forklift for sale

The electric reach lift forklift adopts 210AH high-power battery, which has long service life and increases work efficiency. The electric reach lift truck adopts a high-power motor, which makes the lifting smooth and the cargo is lifted fast.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
  1. Video
  2. Description
  3. Reviews
  4. Download

2T economy reach lift truck 210AH high power battery reach forklift for sale

reach lift forklift

New Newton(Taizhou)forklift truck co.,ltd is a global company specializing in the design, manufacture and service of electric storage equipment and forklifts. The company's main product market share and sales have been the industry priority for many years, forming a strong core competitiveness and brand influence. New Newton(Taizhou)forklift truck co.,ltd​ has developed a number of new products with independent intellectual property rights, and its technical level has reached domestic leading level. The company has grown into a well-known warehousing, logistics and handling vehicle manufacturer in China. Its product line has expanded from light and small handling vehicles to electric storage vehicles, and has taken a leading position in the mid-range and mid- to high-end markets of industrial vehicles.

reach lift forklift 1

reach lift forklift 2

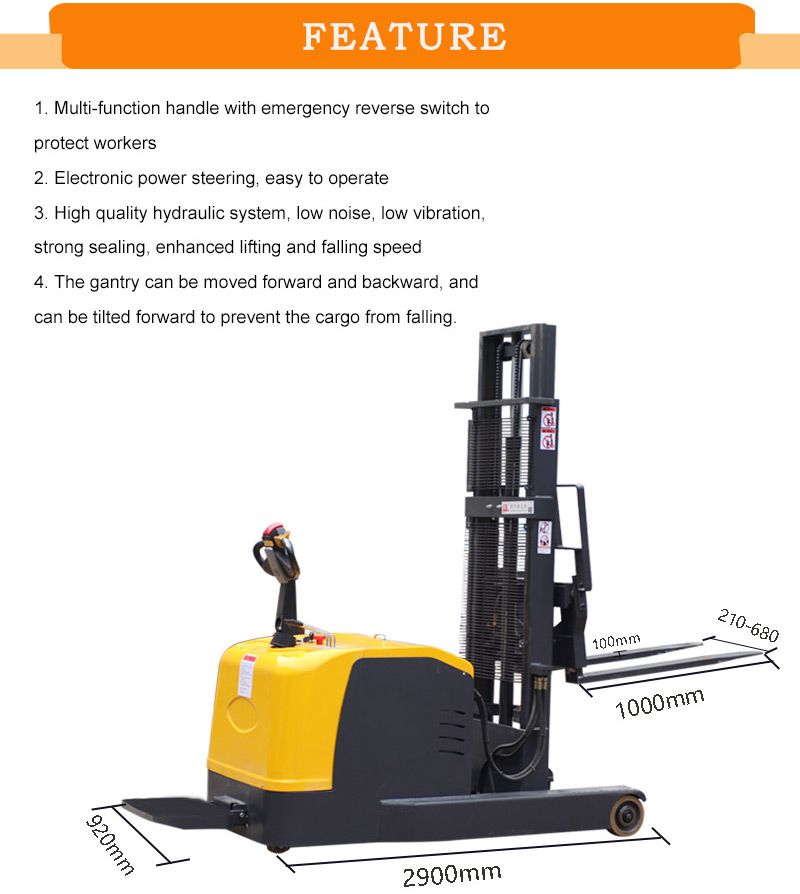

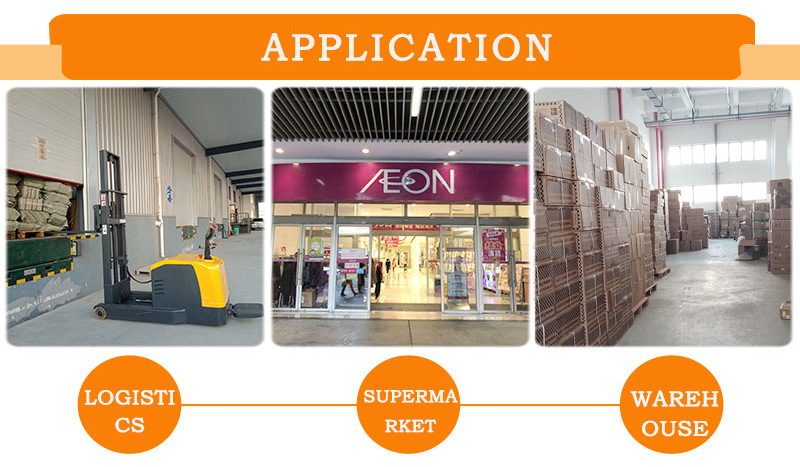

The electric reach lift forklift adopts 210AH high-power battery, which has long service life and increases work efficiency. The electric reach lift truck adopts a high-power motor, which makes the lifting smooth and the cargo is lifted fast. The electric reach lift forklift has the function of leaning forward and backward, which is convenient for handling goods, and has wide application range and no obstacles.

reach lift forklift 3

model LBCQD-120(C/H)-30-SB
Load (kg) 2000
Form of steel C/H
Lifting height (mm) 30
Frame static height (mm) 2090
After lifting the total height (mm) 3760
Load center distance (mm) 500
Before and after the tilt angle 3/6
Forward distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Turning radius (mm) 1500
Minimum channel requirement (mm) 2560
Total length (No pedals) (mm) 2260/2360
Total body width (mm) 1000
Fork width (mm) 210-680

Number of front/rear wheels (*=drive wheel )

2/2+1*
Front / rear wheel size (mm) φ250*80/200*80/125*50
Track (mm) 1450
Rear wheel track (mm) 950
Fork size (forging) mm 1070*120*35
Lower fork the height from the ground (mm) 50-110
Lifting speed (full load / no load) (m / s) 0-0.12/0-0.2
Falling speed (full load / no load) (m / s) 0-0.2/0-0.28
Driving speed (full load / no load) (m / h) 5000/5500
Maximum gradient (full load / no load) (°) 5.0/8.0
Tire Polyurethane
Driving method Standing steer  type
Turn Mechanical steering
Braking method Electromagnetic brake
Battery (V/AH) 24/210-240
Lift the motor 3.3KW
Walking motor 1.5KW
Hydraulic oil 46#
Total Weight(KG) ≈2700
Noise level dB (A) <70

reach lift forklift 4

Reach lift truck

Reach lift truck 1

Reach lift truck 2

Reach lift truck 3

Reach lift truck 4

reach forklift for sale

reach forklift for sale 1

The electric reach lift forklift adopts 210AH high-power battery, which has long service life and increases work efficiency. The electric reach lift truck adopts a high-power motor, which makes the lifting smooth and the cargo is lifted fast. The electric reach lift forklift has the function of leaning forward and backward, which is convenient for handling goods, and has wide application range and no obstacles.

reach forklift for sale 2

reach forklift for sale 3

reach forklift for sale 4



FAQ

1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

    2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

    3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

    4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity

    Size

    Load

    Features

    Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order.  Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date.
