The three-wheel electric forklift truck is energy efficient and is the most productive forklift machine. electric forklift truck are available in a variety of sizes and models depending on the user's usage. The design of the forklift machine is ergonomic

Product Specification:
  • Price : -
  • Min. Order : 1

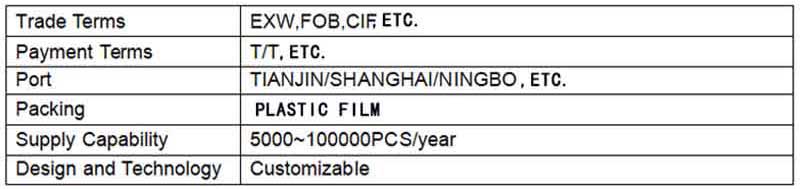

  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

electric forklift truck

model LBCPD-15/18/20(C/H)-16/20/25/30/35
Load (kg) 1500/1800/2000
Form of steel C/H
Lifting height (mm) 1600/2000/2500/3000/3500
Frame static height (mm) 2150/1950/1950/2150/2400
After lifting the total height (mm) 2300/2650/3150/3650/4150
Load center distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Wheelbase (mm) 1540
Turning radius (mm) 3460
Minimum channel requirement (mm) 3300
Minimum ground clearance (body / gantry) (mm) 120/120
Overhead guard height (mm) 1940
Total length (with fork / without fork) (mm) 3150/2150
Total body width (mm) 940
Fork width (mm) 210-700

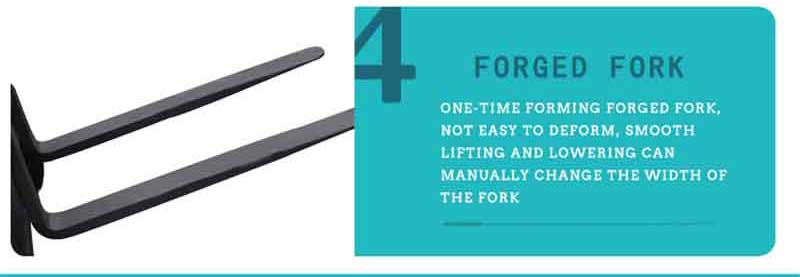

Fork size (forging) mm 1000*100*35
Chassis height from the ground (mm) 80
Number of front / rear wheels (*=drive wheel) 2/2+1*
Front/rear auxiliary wheel size (mm) 590*179/250*80
Front track (mm) 980
Front suspension (mm) 430
Lifting speed (full load / no load) (mm/s) 100/140
Falling speed  (full load / no load) (mm/s) 260/120
Driving speed (full load / no load) (km / h) 4.5/5.5
Maximum gradient (full load / no load) (mm / s) 5.0/8.0
Tire Vacuum pneumatic tire/Solid rubber tires
Driving method Sitting and driving
Drive form electric
Braking method Electromagnetic brake
Battery (V/AH) DC24/120AH*4P

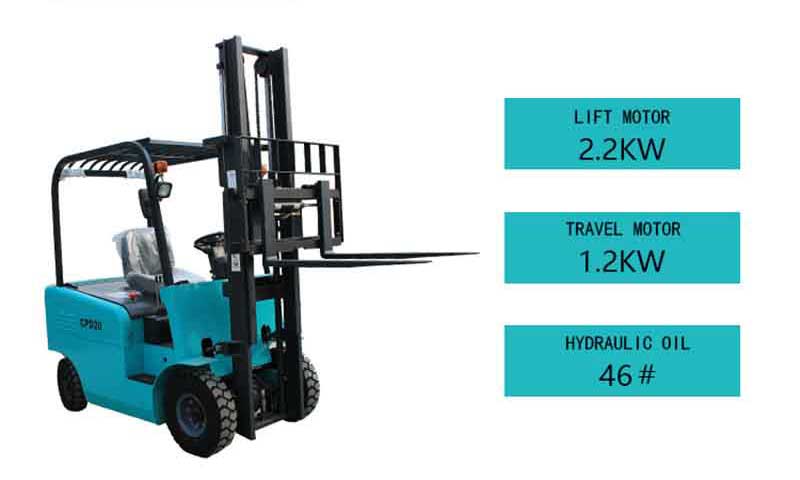

Lift the motor 2.2KW
Walking motor 1.2KW
Hydraulic oil 46#
Total Weight(KG) ≈1850/2150/2350

electric forklift truck 1

electric forklift truck 2

electric forklift truck 2

electric forklift truck 3

electric forklift truck 4

electric forklift truck 5

electric forklift truck 6

electric forklift truck 7electric forklift truck 8

forklift machine

forklift machine 1

forklift machine 2

forklift machine 3

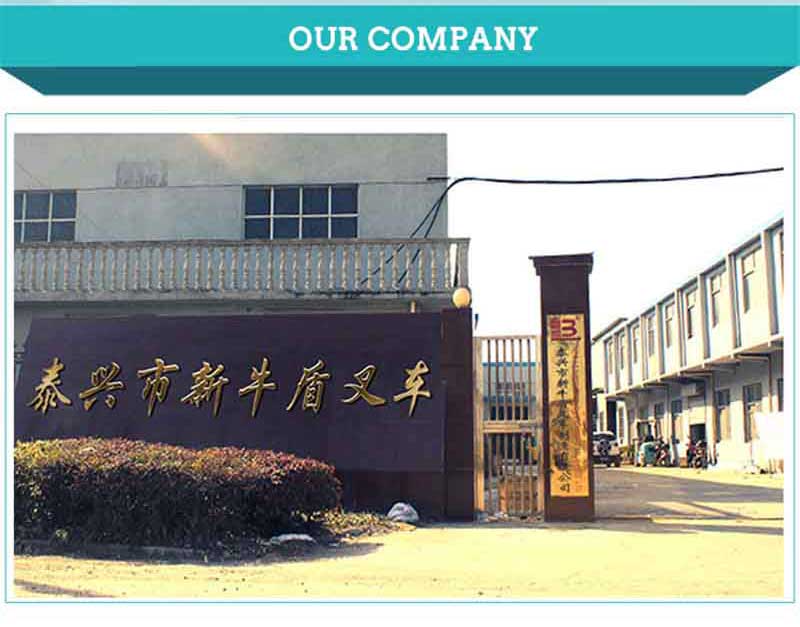

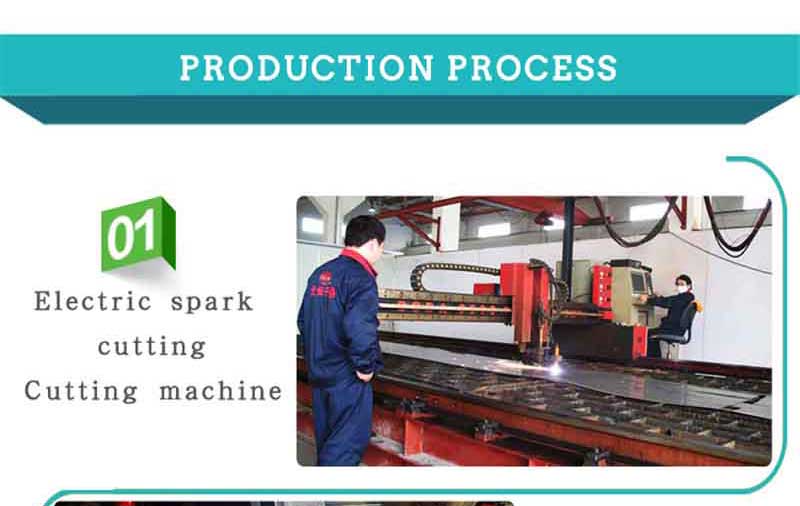

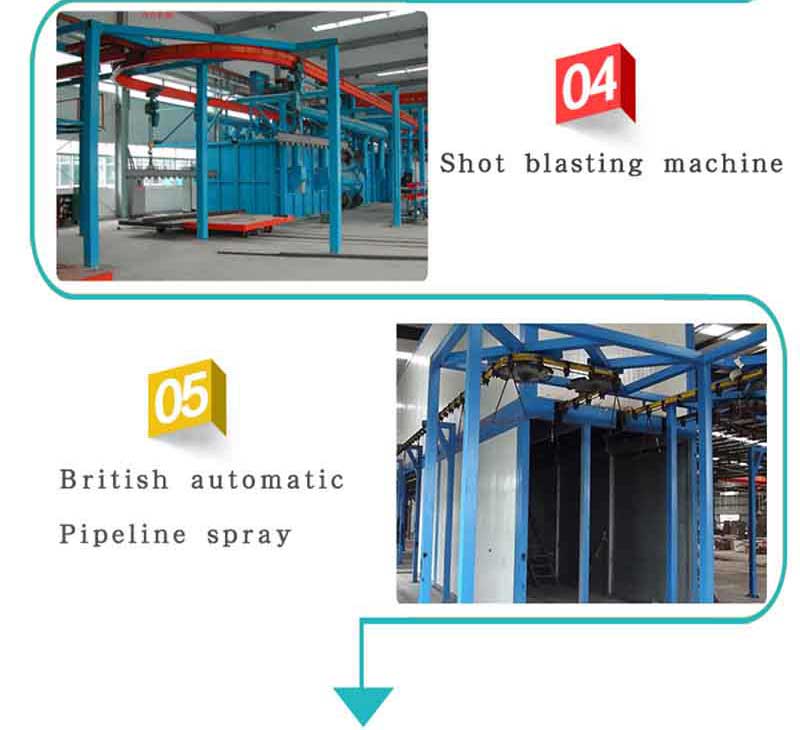

forklift machine 4NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

forklift machine 5

forklift machine 6

forklift machine 7

forklift machine 8

forklift machine 9

forklift machine 10

1. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

2. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

3. Do you offer samples available?

Yes, samples are available. Sample lead time 3-5 days generally.

4. What’s the advantage of your company?

We are experienced manufacturers and overseas distributors. Our products have been exported to more than 110 countries. An independent research team focused on the design and production of material handling equipment. The professional service team will provide feedback to customers within 24 hours.

5. Why we can choose you?

Reliable - we are real companies, we strive for excellence

Professional - we provide the products you want

Factory - we have a factory, so the price is reasonable

Service - we have a strong sales team and after-sales team, so the service is very fast

6. How about the price? Can you make it cheaper?

The price depends on the item your demand (shape, size, quantity)

Beat quotation after receiving full description of the item you want

7. How can I get the after-service?

We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems, we also send the spare parts, but you should pay.

For our range pallet truck it is lifelong maintenance.
