Factory direct forward-shifting full electric forklift pallet hydraulic stacker

The electric narrow aisle forklift body is streamlined, with a small turning radius, a solid body, light and flexible movement, no noise, no pollution, long working time on a single charge and reliable performance.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

Factory direct forward-shifting full electric forklift pallet hydraulic stacker

electric pallet stacker for sale 4

electric pallet stacker for sale 5

electric pallet stacker for sale 6

model LBCQD-20(C/H)-30-SB
Load (kg) 2000
Form of steel C/H

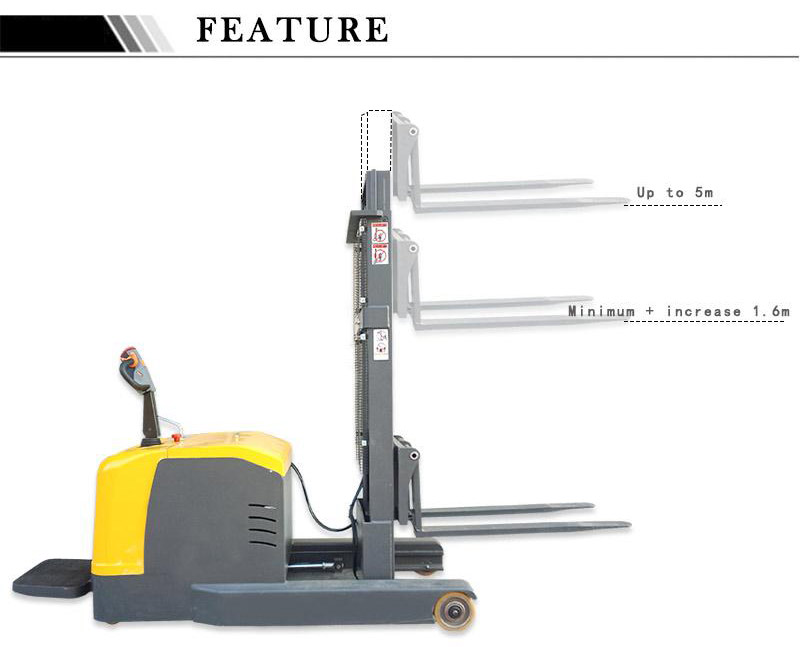

Lifting height (mm) 3000
Frame static height (mm) 2090
After lifting the total height (mm) 3760
Load center distance (mm) 500
Before and after the tilt angle 3/6
Forward distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Turning radius (mm) 1500
Minimum channel requirement (mm) 2560
Total length (No pedals) (mm) 2260/2360
Total body width (mm) 1000
Fork width (mm) 210-680

Number of front/rear wheels (*=drive wheel )

2/2+1*
Front / rear wheel size (mm) φ250*80/200*80/125*50
Track (mm) 1450
Rear wheel track (mm) 950
Fork size (forging) mm 1070*120*35
Lower fork the height from the ground (mm) 50-110
Lifting speed (full load / no load) (m / s) 0-0.12/0-0.2
Falling speed (full load / no load) (m / s) 0-0.2/0-0.28
Driving speed (full load / no load) (m / h) 5000/5500
Maximum gradient (full load / no load) (°) 5.0/8.0
Tire Polyurethane
Driving method Standing steer  type
Turn Mechanical steering
Braking method Electromagnetic brake
Battery (V/AH) 24/210-240
Lift the motor 3.3KW
Walking motor 1.5KW
Hydraulic oil 46#
Total Weight(KG) ≈2700
Noise level dB (A) <70

counterbalance pallet stacker

counterbalance pallet stacker 1

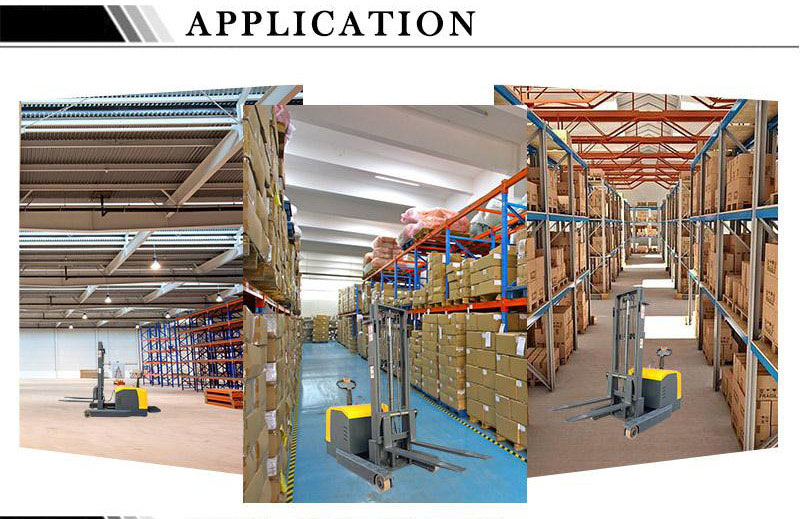

The electric narrow aisle forklift body is streamlined, with a small turning radius, a solid body, light and flexible movement, no noise, no pollution, long working time on a single charge and reliable performance. The forward-moving electric forklift is suitable for stacking and short-distance transportation of pallets and goods on shelves in warehouses, workshops and goods yards. Both single and double-sided pallets can be used.

counterbalance pallet stacker 2

counterbalance pallet stacker 3

counterbalance pallet stacker 4

counterbalance pallet stacker 5

The electric narrow aisle forklift body is streamlined, with a small turning radius, a solid body, light and flexible movement, no noise, no pollution, long working time on a single charge and reliable performance. The forward-moving electric forklift is suitable for stacking and short-distance transportation of pallets and goods on shelves in warehouses, workshops and goods yards. Both single and double-sided pallets can be used.

counterbalance pallet stacker 6

narrow aisle forklift

narrow aisle forklift 1

narrow aisle forklift 2

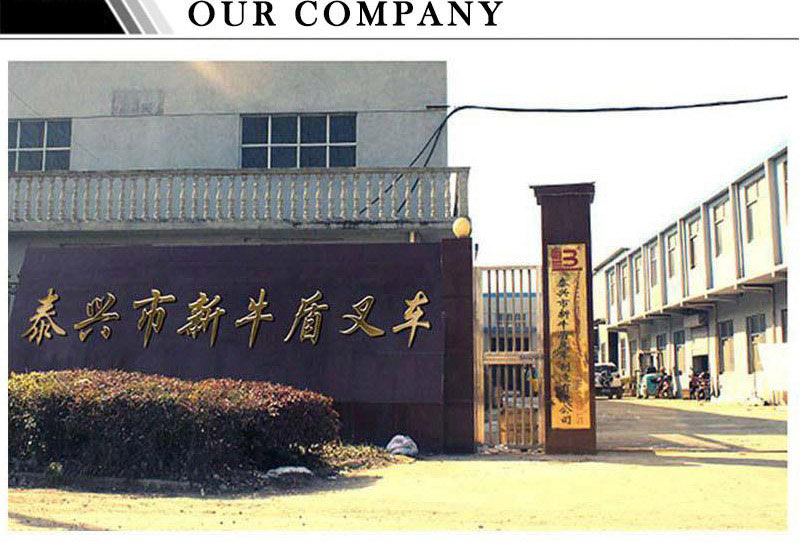

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

narrow aisle forklift 3

narrow aisle forklift 4

narrow aisle forklift 5

narrow aisle forklift 6

electric pallet stacker for sale

electric pallet stacker for sale 1

electric pallet stacker for sale 2

1. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

2. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.

3. Do you offer samples available?

Yes, samples are available. Sample lead time 3-5 days generally.

4. What’s the advantage of your company?

We are experienced manufacturers and overseas distributors. Our products have been exported to more than 110 countries. An independent research team focused on the design and production of material handling equipment. The professional service team will provide feedback to customers within 24 hours.

5. Why we can choose you?

Reliable - we are real companies, we strive for excellence

Professional - we provide the products you want

Factory - we have a factory, so the price is reasonable

Service - we have a strong sales team and after-sales team, so the service is very fast

6. How about the price? Can you make it cheaper?

The price depends on the item your demand (shape, size, quantity)

Beat quotation after receiving full description of the item you want

7. How can I get the after-service?

We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems, we also send the spare parts, but you should pay.

For our range pallet truck it is lifelong maintenance.
