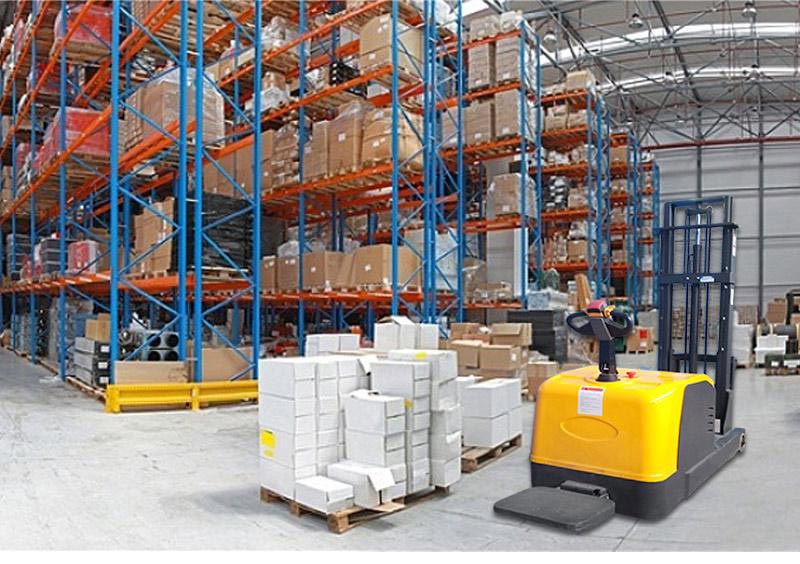

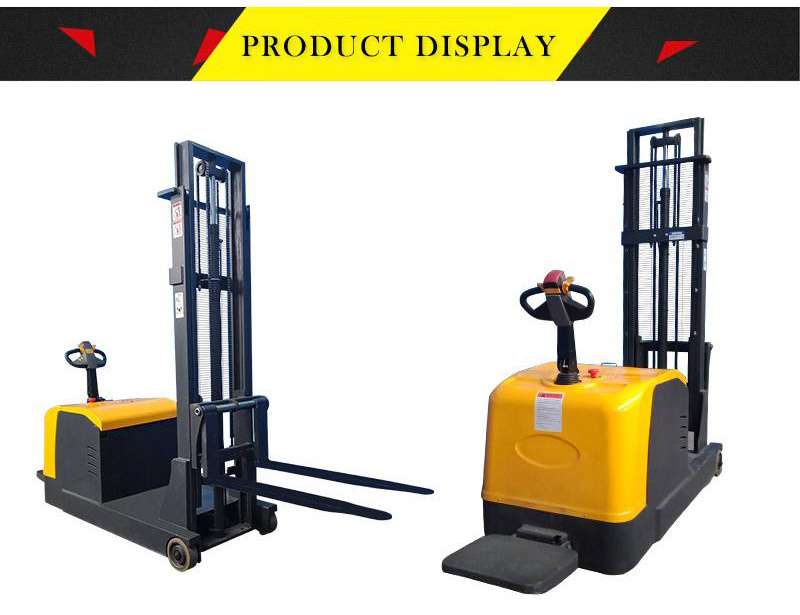

1.5-ton counterweight stacker without support legs raised 1.6M
warehouse stacker forklift (1).jpg
warehouse stacker forklift (2).jpg
warehouse stacker forklift (3).jpg
warehouse stacker forklift (4)

1.5-ton counterweight stacker without support legs raised 1.6M

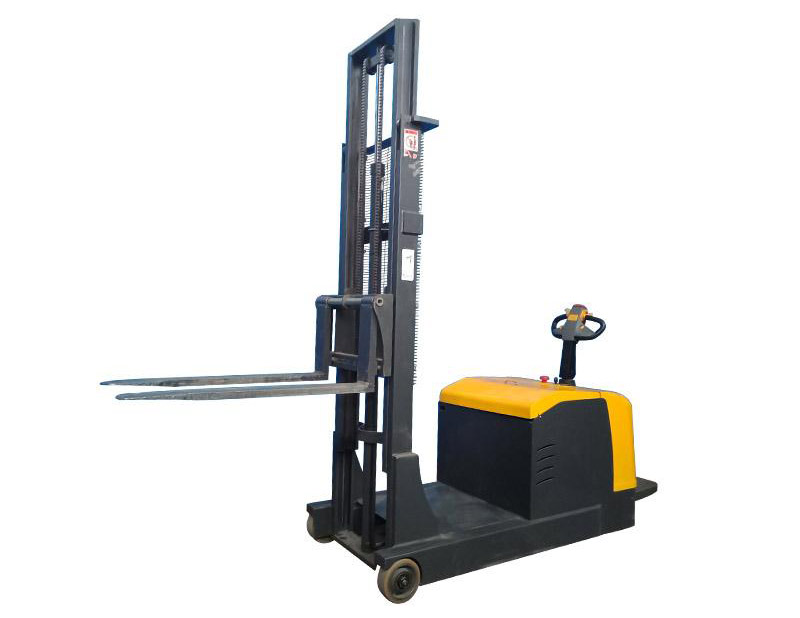

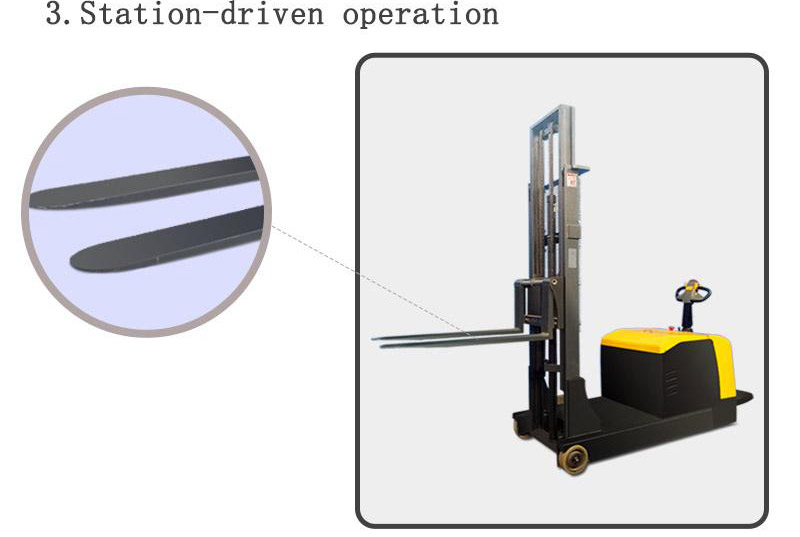

The 1.5-ton counterweight stacker straddle pallet jack has no support legs and is lifted by 1.6M. The forks are made of thickened forged steel, which is corrosion-resistant and resistant to deformation.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
iconMay you like
  1. Video
  2. Description
  3. Reviews
  4. Download

1.5-ton counterweight stacker without support legs raised 1.6M

pallet truck forklift 5

model   LBCPD-15(C/H)-16-SB
Load (KG) 1500
Form of steel   C/H
Lifting height (mm) 2500
Frame static height (mm) 2014
The maximum height of the gantry work (mm) 3500
Load center distance (mm) 500
Front suspension (mm) 130
Front axle load (full load\no load) (KG) 1170/420
Rear axle load (full load\no load) (KG) 860/3110
Front track (mm) 890
Rear track (mm) 612
Before and after the tilt angle (°) 3/6
Fork minimum clearance from the ground (mm) 55
Turning radius (mm) 1600
Minimum channel requirement (mm) 3120
Total length(No pedals) (mm) 2660
Total body width (mm) 1000
Body length (mm) 1700
Fork width (mm) 210-700
Fork size (forging) (mm) 1070*100*35
Lifting speed (full load\no load) (m / s) 1.4/1.0
Driving speed (full load\ no load) (m / h) 5500/5000
Maximum gradient (full load\ no load) (°) 10/6
Tire    (Polyurethane)

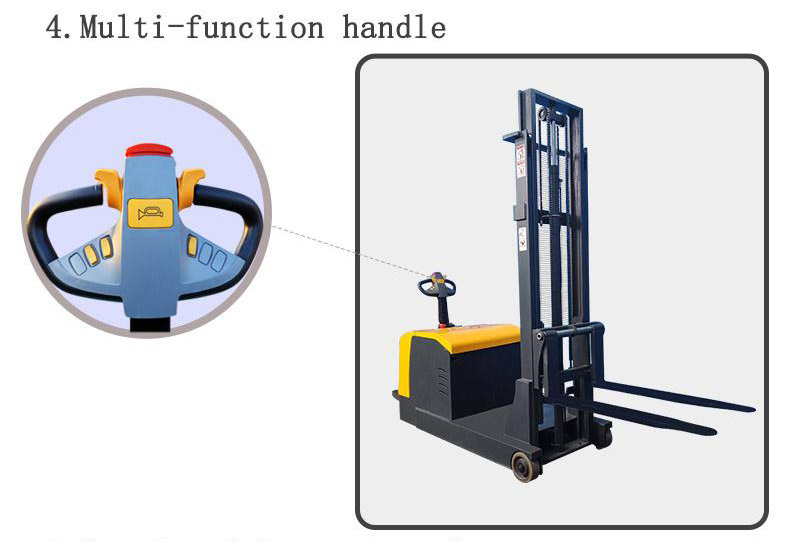

Driving method    (Standing steer type)
Braking method   (Electromagnetic brake)

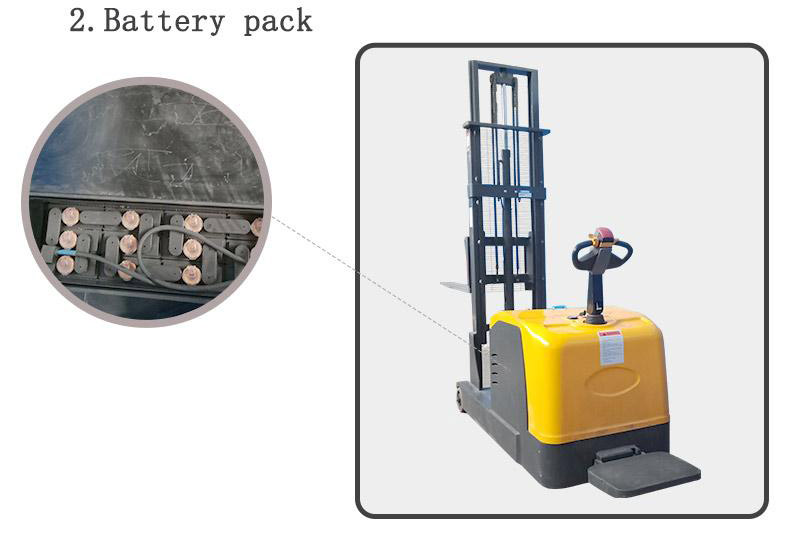

Battery (V-AH) 24/120*2P
Lift the motor (KW) 3.3
Walking motor (KW) 1.5
Hydraulic oil   46#
Total weight (KG) ≈2050
Noise level dB (dB(A)) <70

pallet truck forklift 6

pallet truck forklift 7

warehouse stacker forklift

warehouse stacker forklift 1

warehouse stacker forklift 2

warehouse stacker forklift 3

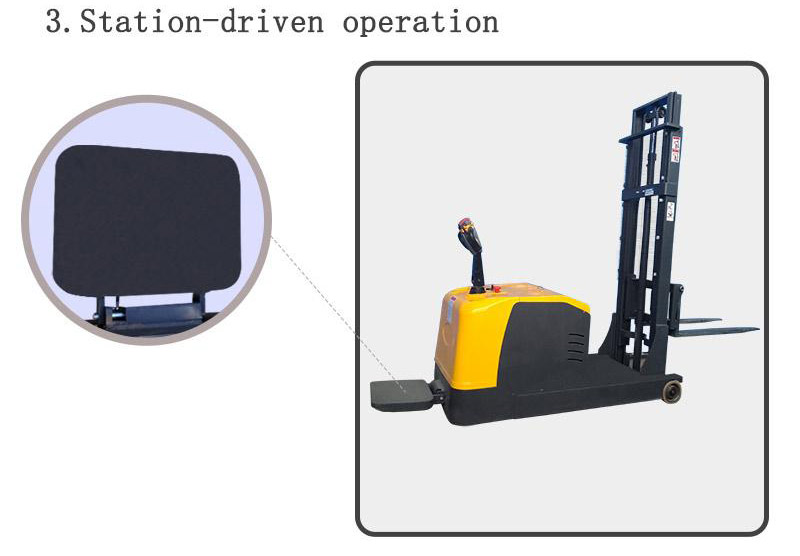

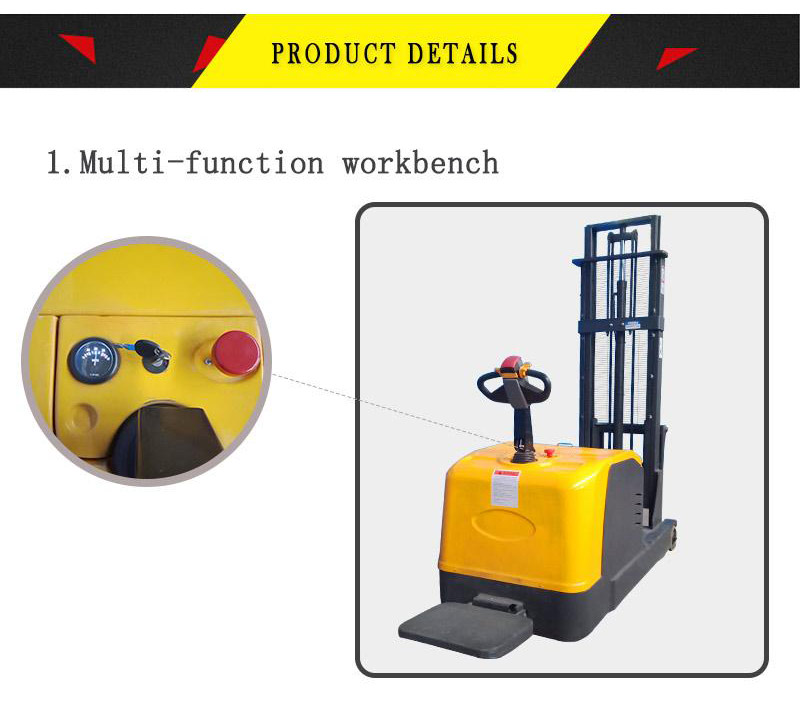

The 1.5-ton counterweight stacker straddle pallet jack has no support legs and is lifted by 1.6M. The forks are made of thickened forged steel, which is corrosion-resistant and resistant to deformation. Balanced heavy stacker pallet truck forklift the door frame can be tilted forward and backward, the cargo is stable and not easy to slip.The counterweight stacker warehouse stacker forklift adopts a clear division of operation console, which is easy and convenient to operate.

warehouse stacker forklift 4

warehouse stacker forklift 5

warehouse stacker forklift 6

straddle pallet jack

The 1.5-ton counterweight stacker straddle pallet jack has no support legs and is lifted by 1.6M. The forks are made of thickened forged steel, which is corrosion-resistant and resistant to deformation. Balanced heavy stacker pallet truck forklift the door frame can be tilted forward and backward, the cargo is stable and not easy to slip.The counterweight stacker warehouse stacker forklift adopts a clear division of operation console, which is easy and convenient to operate.

straddle pallet jack 1

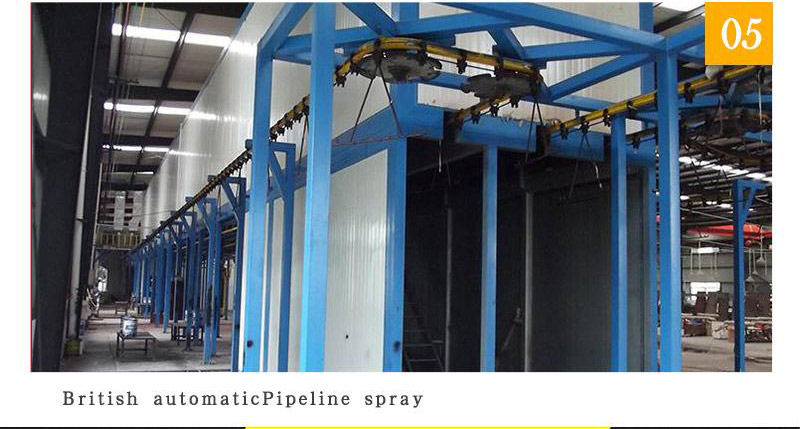

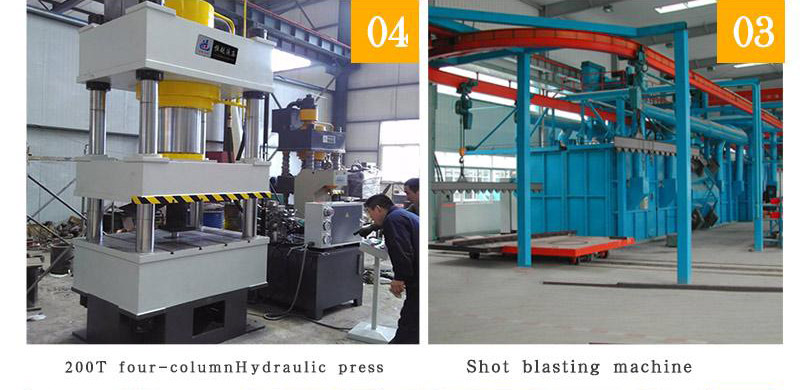

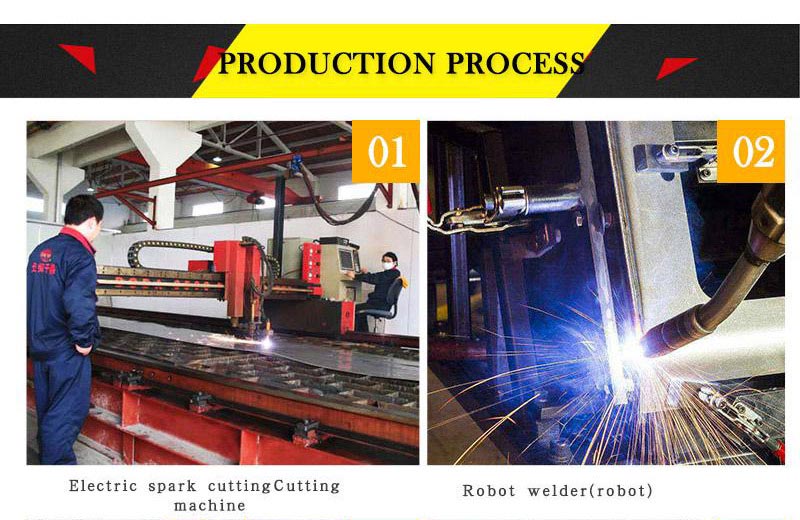

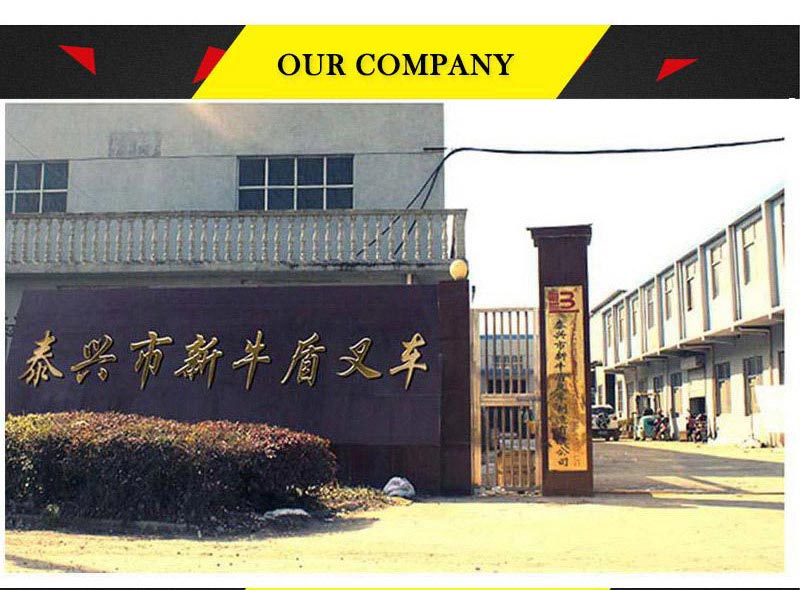

NEW NEWTON(TAIZHOU) FORKLIFT TRUCK CO.,Ltd. is a subsidiary of Tianjin Rixu Trading Co., Ltd. It is a high-tech enterprise. The brand NEW NEWTON is a newly launched series of warehousing and logistics equipment brand in recent years. The factory covers an area of more than 4,000 square meters and has a production workshop of more than 2,000 square meters. The company is engaged in the sales of forklift trucks for nearly 20 years and has been working on forklift production for nearly 10 years. In the past ten years, we have continuously developed and expanded our products. Nowadays, the mature new Newton has made customers more worry-free and save money. The company has high-tech technicians and has 100T hydraulic presses, large EDM cutting and machining centers, welding robot, large surface treatment machines, drying lines and fully automatic spray lines imported from the UK; the company’s equipment production capacity reaches the production level of 1 million sets of series of trucks and stackers.

straddle pallet jack 2

straddle pallet jack 3

straddle pallet jack 4

straddle pallet jack 5

straddle pallet jack 6

straddle pallet jack 7

pallet truck forklift

pallet truck forklift 1

pallet truck forklift 2

pallet truck forklift 3

1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

 3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

  4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity Size Load Features Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
