4 Core Selection Parameters of Narrow Aisle Double Pallet Stacker

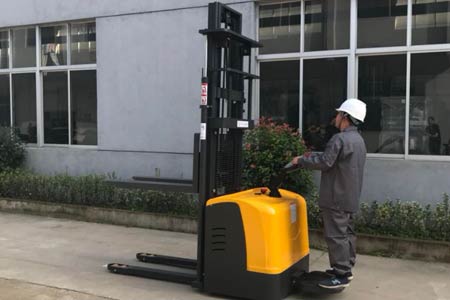

For warehouses with high-density racks and narrow aisles, you can upgrade your forklift model to boost cargo handling efficiency instead of adding more workers and trucks. The narrow aisle stand-on electric double pallet stacker can transport two pallets at one time to greatly improve working efficiency. You can judge the suitability of this machine by checking the following four core parameters to avoid wrong selection.

Minimum working aisle width This is the primary parameter to verify for narrow aisle warehouses. The double pallet stacker carries two pallets simultaneously, so its overall dimension is larger than standard single pallet stackers. Distinguish the clear aisle width and available space between rack uprights, and reserve safety clearance. Insufficient aisle width will cause scraping on racks or pallets during turning, and even make the machine unable to work on site.

Rated load and high-position load attenuation Do not only refer to the marked rated load. When lifting two pallets together, the load capacity will drop at high lifting height. Calculate the total weight of double pallets and check the residual load capacity at your maximum stacking height. Reserve safety load margin to prevent safety risks in heavy-load high-level stacking.

Maximum lifting height Confirm the lifting parameter based on the top height of warehouse racks. The maximum lifting height should exceed the top of racks for smooth cargo access. Take pallet thickness and fork height into consideration instead of selecting only according to rack height. If you plan to raise racks later, reserve extra height allowance in advance.

Battery capacity and working endurance The double pallet stacker bears heavier load and consumes power faster. Select proper battery specification according to daily shifts and handling frequency. Lithium battery models support fast charging and suit two-shift continuous operation. Lead-acid batteries have lower purchase cost for warehouses with short daily working hours, to avoid sudden power cut during operation.

As an electric stacker forklift manufacturer, we own rich manufacturing experience. We provide test sites and professional technical guidance to match forklifts with your working conditions. CE certification and one-year warranty are available. Feel free to contact us if you have purchasing demands.
