Why Pallet Truck Bends Fast? Low vs Premium Core Component Materials

Does your manual hydraulic pallet truck break down within 1–2 years? Common failures include bent forks, twisted frames and persistent hydraulic oil leakage, bringing high repair costs and production delays. These issues mostly stem from inferior raw materials for key components. Buyers of ultra-low-cost pallet trucks need to watch out for shoddy spare parts. Below is a full Manual Pallet Truck Material Quality Comparison covering three vital parts: frame steel, hydraulic cylinder and load wheels.

1. Frame Steel: Determines Anti-deformation Performance

Inferior Low-grade Material

2.0–2.5mm ordinary cold-rolled thin steel with high impurity content and low tensile strength. No double-layer reinforcement on crossbeams and forks plus thin welding seams. After long-term full-load transport, crossbeams bend easily, forks sag and the truck drifts while moving. Welds crack under heavy loads with cargo tipping risks. Marked 3-ton capacity yet safe load barely reaches 2 tons, only fit for occasional light-duty temporary use.

Premium Standard Material

3.5–5mm thick manganese steel integrated bent molding with double reinforcement on main load beams and full penetration welding on all stress points. Manganese steel features strong compression and anti-distortion performance, resisting twisting under years of full-load operation. Rated load capacity is accurate, with good rust resistance in damp warehouses. No obvious structural damage after 5–6 years of regular use.

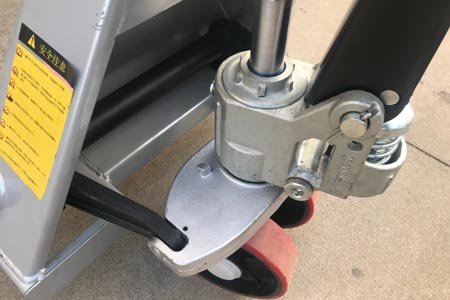

2. Hydraulic Cylinder: Root Cause of Oil Leakage & Automatic Fork Sinking

Inferior Low-grade Material

Ordinary cast cylinder tube with unpolished rough inner walls that abrade pistons quickly. Ordinary iron piston rods without anti-rust coating, plus recycled reclaimed rubber oil seals. After several months of use, lifting becomes jerky; forks sink automatically when parked with continuous oil seepage from cylinder gaps. Piston rods rust in humid conditions and scratch seals, leading to expensive cylinder replacement.

Premium Standard Material

Cold-drawn seamless precision cylinder tube with mirror-polished inner walls, stainless chrome-plated wear-proof anti-rust piston rods, paired with thickened oil-resistant nitrile rubber seals. Smooth lifting without jamming, no pressure loss or oil leakage during long idle storage. It works reliably in cold storage and chemical greasy environments, extending hydraulic service life by 3 times.

3. Load & Drive Wheels: Avoid Cracking & Floor Scratches

Inferior Low-grade Material

Wheels made of recycled waste rubber with uneven hardness. They chip and crack rapidly under load and wear fast on gravel ground. High pushing resistance with harsh loud noise; hard debris easily scratches epoxy floors, requiring full wheel set replacement within half a year.

Premium Standard Material

One-piece cast virgin PU wheels with high toughness, compression and wear resistance. Smooth silent pushing without floor scratches, oil-proof and waterproof for food workshops and clean warehouses. Thickened nylon wheels are optional for heavy-load concrete yards, offering higher hardness and strong resistance against sharp hard objects.

Summary

Check material specifications and component craftsmanship when purchasing a Manual Hydraulic Pallet Truck to avoid procurement traps and select durable, cost-effective handling equipment.
