Electric stacker suppliers provides stepless speed control of electric stacker

The vertical or horizontal position of the handle of the ride on pallet stacker is in a braking state, which improves safety. The electric stacker suppliers provides a safe power-off button for the stand up electric forklift.

Product Specification:
  • Price : -
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
  1. Video
  2. Description
  3. Reviews
  4. Download

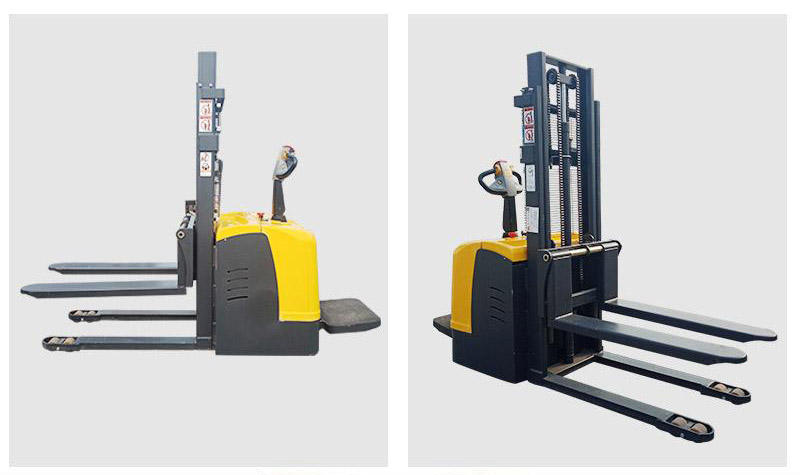

Electric stacker suppliers provides stepless speed control of ride on pallet stacker

stand up electric forklift 3

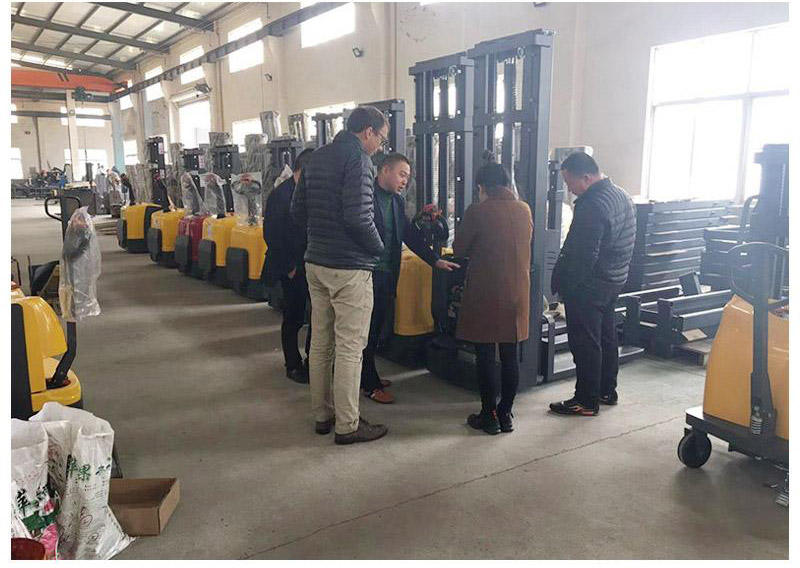

New Newton (Taizhou) forklift truck co.,ltd is a global company specializing in the design, manufacture and service of electric storage equipment and forklifts. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. With high-tech R&D center and provincial-level technology center, we have a strong global supplier team, a lean and efficient production support system and a sales and service-oriented molecular company to provide high-quality products for global users. and service.

stand up electric forklift 4

stand up electric forklift 5

stand up electric forklift 6

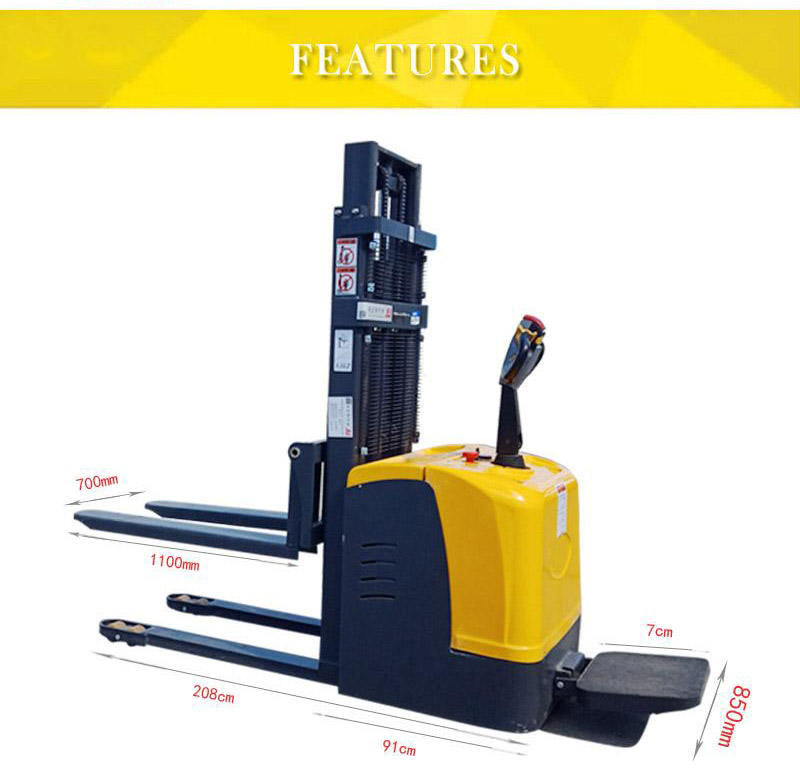

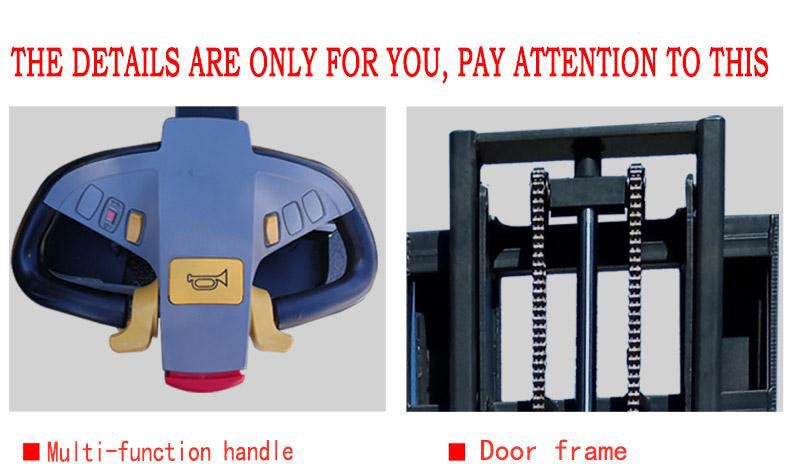

The vertical or horizontal position of the handle of the ride on pallet stacker is in a braking state, which improves safety. The electric stacker suppliers provides a safe power-off button for the stand up electric forklift. The stepless shift control handle of the ride on pallet stacker makes the operation simpler. The electric stacker suppliers provides a built-in pressure relief valve for the stand up electric forklift. The overload does not improve performance and is safer. The simplified design of the ride on pallet stacker line makes maintenance more convenient. The electric stacker suppliers provides the stand up electric forklift with Hall sensor to reduce the wear of electronic components and has a long service life.

electric stacker suppliers

Model unit LBCDD-10/15/20C/H)-16/20/25/30/35-SD LBCDD-10/15/20C/H)-40/45/50/55-SD
Load KG 1000/1500/2000 1000/1500/2000
Form of steel   C/H C/H
Lifting height mm 1600/2000/2500/3000/3500 4000/4500/5000/5500
Frame static height mm 2090/1590/1840/2090/2340 2410/2090/2910/3410/3910
After lifting the total height mm 2090/2410/2910/3410/3910 4760/5260/5760/6260
No. of front / rear wheels(x=drive) 4/2+1X 4/2+1X
Size of riving wheel / load bearing wheel / auxiliary wheel mm Φ250*80/Φ100*50/Φ80*70 Φ250*80/Φ100*50/Φ80*70
Load center distance mm 500 500
Fork minimum clearance from the ground mm 40 40
Turning radius mm 1600 1600
Minimum channel requirement mm 2464 2464
Total body width mm 850 850
Total body length(include  footboard) mm 2140 2140
Fork width mm 700 690

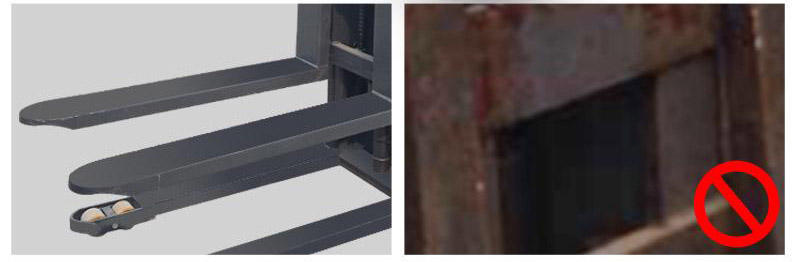

Fork size mm 1100*170*60 1100*170*60
Minimum height of fork off the ground mm 90 90
Fork leg width mm 100 100
Body height from the ground mm 30 30
Lifting speed(full load/no load) mm/s 100/80 100/80
Decline speed(full load/no load) mm /s 200/150 200/150
Driving speed(full load/no load)  m / h 5600/4000 5600/4000
Maximum gradient(full load/no load) ° 10/6 10/6
Tire   Polyurethane Polyurethane

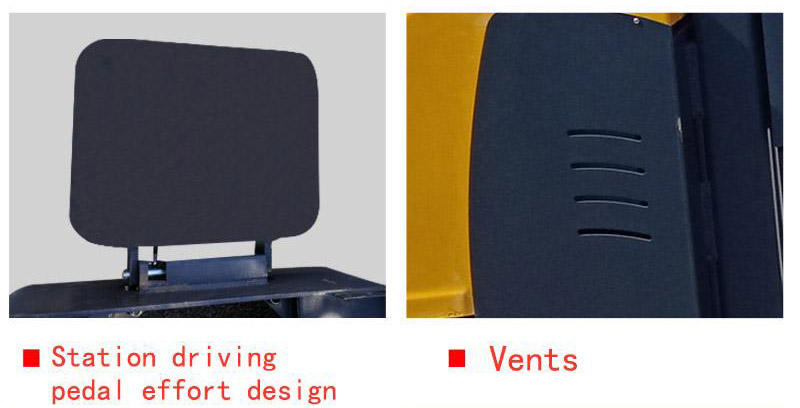

Driving method   Station drive Station drive
Braking method   Electromagnetic brake Electromagnetic brake
Battery V-AH 24V/120/210/240 24V/240
Lifting motor KW 3 3
Walking motor KW 1.5 1.5
Hydraulic oil   46# 46#
Total weight KG ≈900/1070/1100 ≈900/1070/1100
Noise level dB(A) <70 <70

electric stacker suppliers 1

electric stacker suppliers 2

electric stacker suppliers 3

electric stacker suppliers 4

electric stacker suppliers 5

ride on pallet stacker

ride on pallet stacker 1

ride on pallet stacker 2

ride on pallet stacker 3

ride on pallet stacker 4

ride on pallet stacker 5

The vertical or horizontal position of the handle of the ride on pallet stacker is in a braking state, which improves safety. The electric stacker suppliers provides a safe power-off button for the stand up electric forklift. The stepless shift control handle of the ride on pallet stacker makes the operation simpler. The electric stacker suppliers provides a built-in pressure relief valve for the stand up electric forklift. The overload does not improve performance and is safer. The simplified design of the ride on pallet stacker line makes maintenance more convenient. The electric stacker suppliers provides the stand up electric forklift with Hall sensor to reduce the wear of electronic components and has a long service life.

ride on pallet stacker 6

stand up electric forklift

stand up electric forklift 1

FAQ

1. How about the sample policy?

We can accept sample order for testing quality. But sample and express charge should be on customer’s account.

2. How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

3. How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

4. Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term, the buyer also can choose Air-transport or Ocean shipping for your requirement. When your orders reach your local nearest Sea port or River Port, the logistics company will inform you.

5. Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products.

Please feel free to back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

6. Can I visit your company?

Of course. We always with great pleasure at your service. We have a showroom in Tianjin, China. If you want to order our products and visit our company, please contact us to make an appointment.

7. Do you offer custom design?

Custom design is surely available. We have very rich experience in customizing shelves.
