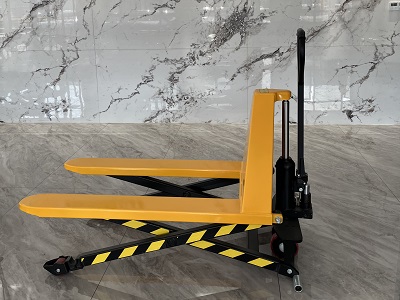

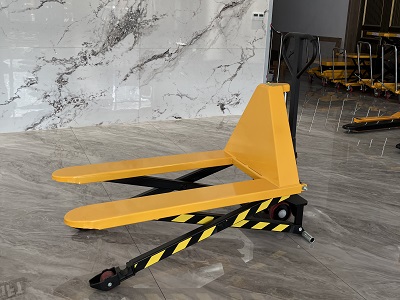

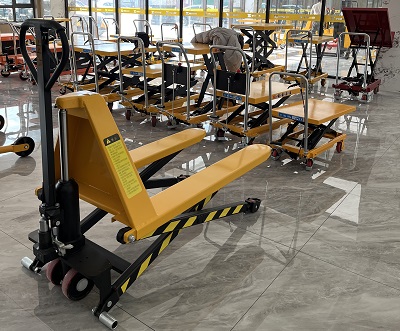

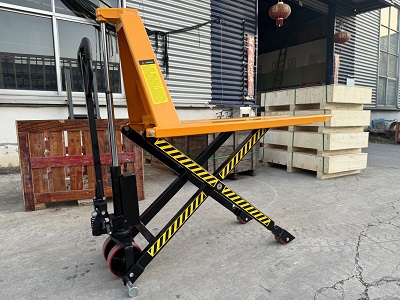

Scissor high-lift hydraulic pallet truck: manual pallet lifting platform 2-in-1

Multifunctional scissor high lifting hydraulic pallet truck

High Lifting Hydraulic TruckThis scissor high lifting hydraulic pallet truck integrates dual functions, which can not only be used as a manual pallet truck to realize the translational transportation of goods, but also can be incarnated as a lifting platform to complete the lifting operation of high and low goods. Its core advantage lies in the intelligent automatic deceleration control mechanism through the innovative design of the hydraulic valve group - whether the equipment is in a full load state or no-load operation, it can ensure a stable and constant deceleration rate, provide reliable safety guarantee for the cargo handling process, and is an ideal tool for efficient handling in modern warehousing and logistics scenarios.
Ergonomic optimization design of high-lift hydraulic pallet truck

The ergonomic handle structure greatly reduces the force intensity of the operator, and the open pallet design makes the movement of goods more labor-saving and convenient.
High Lift Hydraulic Pallet Truck High Lift System
The three-section piston rod linkage structure is adopted, and the goods can be easily lifted to a higher working height through precision hydraulic transmission to meet the needs of multi-scene operations.
Intelligent load adaptation function

Under heavy load conditions, the fork automatically triggers the speed limiting mechanism to slow down the lifting rate and effectively reduce the risk of cargo damage caused by sudden impact.
Double lateral stabilization support
Equipped with 2 sets of lateral stabilizer components, the support is automatically locked after the cargo is lifted into place, and a stable three-dimensional support structure is built to ensure the stability of the equipment under load.
Light load fast response mode
When the load is less than 150 kg, the intelligent fast hoist pump automatically activates the two-speed lifting mode, which significantly improves the operation efficiency and reduces the operation time in low-load scenarios.
The whole process of safety protection of high-lifting hydraulic pallet trucks

​

The integrated automatic deceleration control device can accurately suppress the inertial impact of the fork when it descends rapidly, and avoid damage to the goods due to the rapid descent;
When the fork is lowered to a critical height of 420 mm, the front wheel support leg and the adjustable stabilizer automatically extend and contact the ground to form a full ground fit support, which simultaneously activates the optimal braking performance and ensures the stability of the equipment when stationary.
High-strength structural design
The fork frame is made of 4mm thickened steel plate and is equipped with a large-diameter lifting piston assembly to ensure that the equipment meets the rated load requirements from the structural level, taking into account both durability and reliability.
Intelligent follow-up support system
Real-time synchronization between the linkage mechanism of the support leg and the lifting action of the fork: during the lifting process of the fork, the support leg automatically locks the forward and backward movement path to avoid the risk of displacement caused by mistouch and improve the safety of operation.
