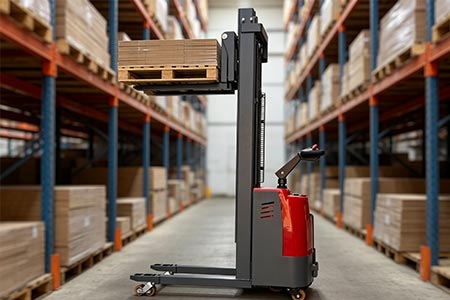

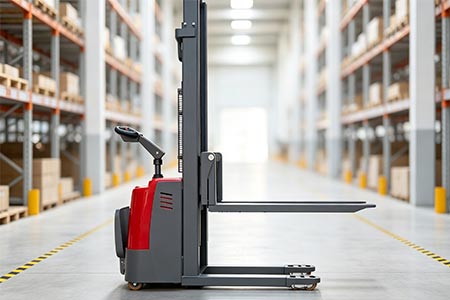

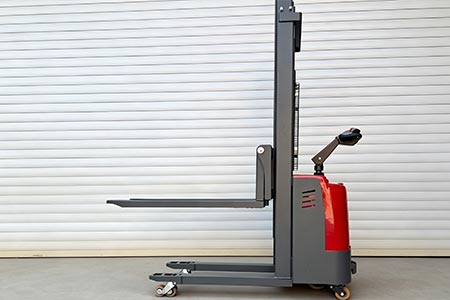

Stand-on Electric Double Pallet Stacker | Full Performance Parameter List

If you aim to boost material turnover efficiency, the double pallet stacker is worthy of your attention. This article introduces complete Stand-on Electric Double Pallet Stacker technical specifications, including load capacity, lifting height, overall dimensions and power endurance. Clear data helps buyers fully evaluate this Double Pallet Jack.

Standard Model Parameters

Rated Load Capacity

Upper fork rated load: 1000kg Lower fork rated load: 1500kg Max combined load: 2500kg Custom balanced versions available: 1t/1t or 1.5t/1.5t for upper & lower forks.

Lifting Height Options

2-stage standard mast: 2000mm, 2500mm, 3000mm 3-stage full free mast: 3500mm, 4000mm Dual forks lift synchronously with stable operation and minimal sway during high-level stacking.

Machine Dimensions & Aisle Requirements

Folded overall width: 760–860mm Minimum turning radius: 1450–1650mm Minimum working aisle width: 2100–2400mm, compatible with standard beam-type dense racking.

Travel & Lifting Speed

Empty travel speed: 6.0km/h Full load travel speed: 4.5km/h Empty lifting speed: 120mm/s Full load lifting speed: 90mm/s Turtle low-speed mode for narrow aisles and pedestrian-heavy zones.

Power & Electrical System

Standard voltage: 24V; optional upgraded 48V high-power drive system Drive motor: AC brushless motor Battery choices: 240Ah/320Ah lead-acid battery, 150–250Ah lithium iron phosphate battery Electronic protections: ramp anti-rollback, auto brake on handle release.

Fork Specifications

Standard fork length: 1070mm, 1150mm Outer fork width: 550mm / 685mm optional Non-standard customization: extended, narrowed or adjustable spread forks.

Gradeability

Max gradient empty load: 10% Max gradient full load: 5%, suitable for gentle ramps inside factories.

Advantages of Stand-on Electric Double Pallet Stacker

Reinforced dual fork assembly Forged double-layer forks with strengthened welding on stress points. Upper and lower forks bear loads independently without mutual interference. Widened wear-resistant side rollers reduce mast abrasion during long-term high-lift operation.

Stand-on operation platform Wide anti-slip standing platform with full surrounding safety guardrails. Integrated multi-function tiller centrally controls travel, lifting and emergency stop, easy for new operators.

Multi-layer electronic safety protection Electromagnetic auto-brake, automatic speed limit at high lift, overload protection, rear emergency stop switch. Built-in hydraulic burst valve prevents sudden fork drop if pipelines rupture.

Silent polyurethane wheel set Thickened polyurethane drive and load wheels deliver low noise and avoid scratches on epoxy floors, ideal for indoor warehouses.

Contact us to get operation videos and further details if you need the double pallet stacker to raise warehouse throughput.
