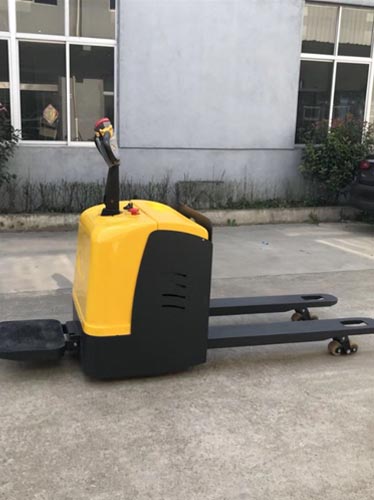

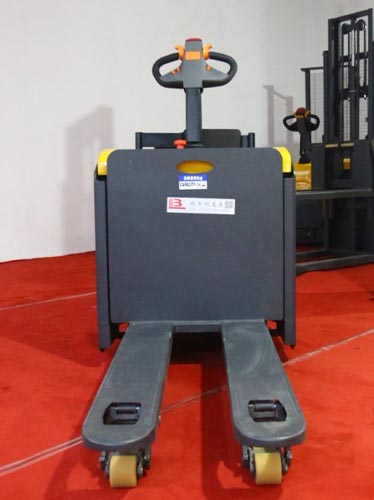

Stuck Steering Repair For Stand-on Full Electric Pallet Jack Step By Step

Many operators face jerky and stiff steering on stand-on pallet trucks, especially when carrying heavy loads. Most people mistakenly replace the whole steering assembly with high costs. In fact, the jamming issue mainly comes from four parts. If you are asking How To Fix Stiff Steering On Stand-on Electric Pallet Truck, follow this ordered inspection without expensive large component replacement.

Fault 1: Dust and dry friction on steering spindle (Most Common) Damaged dust cover lets sand get into the spindle. Grease dries up and causes rust, leading to high resistance and intermittent steering. Solution: Remove the dust cap, clear rust and dirt, then add lithium base grease. Turn the wheel repeatedly until steering moves smoothly without blockage.

Fault 2: Worn or broken upper and lower thrust bearings Lack of lubrication causes ball bearing damage. Steering feels light without load but stiff under heavy cargo. Solution: Lift up the truck and shake the steering wheel manually. Replace both thrust bearings if there is noise and jamming. Keep proper clearance to avoid tight clamping.

Fault 3: Over-tightened steering limit bolts If limit screws are screwed too deep, the wheel will lock at maximum swing, which is often mistaken for mechanical seizure. Solution: Loosen the limit screws outward properly to leave enough swing space and avoid hard locking.

Fault 4: Dirty and offset steering potentiometer Dust buildup and worn carbon brushes on the steering sensor cause unstable electric signals. The truck steers freely sometimes and suddenly gets stuck. Solution: Open the sensor cover and clean dust, adjust the mounting position. Replace the potentiometer if it is severely worn to stabilize steering signals.

You can resolve almost all heavy and jerky steering faults of the Stand-on Full Electric Pallet Jack by following these steps and greatly cut maintenance expenses. Feel free to reach out if you have more technical questions.
