Does Walk-behind Pallet Truck Occupy Large Floor Space? Actual Size Data

I recently visited a forklift factory to collect detailed equipment parameters. For most small and medium-sized warehouses, pallet trucks are essential tools to boost handling efficiency. Many operators wonder: Does Walk-behind Pallet Truck Occupy Large Floor Space? This Walk-behind Full Electric Pallet Truck features an ultra-compact layout, perfectly fitting warehouses with dense narrow racking and meeting high-efficiency operation demands.

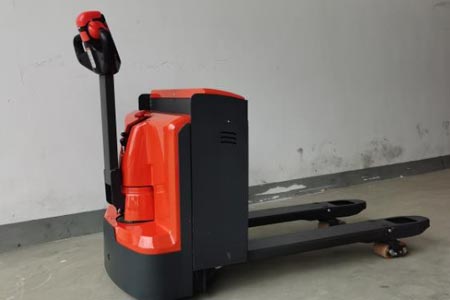

Below are the accurate on-site measured dimensions of this walk-behind pallet truck:

Narrow-body Model (For Small Shops With Narrow Aisles)

Overall length: 1530–1560mm Overall width: 540–550mm Floor space for vertical parking: 0.82–0.86㎡ (roughly the size of a small office desk)

Standard General Model (Mainstream Choice For Factory Procurement)

Overall length: 1628–1650mm Overall width: 685–686mm Floor space for vertical parking: 1.08–1.12㎡

You may not get an intuitive sense just from its standalone dimensions, but side-by-side comparison with other handling equipment proves that the Walk-behind Full Electric Pallet Truck is far more suitable for confined workspace.

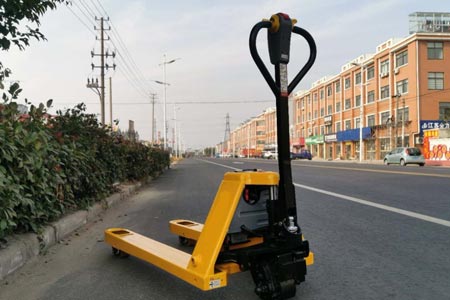

2/3 Ton Manual Hydraulic Pallet Truck

Dimensions: total length 1150mm, width 540/685mm, floor space 0.6–0.7㎡ Comparison: The walk-behind electric model only takes an extra 0.2–0.4㎡ of space. You gain labor-saving electric operation with minimal space sacrifice, ideal for warehouses planning to replace manual pallet trucks.

Walk-behind Pallet Truck

Narrow-body version ≈0.85㎡; standard version ≈1.1㎡, with no protruding operator platform or external counterweight.

Stand-on Full Electric Pallet Truck

Equipped with a standing platform, its overall length exceeds 1800mm and occupies over 1.5㎡ of floor space. Extra clearance is required for operators to get on and off, consuming 30% more aisle space in the same warehouse.

Internal Combustion / Counterbalance Forklift

Overall length over 2.5 meters, floor space exceeding 3㎡. Separate dedicated storage zones are almost impossible to arrange for retail stores and warehouses under 1000 square meters.

Further comparison notes: The drive motor and lithium battery of the Walk-behind Full Electric Pallet Truck are fully integrated into the rear main unit, with no outward-extending side platforms or bulky rear counterweights. The main unit width is strictly limited within 700mm. The frame is integrally bent and formed without redundant protruding components, resulting in extremely low horizontal space occupation.

In summary, all detailed equipment dimensions are listed above for your reference. You can select the matching model based on your warehouse aisle width. If you want labor-saving, high-efficiency handling equipment, the Walk-behind Full Electric Pallet Truck is an ideal option. Feel free to contact us for quotations if you are interested!
