sufficient stock 1.5 tons of semi electric stacker electric lift stack
Power stacker (1)
Power stacker (2)
Power stacker (3)
Power stacker (4)
Power stacker (5)
Power stacker (6)

sufficient stock 1.5 tons of semi electric stacker electric lift stack

The electric stacker has a weight range of 1t-2t and a lifting height of 1-5m. Pallet stacker has low voltage protection function, which can protect the battery under low voltage condition and prolong its service life.

Product Specification:
  • Price : -
  • Min. Order : 1
  • PaymentTerms : T/T、L/C、Western Union、Alipay
  • Lead Time : Shipment within 15 days of receipt of the full payment
See Price
  1. Video
  2. Description
  3. Reviews
  4. Download

Pallet stacker

New Newton (Taizhou) forklift truck co.,ltd is a global company specializing in the design, manufacture and service of electric storage equipment and forklifts. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. The market share and sales volume of major products have been the industry priority for many years, forming a strong core competitiveness and brand influence. With high-tech R&D center and provincial-level technology center, we have a strong global supplier team, a lean and efficient production support system and a sales and service-oriented molecular company to provide high-quality products for global users. and service.

Pallet stacker 1

Pallet stacker 2

Pallet stacker 3

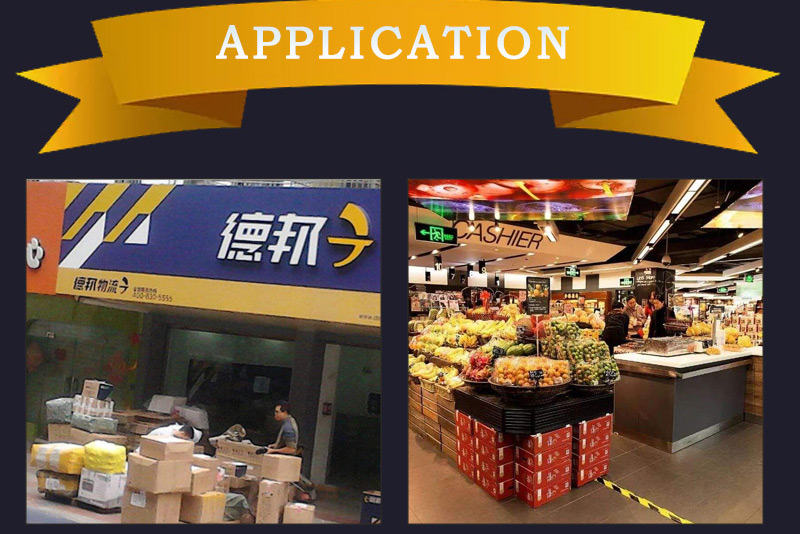

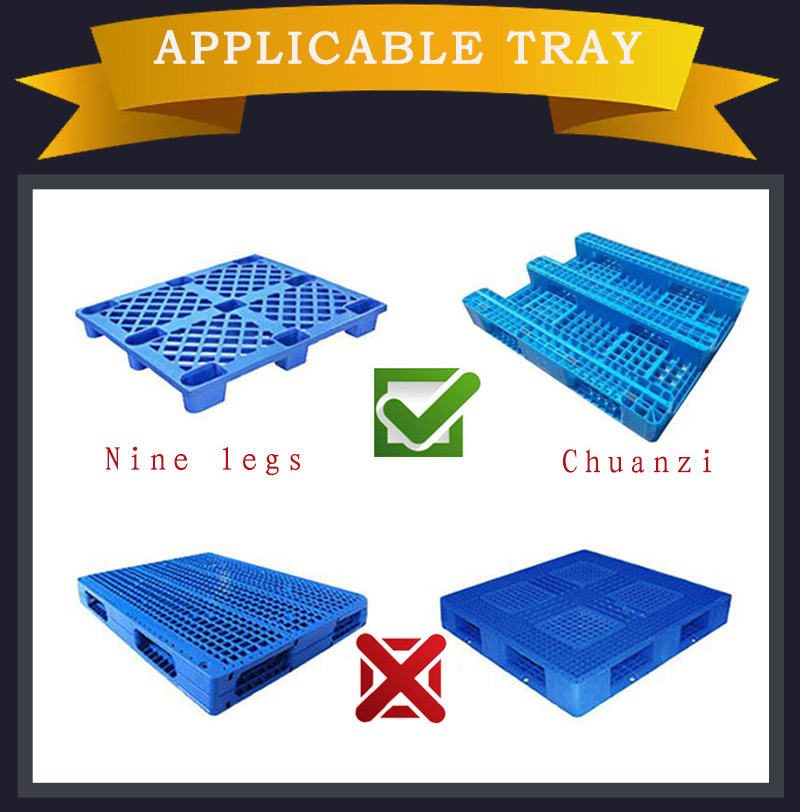

Electric stackers can be transported over long distances, double-sided pallets, and single-sided pallets.Pallet stacker is small in size, flexible in operation, easy to drive, economical and environmentally friendly, and is the first choice for enterprise units. The electric stacking vehicle has a weight range of 1t-2t and a lifting height of 1-5m.

Pallet stacker 4

model

A/LBBDD-15 (C)-30

Load (kg) 1500

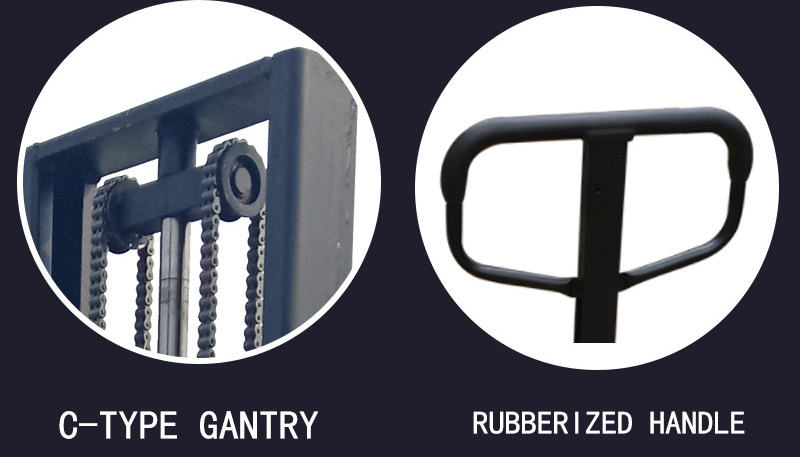

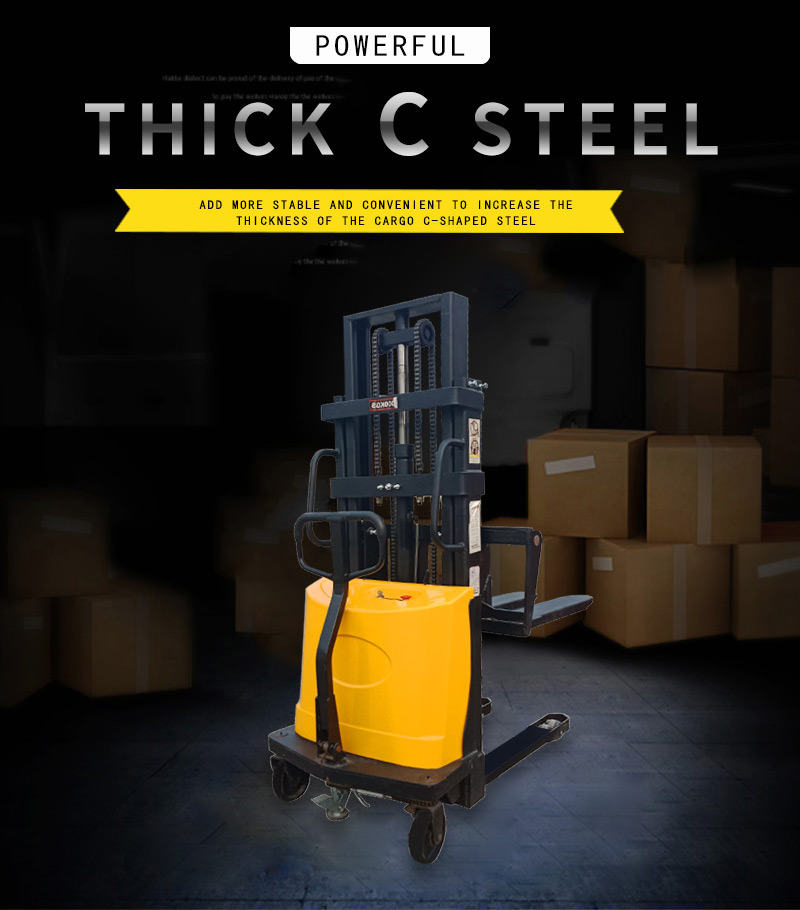

Form of steel C
Material

Q235

Drive mode/driving method Manual /walking
Load center distance (mm) 500
Axle load(before/after full load)kg 611/1319
Axle load(before/after no load)kg 325/105
number of front /rear wheels (X=drive) 2/2
Front track(mm)   Power stacker ,  Pallet stacker ,  electric stacker 720
Rear track(mm)    Power stacker ,  Pallet stacker ,  electric stacker 520
Lifting height (mm)  3000
Frame static height (mm) 2090
Maximum height of gantry operation  (mm) 3410
Load center distance (mm) 500
Fork minimum clearance from the ground(mm) 40
Turning radius (mm) 1425
Minimum channel requirement (mm) 2305
Total length(mm) 1735
Total body width (mm) 800
Fork width (mm)    Power stacker ,  Pallet stacker ,  electric stacker 320-1000
Fork size (mm)   Power stacker ,  Pallet stacker ,  electric stacker

1000*160*50

Lifting speed (full load / no load) (mm / s) 80/100
Falling speed (no load / full load)(mm/s) 120/150
Wheel       Power stacker ,  Pallet stacker ,  electric stacker  Nylon wheel
Wheel Size (Front / Rear) (mm) Φ180*50/φ80*70
Driving method  Power stacker ,  Pallet stacker ,  electric stacker walk
Drive mode   Power stacker ,  Pallet stacker ,  electric stacker Manual
Lifting method   Power stacker ,  Pallet stacker ,  electric stacker

Putt

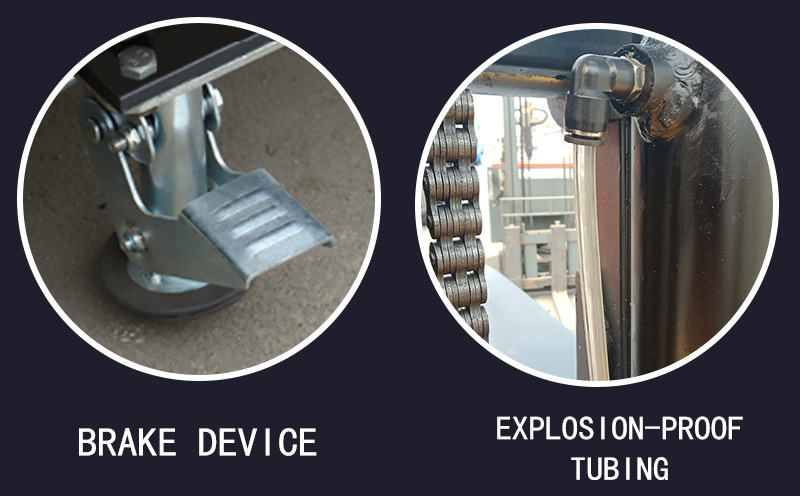

Braking method    Power stacker ,  Pallet stacker ,  electric stacker mechanical
Battery (V/AH)  Power stacker ,  Pallet stacker ,  electric stacker

12/80

Lift the motor   Power stacker ,  Pallet stacker ,  electric stacker 1.6KW
Hydraulic oil  Power stacker ,  Pallet stacker ,  electric stacker 46#
Total Weight(KG)   Power stacker ,  Pallet stacker ,  electric stacker ≈400
Battery size(mm)  Power stacker ,  Pallet stacker ,  electric stacker 360*70*250
Noise level  dB (A)   Power stacker ,  Pallet stacker ,  electric stacker <70

Pallet stacker 5

Pallet stacker 6

Pallet stacker 7

electric stacker

electric stacker 1

electric stacker 2

electric stacker 3

Electric stackers can be transported over long distances, double-sided pallets, and single-sided pallets.Pallet stacker is small in size, flexible in operation, easy to drive, economical and environmentally friendly, and is the first choice for enterprise units. The electric stacking vehicle has a weight range of 1t-2t and a lifting height of 1-5m.

electric stacker 4

electric stacker 5

electric stacker 6

electric stacker 7



FAQ

1. How long is the warranty time?

    10000 working hours or 12 month, whichever comes first.

2. How can I get the after-sales service?

    The global service network is still under construction, but if you have any questions or need

    professional support, you can contact us. We will try our best to solve your problem within 24

    hours and arrange for the delivery of spare parts within 48 hours.

 3. How about your warranty item?

    We can support you with original spare parts, and email or telephone assistance in the following

    days. If necessary, our experience engineer can go abroad to your place for technical support.

  4. How about your product quality?

    All our products are form the original manufactures and the quality is 100% guaranteed.

    5. Can I be your agent in my country?

    It’s OK if the order quantity is appropriate. We looks forward to long-term cooperation.

    6. What information should I let you know if I want to get a quotation?

    Lifting capacity Size Load Features Would be better if you have drawings of your piant.

   7. What about the lead time for mass production?

    Hoestly, it depends on the order quantity and specification and the season you place the order. Within 30 days will be ok. Generally speaking, we suggest you start inquiry two months before the date you would like to get the products at your country.
