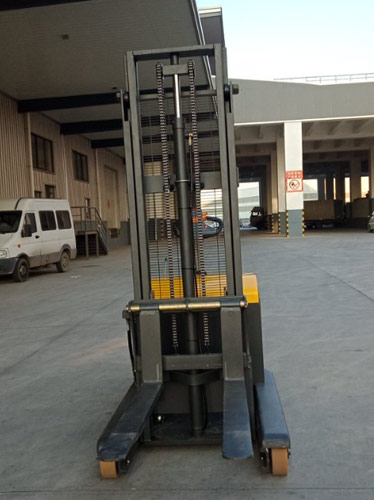

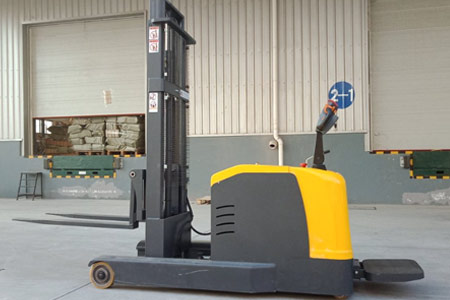

1 Ton Stand‑on Reach Stacker | Full‑Electric Pallet Stacking Truck

For modern warehouse upgrading projects, few forklift models fit narrow‑aisle and compact storage spaces. For warehouses with high‑density racking, the 1 ton stand‑on electric stacking truck delivers excellent cost performance. What advantages does this forklift have? Can it satisfy warehouse upgrading demands? You will find answers in this article.

Main Specifications for 1 Ton Model

Rated load capacity: 1000kg, low load derating at high lifting height with stable bearing performance

Lifting height: Optional range from 1.6m to 6m; 2.5m, 3m, 3.5m and 4.5m are standard spot specifications, customized higher lifting height is available

Maximum mast reach stroke: 500mm, compatible with standard pallets and irregular deep pallets

Minimum working aisle: 1.8–2m, far better than counterbalance stackers

Travel speed: Max 6km/h for both loaded and unloaded status, smooth speed regulation for safe and efficient warehouse transportation

Power system: 24V power supply, optional 240Ah–280Ah batteries; lead‑acid and lithium iron phosphate two options

Motor configuration: 1.6kW drive motor, 3.3kW lifting motor, sufficient power for travelling and lifting

Braking mode: Electromagnetic fail‑safe brake + anti‑rollback brake on ramps, automatic locking upon shutdown to prevent sliding risks

Core Product Advantages

Compact body to improve warehouse storage capacity Compared with counterbalance stackers, it removes rear counterweight and picks goods via extendable mast. It features small turning radius. Dense high racks can be built without widening aisles or reconstructing racks, effectively increasing storage volume, ideal for old factories and small warehouse renovation.

Extendable and tiltable mast for better pallet compatibility 500mm reach stroke together with mast angle adjustment brings higher tolerance for pallet access. Pallets can be loaded and unloaded without precise alignment. The mast shakes slightly during high‑level operation, lowering risks of cargo tilting and falling, suitable for regular stacking on multi‑layer racks.

Stable electronic control with multiple safety protections Equipped with mature electronic control system and electronic steering. Movements including reaching, lifting and travelling respond smoothly without impact during start and stop. It is fitted with emergency stop switch, overload protection, height limit and reverse travel protection to reduce safety hazards caused by misoperation. The AC drive motor enjoys good heat dissipation, less overheating during long‑hour operation and lower failure rate.

Two battery options for different working intensities Lead‑acid version features low procurement cost and simple maintenance, suitable for single‑shift daily stacking work. Lithium iron phosphate batteries are maintenance‑free, support fast charging and have longer cycle life. They fit two‑shift high‑frequency operations, humid environments and cold storage scenarios, with lower long‑term operation costs.

In summary, if you are unsure which specification of stand‑on reach full‑electric stacker fits your warehouse, provide aisle width, rack height and daily working hours. We will match suitable configurations for you.
