CBD Series Stand-on Pallet Jack Overall Size & Fork Dimension Parameters

Experienced warehouse managers are familiar with CBD series electric pallet trucks. Equipped with stand-on platform, these workhorses handle frequent medium & long-distance cargo transfer inside factories. This article lists complete pallet trolley dimensions of CBD series stand-on electric pallet trucks for procurement comparison.

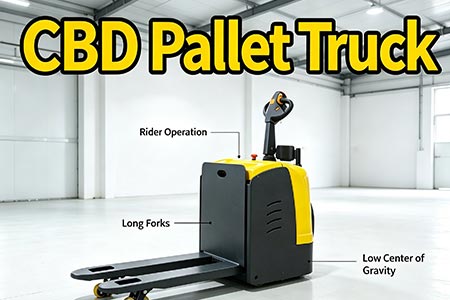

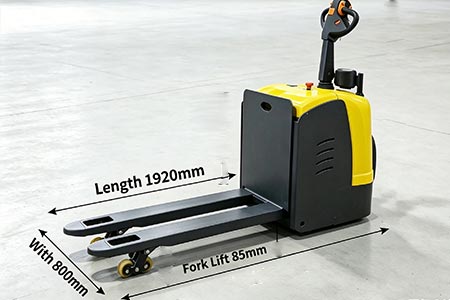

Overall Dimensions

Overall Length L1: 1920mm Uniform 1920mm length across all models for easier warehouse passage layout planning.

Max Overall Width B1: 800mm Fixed compact 800mm frame balances flexible maneuverability and stable counterweight.

Max height (tiller upright): 1440mm Reference this value when designing doorways and freight elevators to avoid tiller collision.

Minimum fork ground clearance: 85mm Suitable for flat cement and epoxy floors. Transition ramps are required for large thresholds or trenches.

Fork Specifications

Standard fork size: 551851150mm; optional extended 1220mm forks Fixed outer fork width: 540mm / 685mm

540mm fits standard domestic 1200×1000 pallets

685mm matches European standard pallets for domestic & export orders.

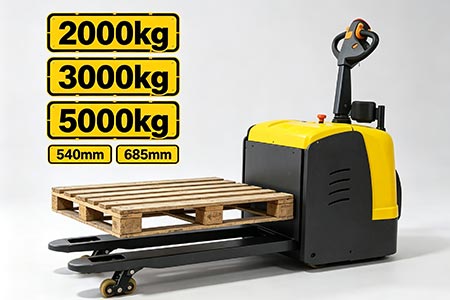

Rated Load Models

CBD20: 2000kg capacity CBD25: 2500kg capacity CBD30: 3000kg capacity CBD40: 4000kg capacity CBD50: 5000kg capacity

Uniform load center: 600mm Total machine weight (including battery): 790kg (same for all load variants) Wheel base: 1300mm Standard silent PU wheels, 4/2+1X wheel layout, wear-resistant and epoxy-floor friendly.

Passage Parameters

Turning radius: 1730mm Minimum working aisle width (for 0.8m×1.2m pallet lengthwise): 2120mm / 2170mm Extra safety clearance is recommended to prevent rack and cargo collision during turning.

Practical Dimension Selection Tips

Measure elevator and doorway height; ensure clear height over 1440mm to avoid tiller impact.

Choose 540/685mm fork spread according to your main pallets; select 685mm for export orders.

Keep warehouse aisle wider than 2170mm; contact us for narrow-body customization for tight spaces.

Select optional 1220mm extended forks for extra-long cargo.

Install transition ramps if thresholds are close to 85mm to prevent fork scraping.

All dimension data of CBD series Stand-on Electric Pallet Truck is sorted above. Contact us to get the free digital catalog for further inquiries.
