Stand-on Full Electric Stacker In Stock | 2 Ton Stand-on Stacker

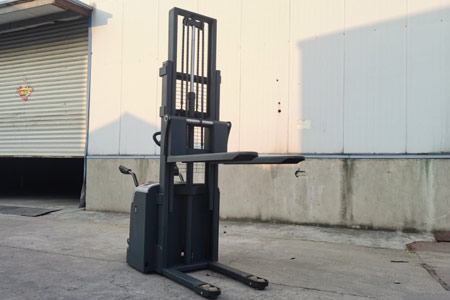

The 2 ton stand-on stacker (Model CDD20) is a mainstream forklift model. However, it cannot fit all warehouse scenarios. You need to check detailed specifications before selection. This article lists standard parameters. Non-standard customization is available if standard specs fail to meet demands.

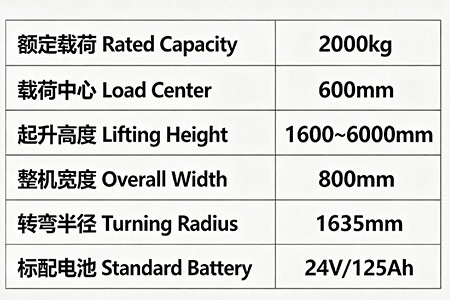

Rated load capacity: 2000kg Load center distance: 600mm

Lifting height (optional): 1600/2500/3000/3300/3500/4000/4500/5000/6000mm

Mast closed height: 2080/2250/2350/2650mm (varies with lifting height)

Maximum working height: 2090/3060/3560/3860/4050/4650/5150/5650/6560mm

Self-weight: 625–915kg (depends on mast height)

Minimum lowered fork height: 90mm Maximum overall width: 800mm

Fork dimension: 60×142×1150mm (1070mm optional)

Required aisle width for 1.2m pallet (fork direction): 2509mm

Turning radius: 1635mm Fork outer width adjustment range: 300–695mm

Travel speed (loaded/unloaded): 4.3km/h / 4.6km/h

Lifting speed (loaded/unloaded): 0.09m/s / 0.16m/s

Lowering speed (loaded/unloaded): 0.19m/s / 0.11m/s

Standard battery: 24V/125Ah maintenance-free lead-acid battery, lithium battery upgrade supported

Core advantages of this stacker:

Stand-on Operation for Long Continuous Shifts

It reduces operator fatigue during long-distance transportation inside warehouses, suitable for regular stock replenishment and peak inbound & outbound operations.

Compact Body for Standard Warehouse Aisles

Overall width 800mm, turning radius 1635mm. It only requires a 2509mm working aisle for standard 1.2m pallets. No rack reconstruction is required for existing warehouses.

Diverse Lifting Heights for Multi-Level Racking

Lifting height options range from 1.6m to 6m. It fits low-level stock preparation and high-rise rack stacking, adapting to various warehouse layouts.

Multiple Safety Protections for Stable Operation

Equipped with overload protection, emergency stop switch, ramp anti-rollback and mast lowering speed limiter. Smooth travelling and lifting movements reduce risks of cargo tipping.

Two Optional Power Solutions

Standard maintenance-free lead-acid battery suits single-shift daily work. Lithium battery upgrade is recommended for high-frequency two-shift operations, supporting fast charging and lowering long-term maintenance costs.

We have sufficient stand-on full electric stacker in stock. Contact us for detailed quotations if you are interested. As a direct manufacturer with complete qualifications, we provide reliable service.
