Which Ton Straddle Electric Stacker? 1t/1.5t/2t Full Comparison

Business owners purchase stackers to boost efficiency and cut costs, yet mismatched load capacity defeats both goals. Load rating selection is a critical procurement decision. Many buyers ask: Which Ton Capacity Straddle Electric Stacker To Choose? We break down all specifications and application scenarios below.

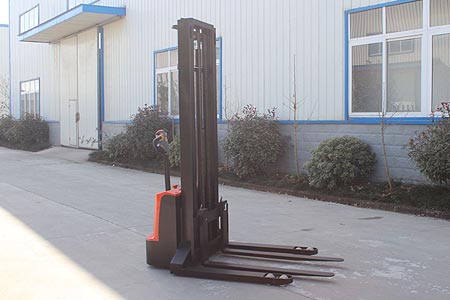

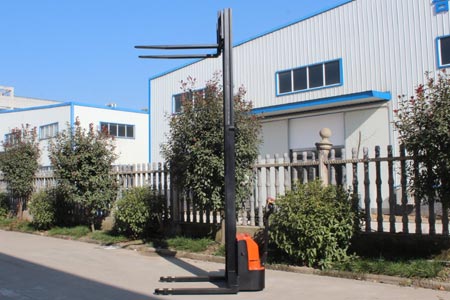

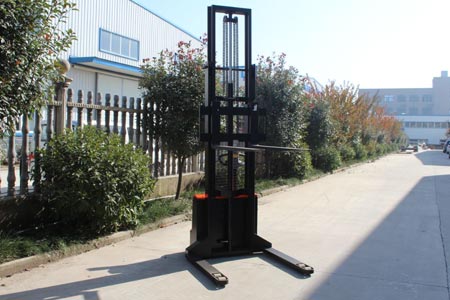

Higher tonnage does not always equal better value; the best choice matches your actual daily workload. For high-frequency heavy-duty stacking, opt for the 2-ton lithium battery model with larger single-load capacity and longer runtime. Here is the detailed breakdown for 1t, 1.5t and 2t Walk-behind Straddle Electric Stacker:

1 Ton Entry-level Model

Lightweight thin steel frame, mast and straddle legs with low-power motor and compact hydraulic cylinder. Light curb weight and tiny turning radius fit 1.6m narrow aisles. Lifting height ranges from 1.6m to 3m, with effective load dropping to only 600kg at full 3m lift (significant load attenuation).

Ideal Scenarios: E-commerce small parcel warehouses, garment storage, daily chemical retail, stationery accessory storage; single pallet load consistently under 500kg with moderate daily turnover.

Pros & Cons: Low factory price, low lithium battery power consumption, minimal charging cost and small parking footprint. Limited maximum load; long-term overloading bends masts and damages oil seals, raising frequent repair costs. Perfect for individual operators and small retail stores with intermittent stocking tasks.

1.5 Ton Balanced Standard Model

The most popular mainstream model with fully reinforced body, thickened straddle legs, medium-power drive & lifting motors and enlarged hydraulic pipelines. It maintains stable 1-ton load at 3m lifting height with minor load loss, compatible with standard single & double-entry pallets.

Ideal Scenarios: Supermarket back storage, grain & food warehouses, small hardware factories, courier sorting centers; single pallet load between 700kg–1200kg with daily frequent stacking.

Pros & Cons: Moderate purchase price, medium energy consumption, widely interchangeable cheap spare parts. Handles both light and regular heavy goods, covering all warehouse stacking needs with one unit, delivering the highest overall cost performance. Top pick for most small & medium factories.

2 Ton Heavy-duty Model

Fully welded thick steel construction, widened reinforced load-bearing straddle legs, high-power motors and high-flow hydraulic system paired with heavy-duty chains and wear-resistant drive wheels. Hardly any load attenuation under 2.5m lifting height, stable body during full-load high-level stacking.

Ideal Scenarios: Hardware casting storage, barreled chemical raw materials, full pallet construction materials, heavy packaged goods; daily pallet weight over 1.2 tons with continuous heavy stacking shifts.

Pros & Cons: Maximum load capacity, excellent durability and low failure rate under long-term heavy work. Heavier overall weight, much higher purchase price and increased power draw during empty transit, requiring larger parking space. Only cost-effective for warehouses handling heavy goods. Buying this model for light cargo wastes excess performance and inflates equipment & electricity expenses.

Refer to this guide when selecting your Walk-behind Straddle Electric Stacker. If you are unsure which capacity fits your warehouse operation, send your warehouse layout and daily cargo weight to us. We provide one-on-one capacity selection advice to help you pick the most suitable stacker for cost reduction and higher productivity.
